Residential IP Intercom Monitor with Handset (White)

Brand logo
SKU INTIPMONDWH2
Brand logo

Residential IP Intercom Monitor with Handset (White)

SKU INTIPMONDWH2

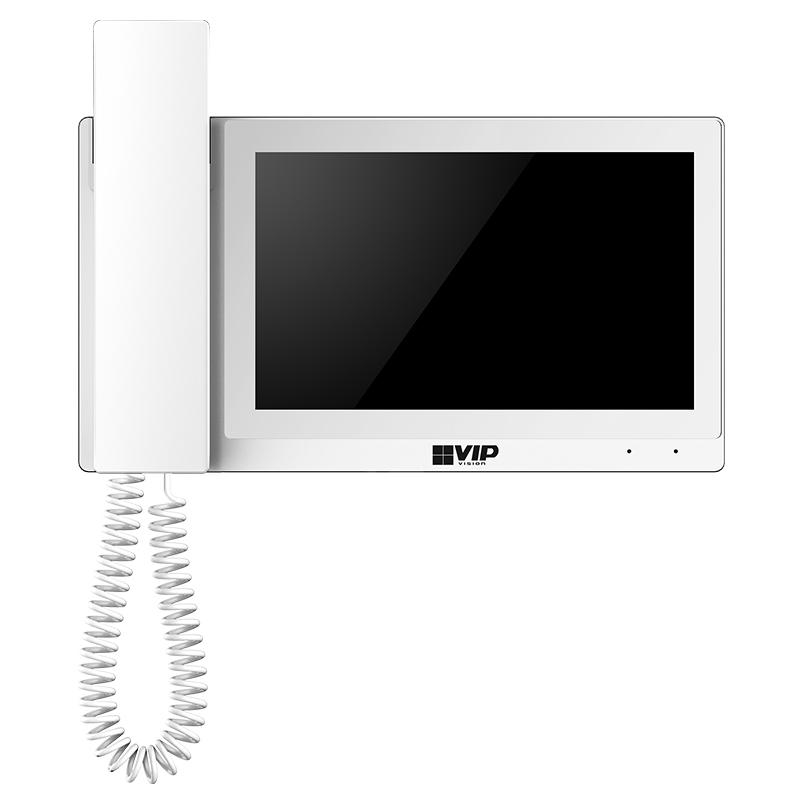

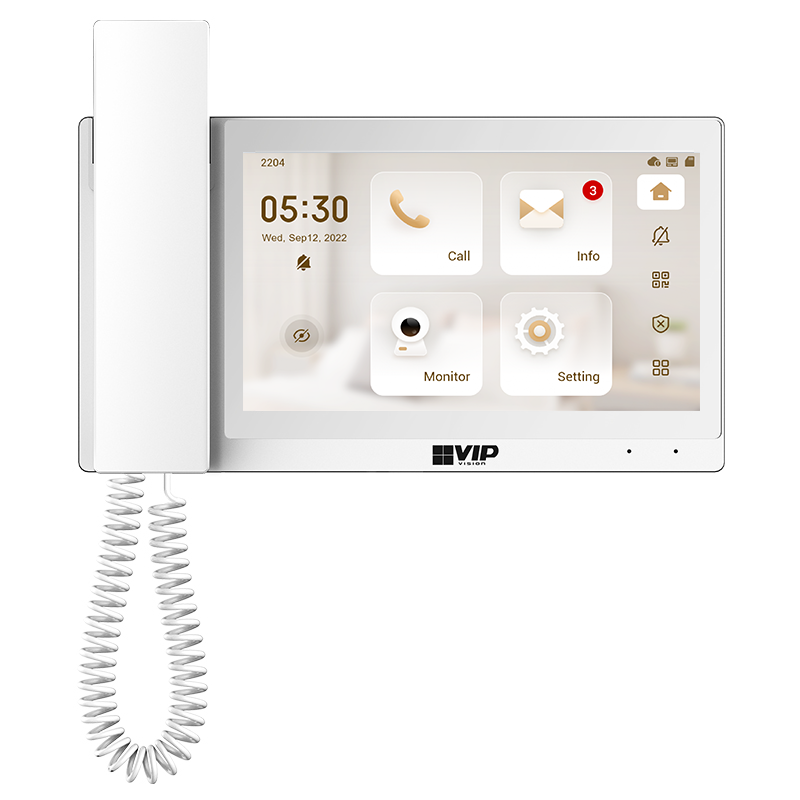

The INTIPMONDWH is a touch screen indoor monitor that integrates into IP video intercom solutions. The monitor communicates with the apartment door station via handset, and features live-view of the door station camera.

Product features:
• 1024 x 600 7" TFT capacitive touch screen
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Door station & IP camera live viewing
• Alarm system integration
• MicroSD storage (up to 32GB)
• Wall-mounted handset design

*Connection via LAN only.
*Not compatible with INTIPRDSDB or other door stations that do not have SIP firmware available.

Suggested Products

Suggested product image
Desktop Mount Bracket for Handset Intercom Monitors
INTIPMONDH-B
Suggested product image
Apartment Series IP Intercom Management Server
INTIPSIPSRV
Suggested product image
4-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW4H

Links and Downloads

VIP Vision INTIPMONDWH2/BH2 Datasheet (PDF) 1.62 MB
VIP Vision Residential Series Intercoms System Map (PDF) 0.19 MB
VIP Vision SIP Intercom Installation Manual (SIP 4.5 Firmware) - Q3 2022 (PDF) 4.94 MB
SIP_Intercom_Firmware_TypeK_20220111 17.09 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Monitor
Main Processor
Embedded Microprocessor
Video Compression
H.264
Audio Input
Omni-directional Microphone / Handset
Audio Output
Embedded loudspeaker / Handset
Bidirectional Talk
Support
Display Size
7” Colour TFT LCD (1024 x 600) Capacitive Touchscreen
Display Resolution
1024 x 600
Alarm Support
6 Input / 1 Output
Operational Input
Capacitive Touchscreen / Mechanical Keys
Internal Capacity
MicroSD Slot, up to 32GB
Ethernet
10 / 100Mbps Self-adaptive
Network Protocol
SIP
Environmental
Operating Temperature
-10 ~ +55°C / 10 ~ 90%RH (max.)
Installation
Surface Mountable. Optional bracket (INTIPMONDH-B) for desktop mount
Power Input
12VDC, PoE (802.3af)
Power Consumption
Standby < 3.5W / Operation < 5W

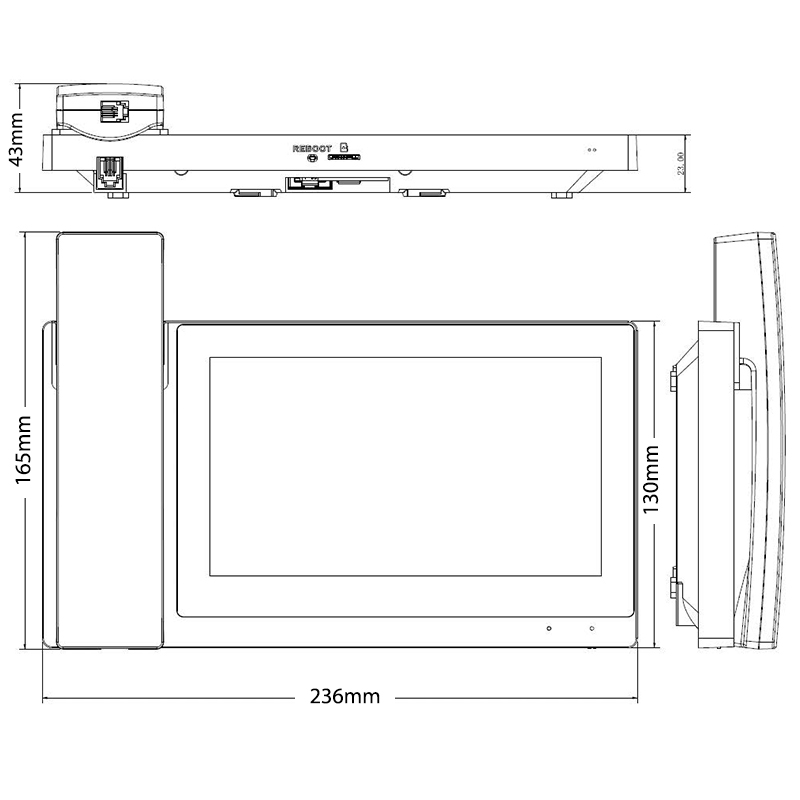

Dimensions
236mm x 166mm x 42mm
Weight
0.90kg
Other
Series
D Series
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
160 mm
Height
160 mm
Depth
130 mm
Weight
0.85 kg
