Residential IP Intercom Monitor with Handset (White)

Brand logo
SKU INTIPMONDWH
Brand logo

Residential IP Intercom Monitor with Handset (White)

SKU INTIPMONDWH

Stock may be limited. Please contact us for availability or for an alternative item.

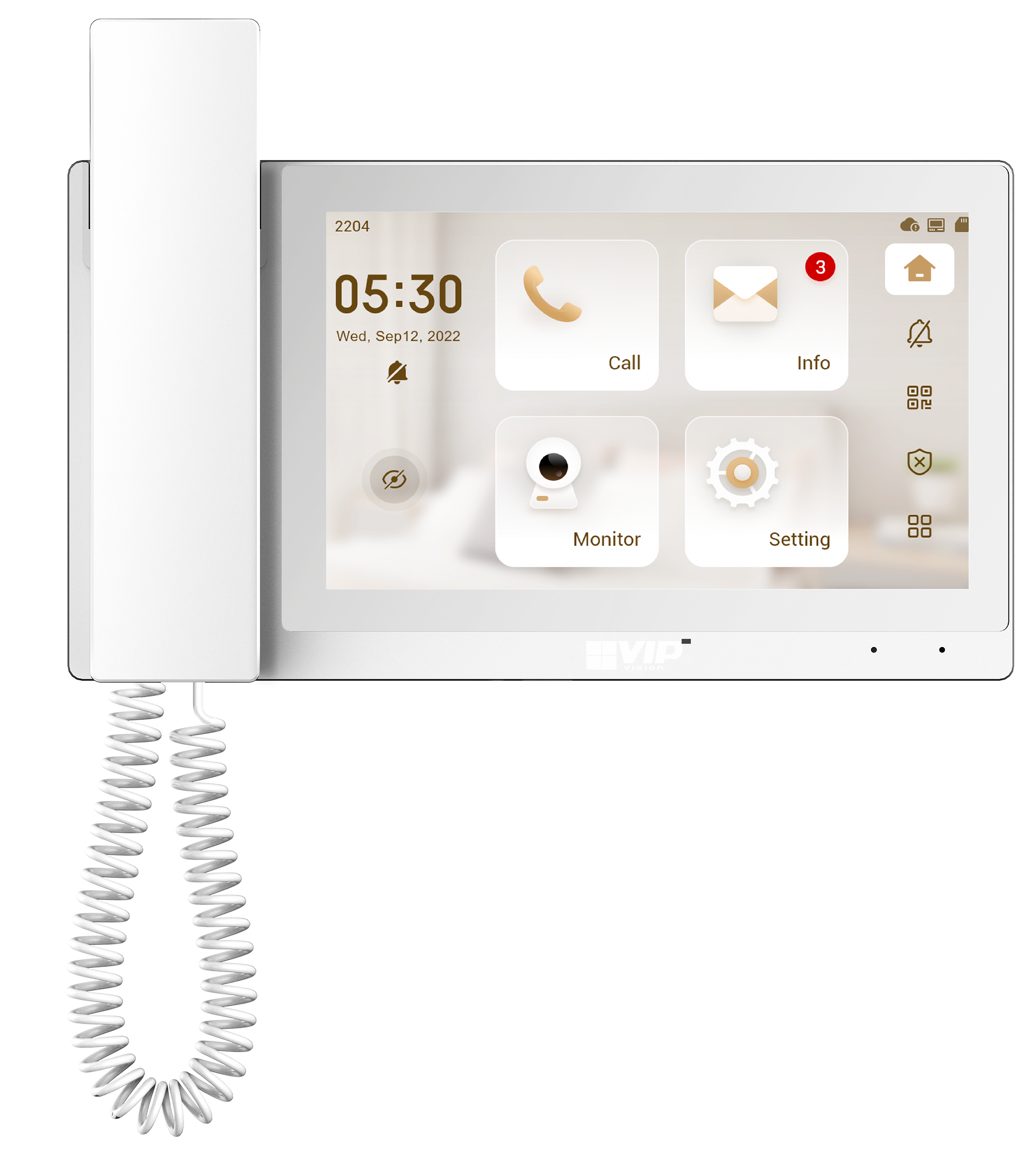

The INTIPMONDWH is a touch screen indoor monitor that integrates into IP video intercom solutions. The monitor communicates with the apartment door station via handset, and features live-view of the door station camera.

Product features:
• 1024 x 600 7" TFT capacitive touch screen
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Door station & IP camera live viewing
• Alarm system integration
• MicroSD storage (up to 32GB)
• Wall-mounted handset design

*Connection via LAN only.
*Requires an IP intercom Management Server (INTIPSIPSRV) for SIP firmware installations.
*Not compatible with INTIPRDSDB or other door stations that do not have SIP firmware available.

Suggested Products

Suggested product image
Desktop Mount Bracket for Handset Intercom Monitors
INTIPMONDH-B
Suggested product image
Apartment Series IP Intercom Management Server
INTIPSIPSRV
Suggested product image
4-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW4H

Links and Downloads

VIP Vision INTIPMONDWH / INTIPMONDBH2 Datasheet (PDF) 0.41 MB
VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Monitor
Main Processor
Embedded Microprocessor
Video Compression
H.264
Audio Input
Omni-directional Microphone / Handset
Audio Output
Embedded loudspeaker / Handset
Bidirectional Talk
Support
Display Size
7” Colour TFT LCD (1024 x 600) Capacitive Touchscreen
Display Resolution
1024 x 600
Alarm Support
6 Input / 1 Output
Operational Input
Capacitive Touchscreen / Mechanical Keys
Internal Capacity
MicroSD Slot, up to 32GB
Ethernet
10 / 100Mbps Self-adaptive
Network Protocol
SIP
Environmental
Operating Temperature
-10 ~ +55°C / 10 ~ 90%RH (max.)
Installation
Surface Mountable. Optional bracket (INTIPMONDH-B) for desktop mount
Power Input
12VDC, PoE (802.3af)
Power Consumption
Standby < 3.5W / Operation < 5W
Dimensions
236mm x 166mm x 42mm
Weight
0.90kg
Other
Series
D Series
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
280 mm
Height
95 mm
Depth
200 mm
Weight
0.85 kg
