2-Wire Residential Series IP Intercom Monitor (White)

Brand logo
SKU INTIPMON2W2
Brand logo

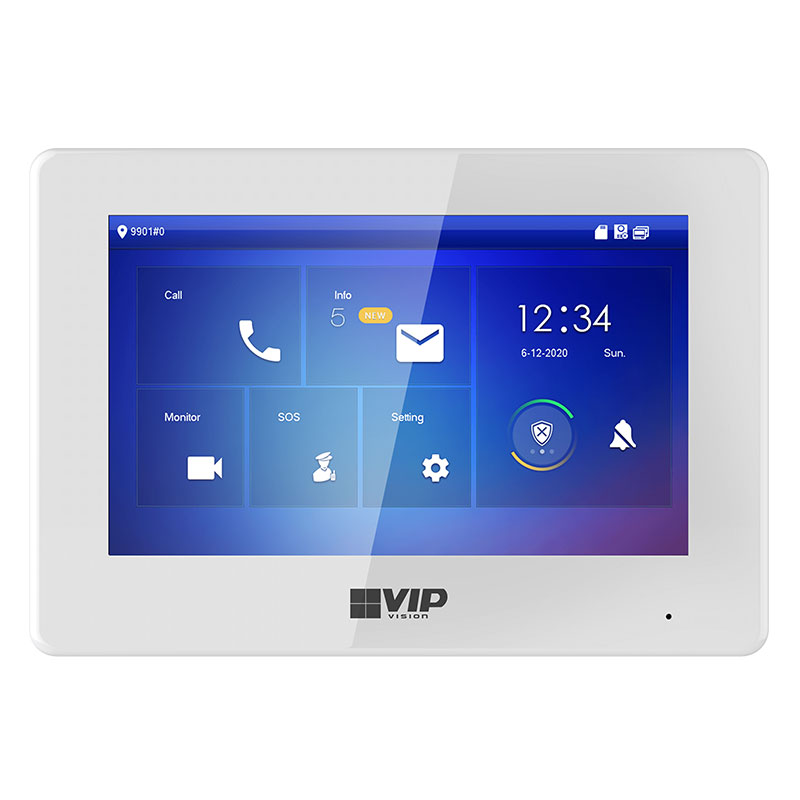

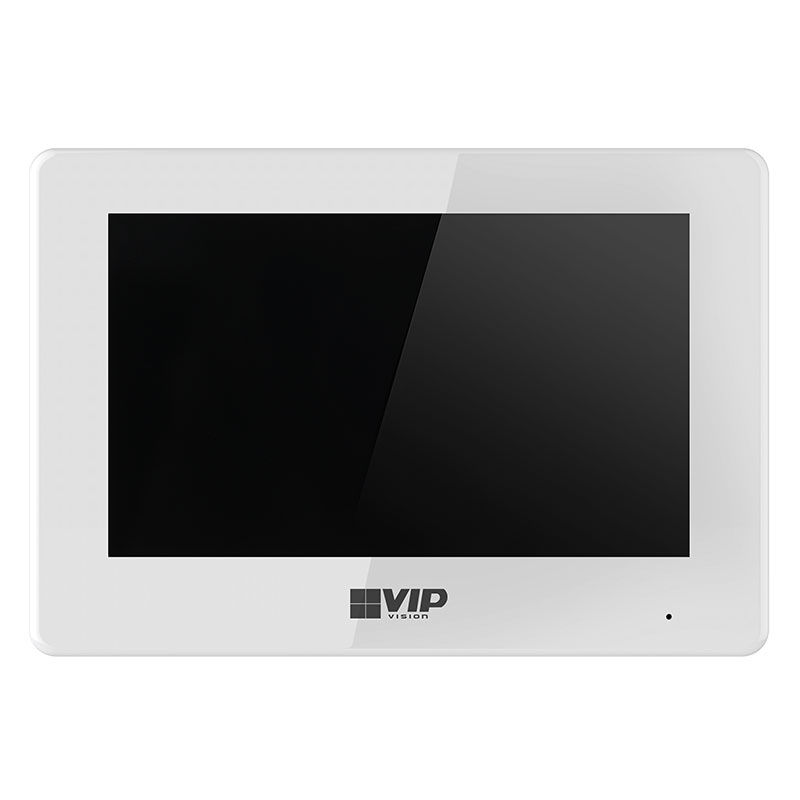

2-Wire Residential Series IP Intercom Monitor (White)

SKU INTIPMON2W2

The INTIPMON2W2 touchscreen indoor monitor is the perfect upgrade solution to your old intercom. Upgrade and experience a multitude of modern intercom features, all using your existing two-wire infrastructure.

Product features:
• Slim 7" touchscreen indoor intercom monitor
• Connect to door stations and monitors via 2-wire
• MicroSD card slot (up to 64GB) for edge recording
• Dual-way bidirectional talk with built in microphone
• Record and snapshot video calls/messages
• All calls and messages logged
• Remote view, unlock and 2-way talk via iOS & Android devices
• Built-in 12V power output to power devices

*This product requires the INTIPPOE2W2.

Suggested Products

Suggested product image
Cascading 2-Wire Intercom Switch
INTIPPOE2W2

Links and Downloads

VIP Vision INTIPMON2W2 Datasheet (PDF) 0.60 MB

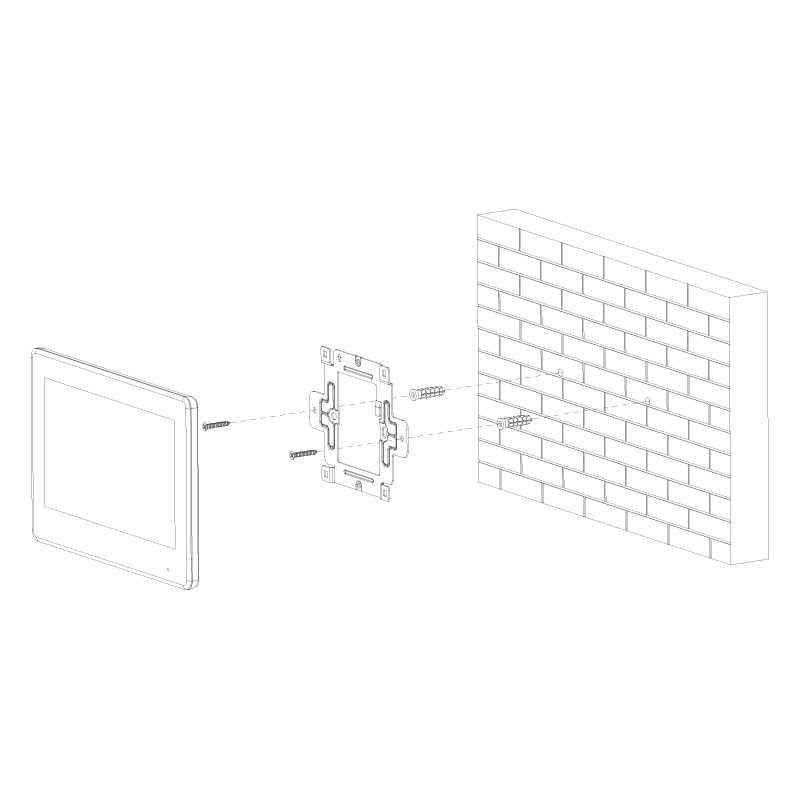

VIP Vision INTIPMON2W2 Mounting Guide (PDF) 1.14 MB
VIP Vision SIP Intercom Installation Manual (SIP 4.5 Firmware) - Q3 2022 (PDF) 4.94 MB
SIP_Intercom_Firmware_TypeN_20210715 19.16 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Monitor
Main Processor
Embedded Microprocessor / Embedded Linux OS
Video Compression
-
Audio Input
Omni-directional Microphone
Audio Output
Embedded Loudspeaker
Bidirectional Talk
Support
Display Size
7" Colour TFT LCD
Display Resolution
1024 x 600
Alarm Support
Yes; 6 Input channels / 1 output channel / 1 x RS485
Operational Input
Capacitive Touchscreen
Internal Capacity
MicroSD Slot, up to 64GB
Ethernet
10M/100Mbps adaptive
Network Protocol
SIP / IPv4 / RTSP / RTP / TCP / UDP
Environmental
Operating Temperature
-10 ~ +55°C / 10 ~ 90%RH (max.)
Installation
Surface wall mounting bracket & kit
Power Input
Requires INTIPPOE2W2
Power Consumption
Standby < 2W / Operation < 6W

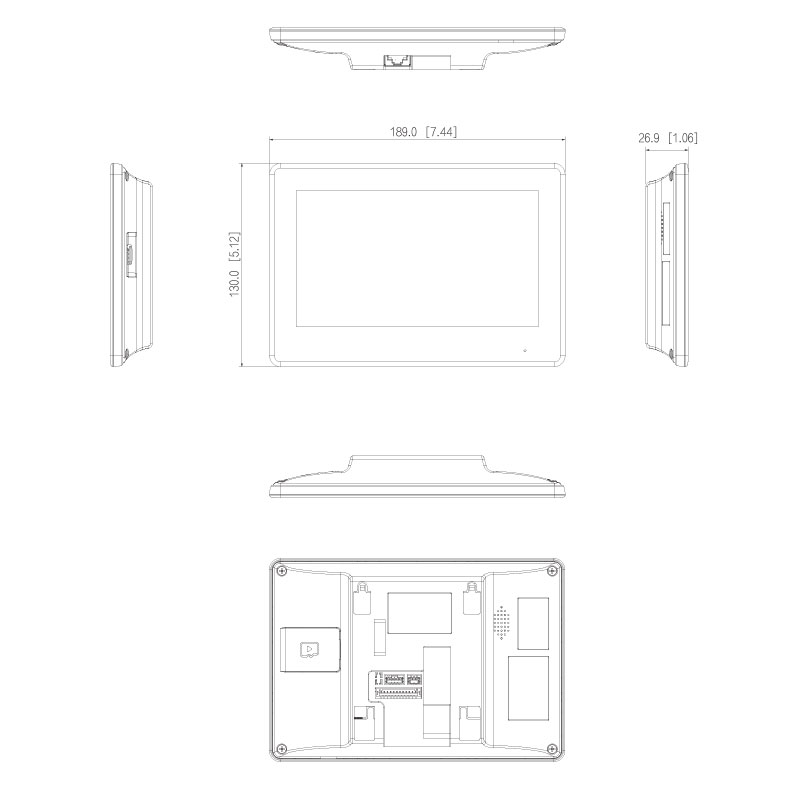

Dimensions
189mm x 130mm x 27mm
Weight
0.38kg
Other
Power Output
1 (12V/100mA)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
72 mm
Height
190 mm
Depth
258 mm
Weight
1.00 kg
