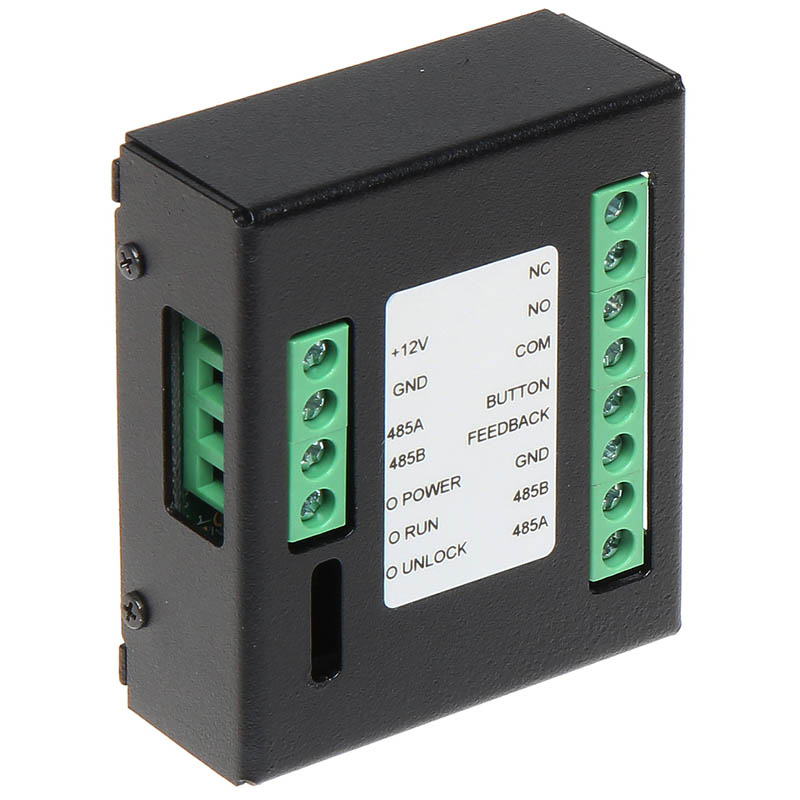

Door Unlock Expander Module

SKU INTIPDM

Door Unlock Expander Module

SKU INTIPDM

The INTIPDM Door Unlock Expander Module enables an intercom monitor to control a second door or gate. Built-in relay output allows the control of any NO / NC device, which can be activated via intercom monitor or smartphone.

The INTIPDM is compatible with all VIP Vision Intercoms.

Product features:
• RS485 communication with door stations
• NO / NC relay receivers for door control
• Input for door status monitoring
• Input for external door control
• Powered by 12VDC
• Operating power consumption <1W

Suggested Products

Mortise Electric Door Strike
ACLOC100

Residential IP Intercom Monitor with WiFi (Black)
INTIPMONDB

Residential IP Intercom Door Station with WiFi
INTIPRDSDB

Complete Residential IP Intercom Kit with WiFi
INTIPRKITD

Links and Downloads

INTIPDB Product Brochure (PDF) 0.44 MB

VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB

VIP Vision SIP Intercom Installation Manual (SIP 4.5 Firmware) - Q3 2022 (PDF) 4.94 MB

CE/ RCM Certificate

RoHS Certificate

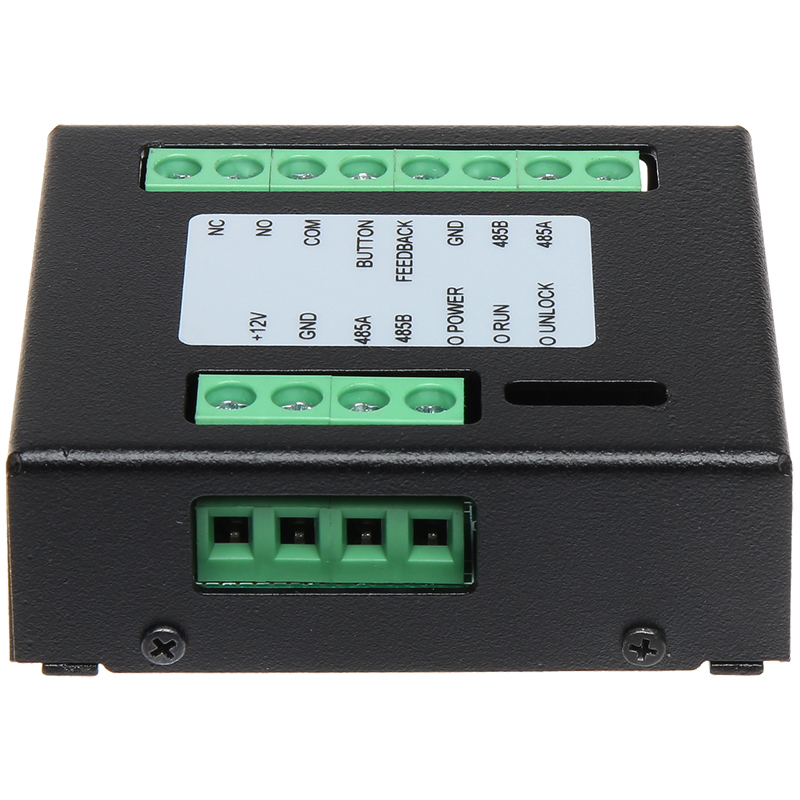

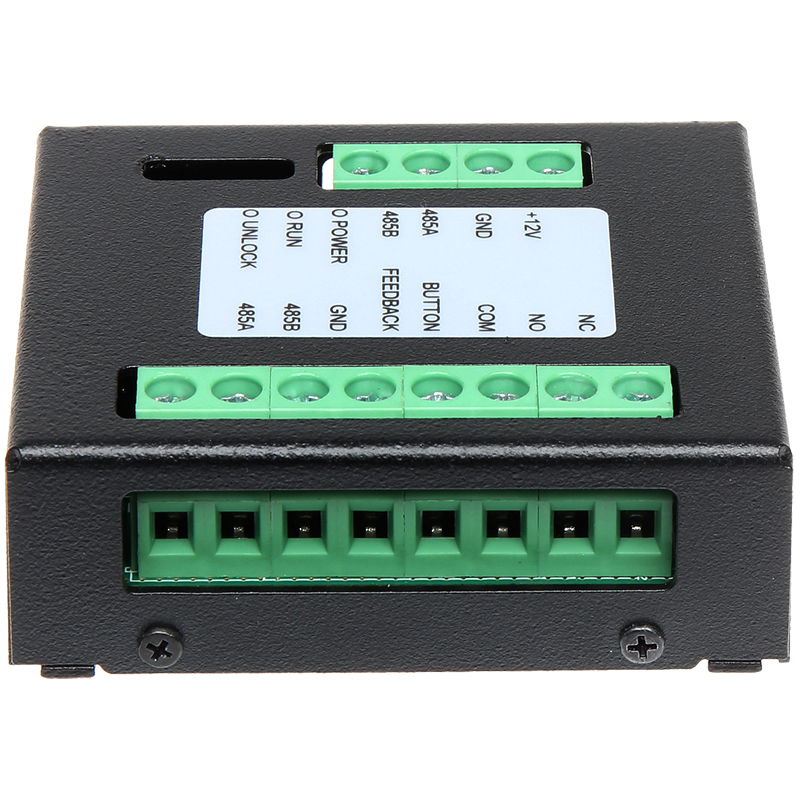

Specifications

4-Pin Cable A

01-Black

GND

02-Orange

Alarm Input

03-Brown

Door sensor response

04-Yellow

Open button

3-Pin Cable (Lock Control)

05-Grey

06-Purple

07-Blue

Public port

4-Pin Cable B

08-Green

Door station, cascading 485+

09-White

Door station, cascading 485-

10-Black

Power ground

11-Red

+12V

2-Pin Cable

12-Pink

Card reader 485+

13-Yellowgreen

Card reader 485-

Warranty (Years)

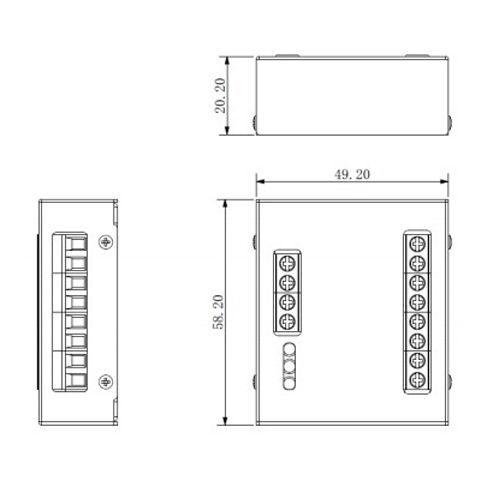

Shipping Weight and Dimensions

Includes product packaging

Width

105 mm

Height

45 mm

Depth

90 mm

Weight

0.13 kg
