Residential 4 Button IP Intercom Door Station

Brand logo
SKU INTIPDDS4
Brand logo

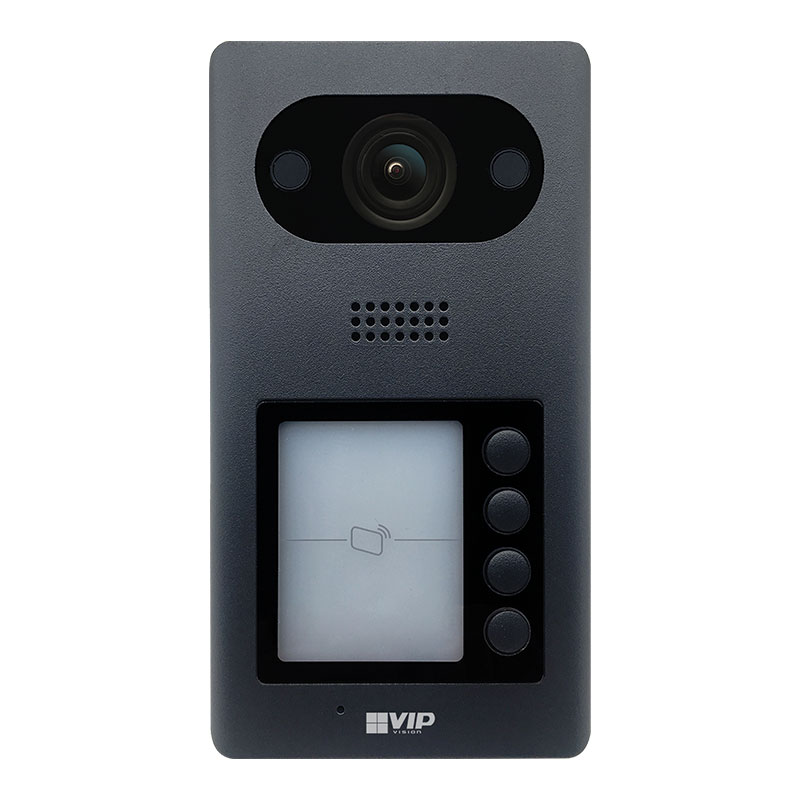

Residential 4 Button IP Intercom Door Station

SKU INTIPDDS4

The INTIPDDS4 is a single channel video intercom solution ideal for homes and dual-premises buildings such as duplexes. This door station features a 2.0MP camera with auto day/night IRC, all in a stylish aluminium weather/vandal resistant body.

Product features:
• 1/2.8’’ 2.0MP 1.9mm lens camera with 134° FOV
• Built-in microphone and speaker for 2-way talk
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Door control, alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP65/IK08 aluminium body
• Power over Ethernet (12VDC, 802.3af)

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

Suggested Products

Suggested product image
13.56MHz NFC Thin Proximity Cards (10 Pack)
ACKEY103
Suggested product image
Residential Series IP Intercom Monitor (White)
INTIPMONGW
Suggested product image
4-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW4H

Links and Downloads

VIP Vision INTIPDDS2 / INTIPDDS4 Datasheet (PDF) 0.36 MB
VIP Vision Residential Series Intercoms Datasheet (PDF) 0.71 MB
VIP Vision SIP Intercom Installation Manual (SIP 4.5 Firmware) - Q3 2022 (PDF) 4.94 MB
INTIPDDS4 Firmware Upgrade Guide
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Microprocessor
Button Illumination
None
Card Support
Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards
Tamper Detection
Yes
Internal MicroSD Slot
N/A
Max. Additional Door Stations
20
Max. Indoor Monitors
44 (11 per button)
App Connection
QR Code
Camera
Camera System
1/2.8’’ 2.0 Megapixel CMOS with 1.9mm lens (Horizontal FoV: 134°)
Low-Light Application
Day/Night ICR
Input / Output
1 x relay for door control / 2 x channel alarm interface / 1 x RS485
Audio / 2-Way Talk
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network
10M/100Mbps Self-adaptive / TCP/IP protocol
Environmental
Vandal Resistant
IK08
Ingress Protection
IP65
Construction
Zinc Alloy
Installation Options
N/A
Power Input
12VDC, PoE (802.3af)
Power Consumption
<6W
Weight
0.80kg

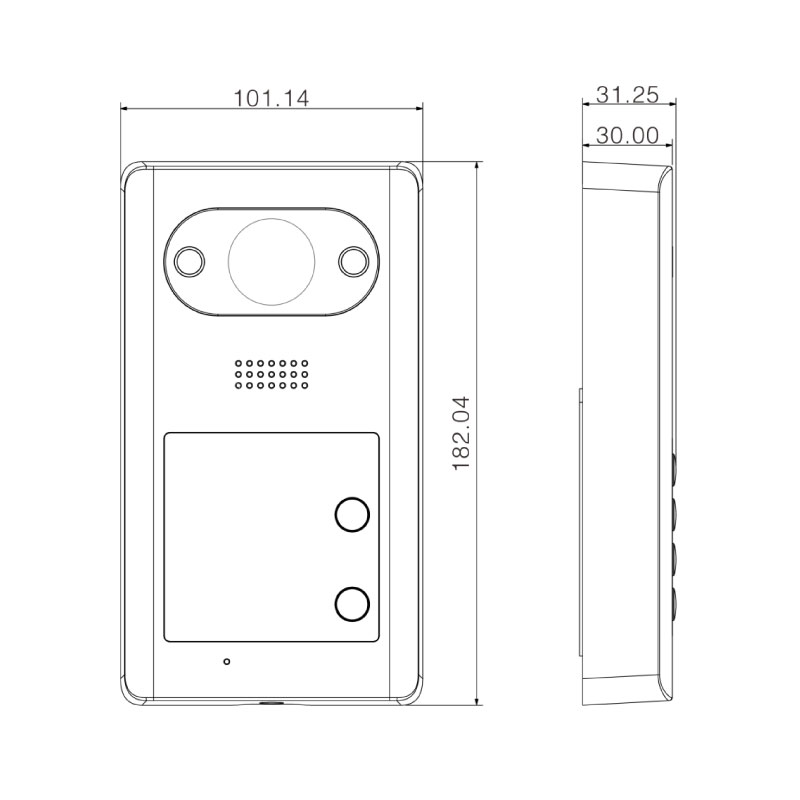

Dimensions
182 x 101 x 30mm
Other
Category
Intercom Systems
Keypad
4 Mechanical Buttons
Series
D Series
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
31 mm
Height
117 mm
Depth
15 mm
Weight
0.85 kg
