Apartment D2 Series IP Door Station

Brand logo
SKU INTIPADSD2
Brand logo

Apartment D2 Series IP Door Station

SKU INTIPADSD2

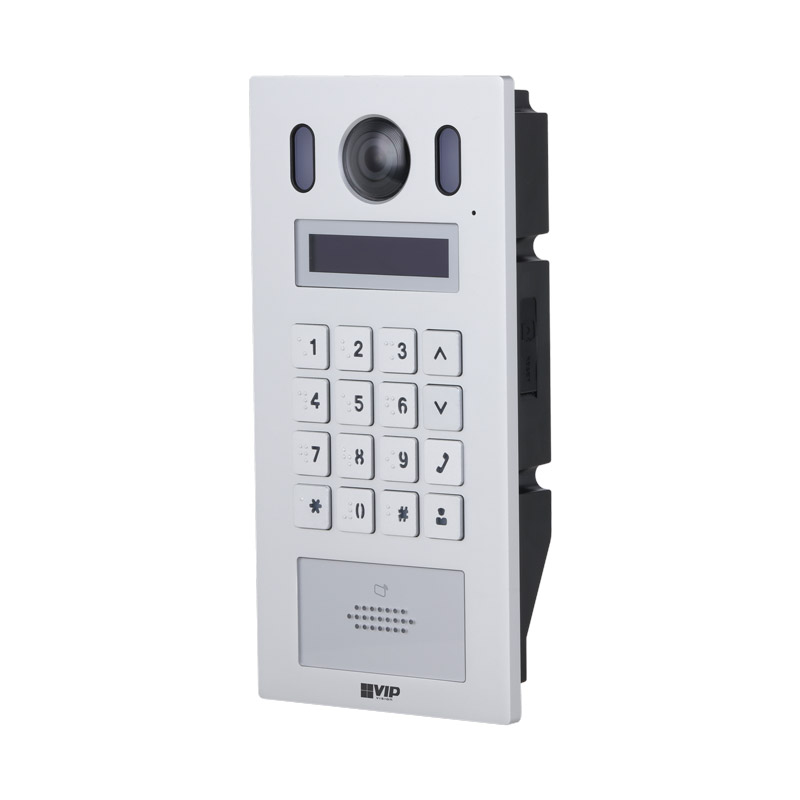

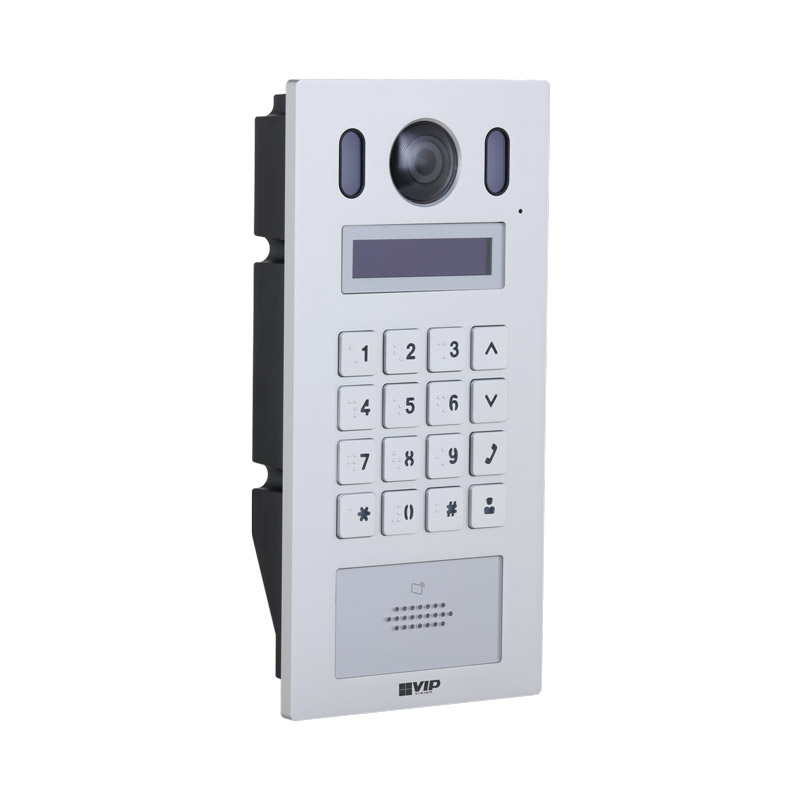

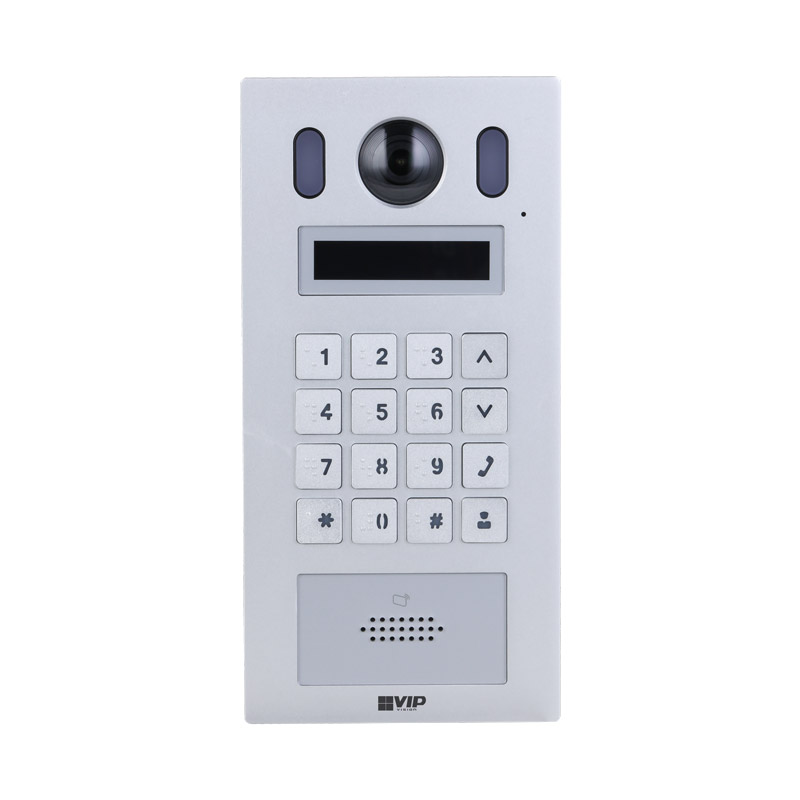

This INTIPADSD2 is an intercom door station from the VIP Vision Apartment Series which can improve access and communication in multi-dwelling premises. It features support for intercom upgrades via existing 2-wire infrastructure and for new IP installations. It features keypad or IC card unlock for easy access.

Product features:
• 1/2.9’’ 2.0MP sensor, 1080p Full HD resolution
• Wide angle lens with 140° horizontal field of view
• Keypad for code unlock & NFC reader for card access
• Connect up to 200 intercom monitor(s) via Ethernet
• Intuitive, easy-to-use mechanical button interface
• 48VDC / PoE (802.3af/at) power input support
• IP65/IK08 weather & vandal resistant front plate
• Backlit OLED interface & supplemental white light

* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.

*This door station is compatible with 13.56MHz NFC cards only.
*Please note that this model requires a firmware update to use remote access/DMSS app.

Suggested Products

Suggested product image
13.56MHz NFC Thin Proximity Cards (10 Pack)
ACKEY103
Suggested product image
13.56MHz NFC Proximity Keyfobs (NTAG215)
ACKEY104
Suggested product image
Flush Mount Box for INTIPADSD & INTIPRDSD
INTIPADSDFB
Suggested product image
Surface Mount Box for INTIPADSD & INTIPRDSD
INTIPADSDSB

Links and Downloads

VIP Vision Apartment Series INTIPADSD2 Datasheet (PDF) 0.71 MB
INTIPADSD DMSS/Remote Access Configuration Guide
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Microprocessor
Button Illumination
Backlit 2.3" OLED, Supplemental White Light (AGC)
Card Support
Mifare, Up to 30mm card detection, AM Modulation, 13.56MHz, 42dBuA/m@10m max. TX power
Tamper Detection
Yes
Internal MicroSD Slot
MicroSD Slot, up to 256GB (sold separately)
Max. Additional Door Stations
20
Max. Indoor Monitors
500
App Connection
N/A
Camera
Camera System
1/2.9" 2.0 Megapixel CMOS with 2mm lens (Horizontal. FoV: 140°)
Low-Light Application
N/A
Input / Output
1 x RJ45, 1 x 12V/600mA, 1 x Alarm I/O, 1 x Wiegand, 1 x RS-485
Audio / 2-Way Talk
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
Ethernet / Network
10M/100Mbps Self-adaptive / TCP/IP protocol
Environmental
Vandal Resistant
IK08
Ingress Protection
IP65 (Front plate)
Construction
Aluminum

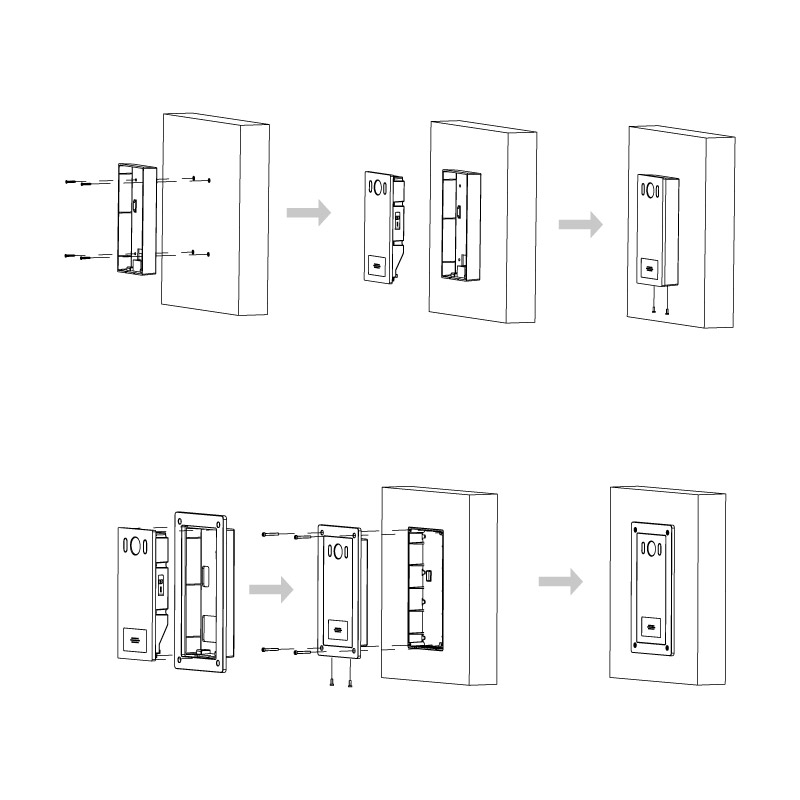

Installation Options
Surface mount / Flush mount (sold separately)
Power Input
48VDC, PoE (802.3af/at)
Power Consumption
Standby <5W / Operation <7W
Weight
0.66kg

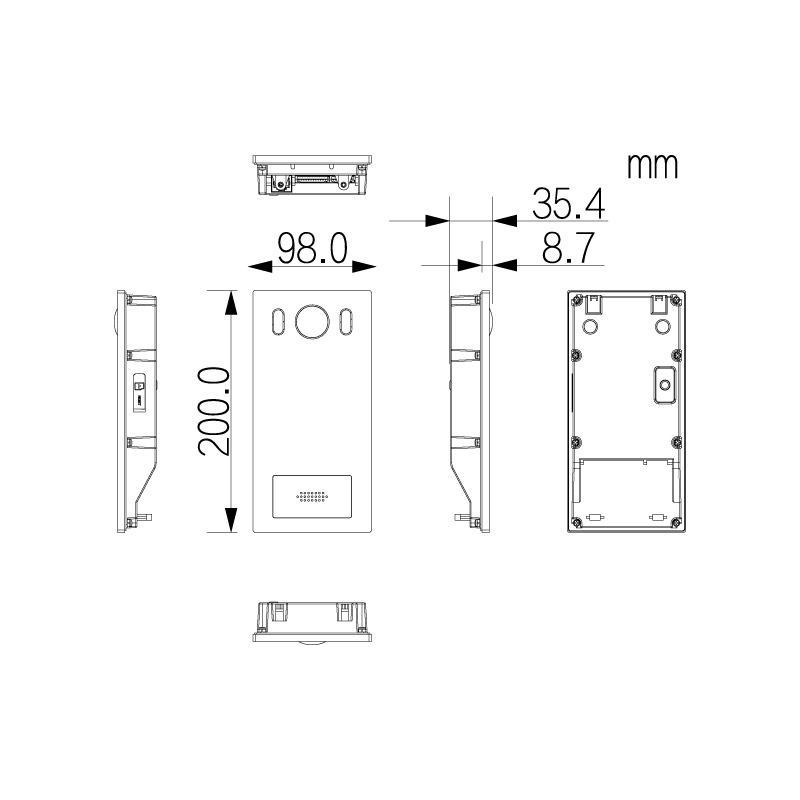

Dimensions
200 x 98 x 35mm
Other
Interface
1 x Door Chime, 1 x Exit Button, 1 x Lock Control
Operating Environment
-40°C ~ +60°, 10~90% relative humidity
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
70 mm
Height
166 mm
Depth
76 mm
Weight
1.00 kg
