Apartment Series IP Outdoor Station (Stainless Steel)

Brand logo
SKU INTIPADSC
Brand logo

Apartment Series IP Outdoor Station (Stainless Steel)

SKU INTIPADSC

Stock may be limited. Please contact us for availability or for an alternative item.

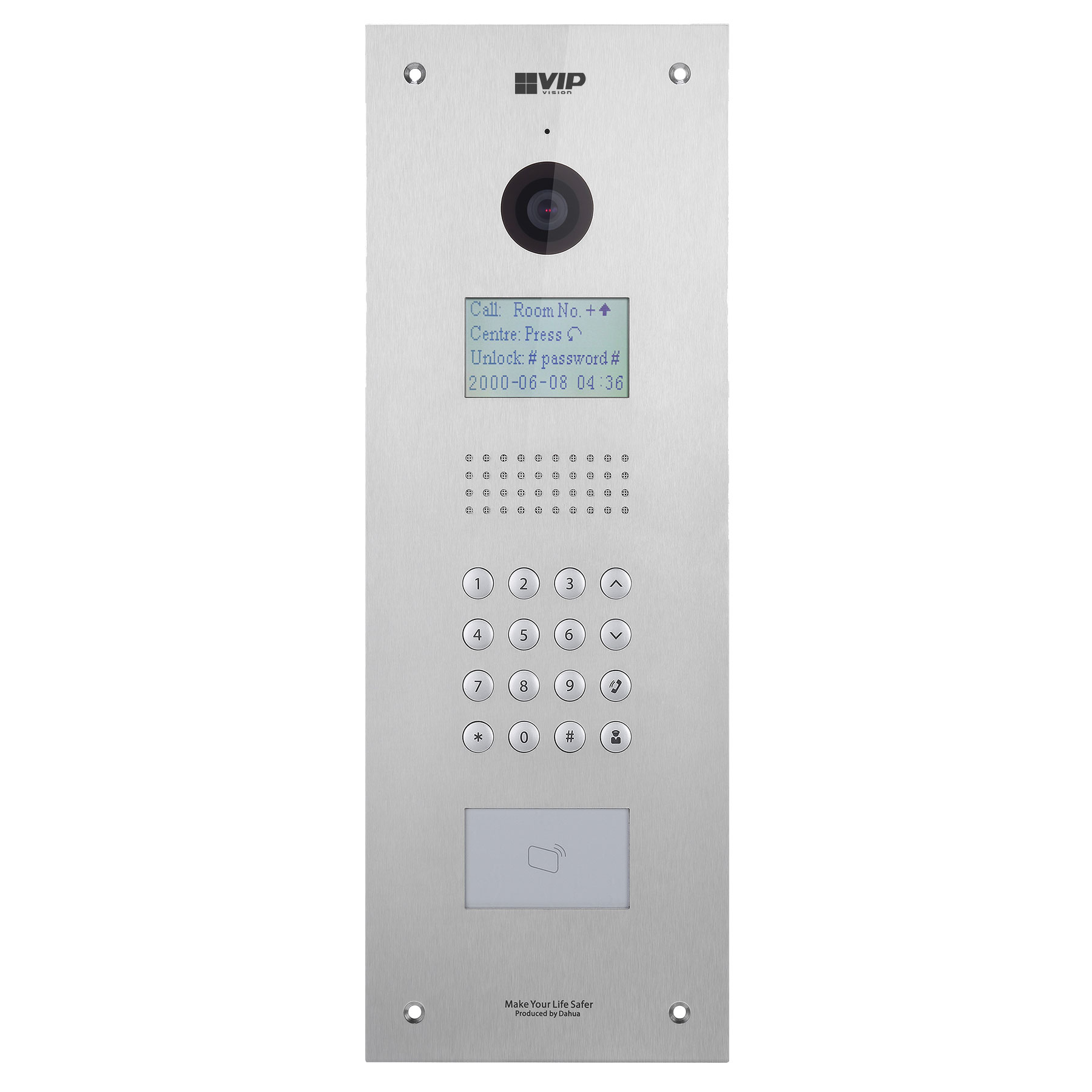

The INTIPADSC is an outdoors video intercom solution, ideal for large access control applications such as apartment complexes, hotels and gated villas. Features a 1.3MP camera and embedded microphone and speakers for two-way talk between the door station and indoor monitors.

Product features:
• 1/3" 1.3MP 3.6mm lens camera with 95° FOV
• Call individual residences for two-way talk via indoor monitor
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP54/IK07 stainless steel body (front plate)

Suggested Products

Suggested product image
13.56MHz NFC Thin Proximity Cards (10 Pack)
ACKEY103
Suggested product image
Flush Mount Box for INTIPADSB & INTIPADSC
INTIPAFM103
Suggested product image
Surface Mount Box for INTIPADSC
INTIPASM110
Suggested product image
Apartment Series IP Intercom Monitor (White)
INTIPMON

Links and Downloads

VIP Vision Apartment Series Intercoms Datasheet (PDF) 0.56 MB
Intercom Config Tool 21.38 MB
VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Microprocessor
Button Illumination
Card Support
Yes
Tamper Detection
Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards
Max. Additional Door Stations
Max. Indoor Monitors
App Connection
Camera
Camera System
1.3" 1.3 Megapixel CMOS with 3.6mm lens (Diag. FoV: 95°)
Audio Input
Omni-directional Microphone
Audio Output
Embedded Loudspeaker
Bidirectional Talk
Support
Ethernet
10M/100Mbps Self-adaptive
Network Protocol
TCP/IP
Environmental
Vandal Resistant
IK07
Ingress Protection
IP54 (Front plate)
Installation
Surface mount rain shield / Flush mount
Power Input
12VDC
Power Consumption
Standby < 1W / Operation < 10W
Dimensions
143 x 406 x 42mm
Weight
1.60kg
Other
Backlit Interface
Yes
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
510 mm
Height
95 mm
Depth
205 mm
Weight
1.86 kg
