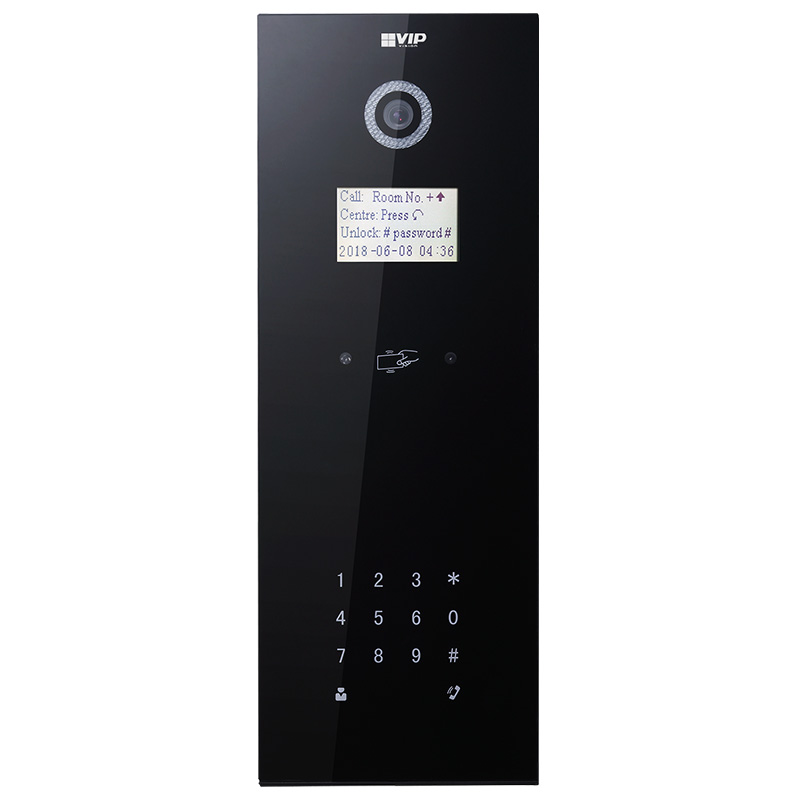

Apartment Series IP Outdoor Station (Black)

Brand logo
SKU INTIPADSB
Brand logo

Apartment Series IP Outdoor Station (Black)

SKU INTIPADSB

Stock may be limited. Please contact us for availability or for an alternative item.

The INTIPADSB is an outdoors video intercom solution, ideal for large access control applications such as apartment complexes, hotels and gated villas. Features a 1.3MP camera and embedded microphone and speakers for two-way talk between the door station and indoor monitors.

Product features:
• 1.3MP image sensor with 1.9mm lens (95° diagonal field of view)
• Call individual residences for two-way talk via indoor monitor
• Built-in NFC card reader for keycard access (up to 10,000 NFC cards)
• Connect with intercom monitor(s) via Ethernet
• Intuitive, easy-to-use interface
• Weather resistant IP65 tempered glass body (front plate)

Suggested Products

Suggested product image
13.56MHz NFC Thin Proximity Cards (10 Pack)
ACKEY103
Suggested product image
Flush Mount Box for INTIPADSB
INTIPAFM100
Suggested product image
Flush Mount Box for INTIPADSB & INTIPADSC
INTIPAFM103
Suggested product image
Apartment Series IP Intercom Monitor (White)
INTIPMON

Links and Downloads

VIP Vision Apartment Series Intercoms Datasheet (PDF) 0.56 MB
Intercom Config Tool 21.38 MB
VIP Vision Intercom Product Guide 2019 (PDF) 6.53 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Microprocessor
Button Illumination
Card Support
Built-in NFC Card Reader, Supports up to 10,000 13.56MHz NFC cards
Tamper Detection
Yes
Max. Additional Door Stations
Max. Indoor Monitors
App Connection
Camera
Camera System
1.3" 1.3 Megapixel CMOS with 3.6mm lens (Diag. FoV: 95°)
Audio Input
Omni-directional Microphone
Audio Output
Embedded Loudspeaker
Bidirectional Talk
Support
Ethernet
10M/100Mbps Self-adaptive
Network Protocol
TCP/IP
Environmental
Vandal Resistant
N/A
Ingress Protection
IP65 (Front plate)
Installation
Flush mount
Power Input
12VDC
Power Consumption
Standby < 1W / Operation < 10W
Dimensions
150 x 408 x 46mm
Weight
1.60kg
Other
Backlit Interface
Yes
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
212 mm
Height
458 mm
Depth
96 mm
Weight
1.80 kg
