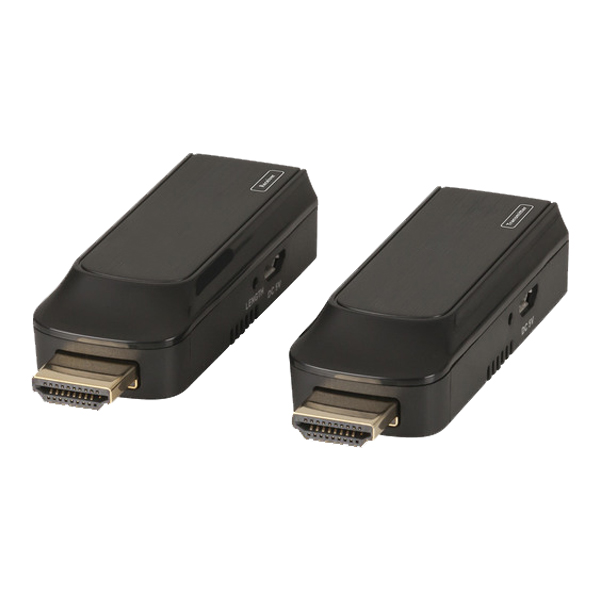

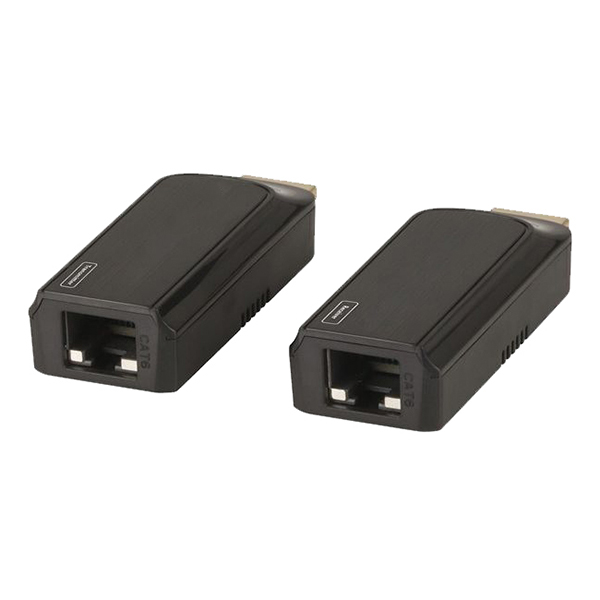

HDMI Over CAT6 Mini Extender Kit (50m)

Brand logo
SKU HDMIEXTMINI50M
Brand logo

HDMI Over CAT6 Mini Extender Kit (50m)

SKU HDMIEXTMINI50M

The HDMIEXTMINI50M transmits HDMI video/audio over distances up to 50m over CAT6 cable. This extender is a reliable and cost-effective method for outputting an HDMI source to a distant display. Perfect for lecture halls, home theatres, or video conference rooms.

Product features:
• Transmit HDMI signal over 50m (CAT6) / 40m (CAT5) without signal loss
• Support up to Full HD 1080p resolution
• Up to 4.95Gbps bandwidth
• Easy plug-and-play installation
• 1 x 5VDC 1A power supply (included)
• HDCP & 3D support
• IEEE-568B CAT6 standard

Includes:
1 x HDMI Transmitter
1 x HDMI Receiver
1 x USB Mains power supply

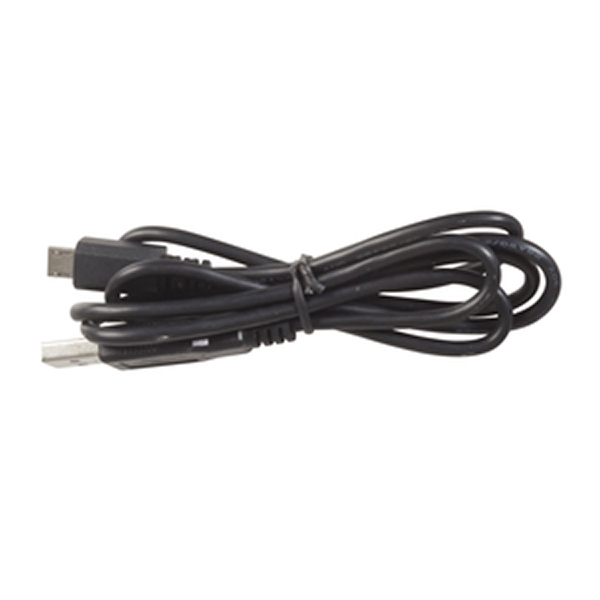

1 x USB Micro-B cable
1 x User manual

Links and Downloads

HDMIEXTMINI50M User Manual (PDF) 0.55 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

A/V Switcher or Converter
Input type
HDMI
Switcher/Converter Type
Balun Extender
Input Connection
HDMI Type-A
Output Type
HDMI
Output Connection
HDMI Type-A
Power Requirement
External Power Required
Power
DC Voltage
5V
PSU Powers
Main Product
DC Current Draw
600mA
Video Resolution
HDMI Version
1.3a
Supported Display Resolution
(1920 x 1080)
HDCP Version
1.4
General
Dimensions
25 x 52 x 15mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
115 mm
Height
35 mm
Depth
70 mm
Weight
0.26 kg
