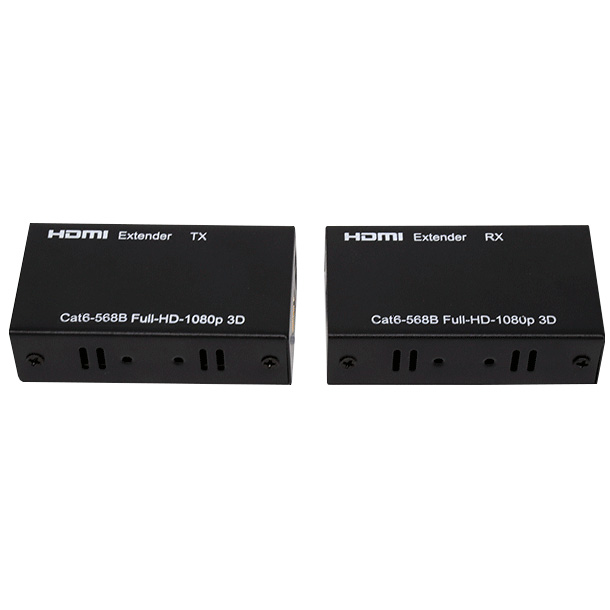

HDMI Over Cat6 Extender Kit (50m)

Brand logo
SKU HDMICAT6EXT50M
Brand logo

HDMI Over Cat6 Extender Kit (50m)

SKU HDMICAT6EXT50M

Available by special order only. Please contact us for lead times.

The HDMICAT6EXT50M transmits HDMI video/audio over distances up to 50m over Cat6 cable. This extender is a reliable and cost-effective method for outputting an HDMI source to a distant display. Perfect for lecture halls, home theatres, or video conference rooms.

Product features:
• Transmit HDMI signal over 50m via single Cat6 without signal loss
• Support up to Full HD 1080p resolution
• EDID reading and saving from display
• Up to 6.75Gbps bandwidth
• Easy plug-and-play installation
• 2 x 5VDC 1A power supply (included)
• Compatible with 3D, not compatible with 4K/2K
• IEEE-568B CAT6 standard

Includes:
1 x HDMI Transmitter
1 x HDMI Receiver
2 x Power supply
1 x User manual

Links and Downloads

HDMICAT6EXT50M User Manual (PDF) 0.11 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Dimensions
81 x 43 x 23mm
Ethernet Interface
RJ45
Ethernet Transmission Distance
50m
Impendance
100Ω
Max. Data Rate
6.75Gbps
Max. Pixel Clock
165MHz
Operating Environment
-5°C~+70°C / 5~95% RH
Power Consumption
3W
Power Supply
5VDC / 1A
Resolution
1920x1080 @ 60Hz, 3D
Video Connector
HDMI-A
Video Standards
HDMI 1.3, HDCP1.2
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
115 mm
Height
35 mm
Depth
70 mm
Weight
0.26 kg
