HDMI Over Cat5/Cat6 Extender Kit (30m) with Infrared Emitter

Brand logo
SKU HDMICAT5E6EXT30M
Brand logo

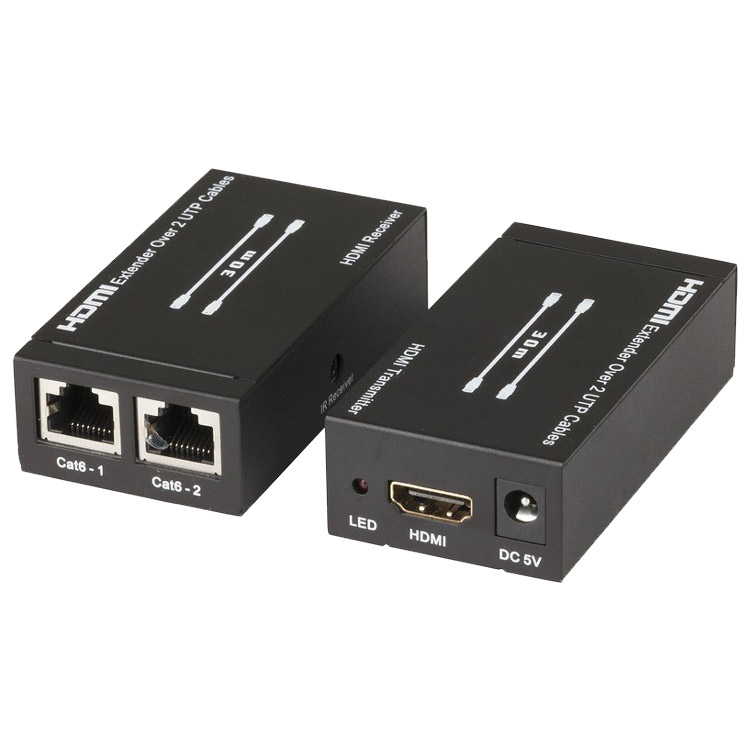

HDMI Over Cat5/Cat6 Extender Kit (30m) with Infrared Emitter

SKU HDMICAT5E6EXT30M

Stock may be limited. Please contact us for availability or for an alternative item.

The HDMICAT5E6EXT30M transmits HDMI video/audio and IR over distances up to 30m over two Cat6 cables. This extender is a reliable and cost-effective method for outputting a HDMI source to a distant display. Perfect for lecture halls, home theatres, or video conference rooms.

Features:
• Embedded IR control path
• HDMI 1.3b and HDCP 1.1/DVI1.1 compliant
• Achieve 1080p from the sources up to 30m using Cat6 or 20m using Cat5e
• Can support longer distances (may incur resolution degrading)
• Only 1 extender require a 5VDC power supply (supplied)

Links and Downloads

HDMICAT5E6EXT30M User Manual (PDF) 0.31 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Audio support
LCPM, Dolby True HD & DTS Master Audio, 7.1 compliant
Dimensions
100(L) x 65(W) x 25(H)mm
Equalisation
8-level digital on RX
Input
1 x RJ45, 1 x 3.5mm(IR extender)
IR Frequency
20kHz - 60kHz
Output
1 x HDMI, 1 x 3.5mm(IR extender)
Range
30m
Video support
480i / 480p / 720p / 1080i / 1080p
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
150 mm
Height
55 mm
Depth
215 mm
Weight
0.48 kg
