2-way 4K Ultra HD HDMI Splitter

Brand logo
SKU HDMI-SPL2P3
Brand logo

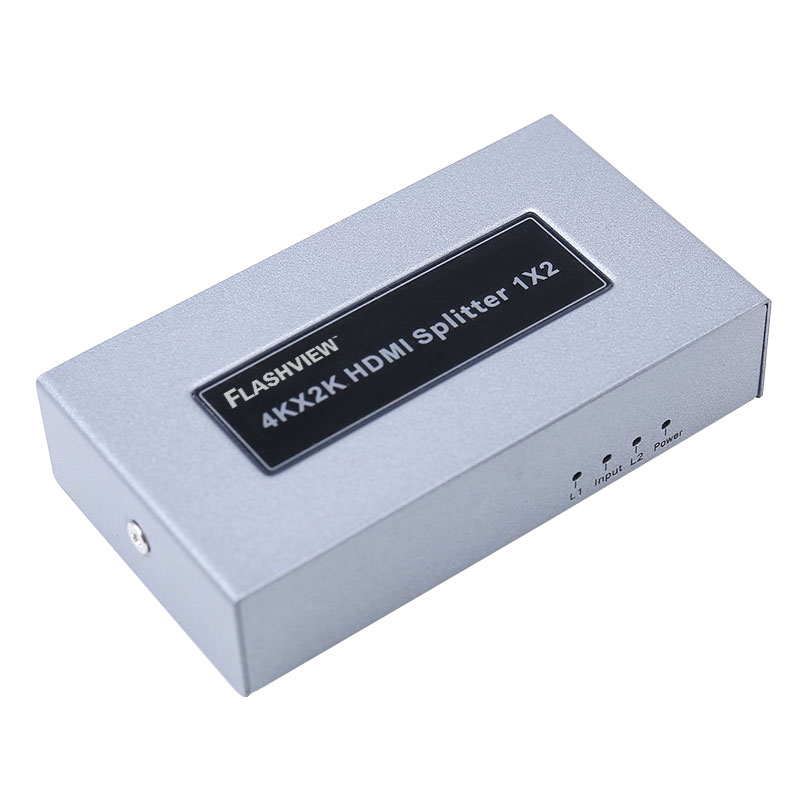

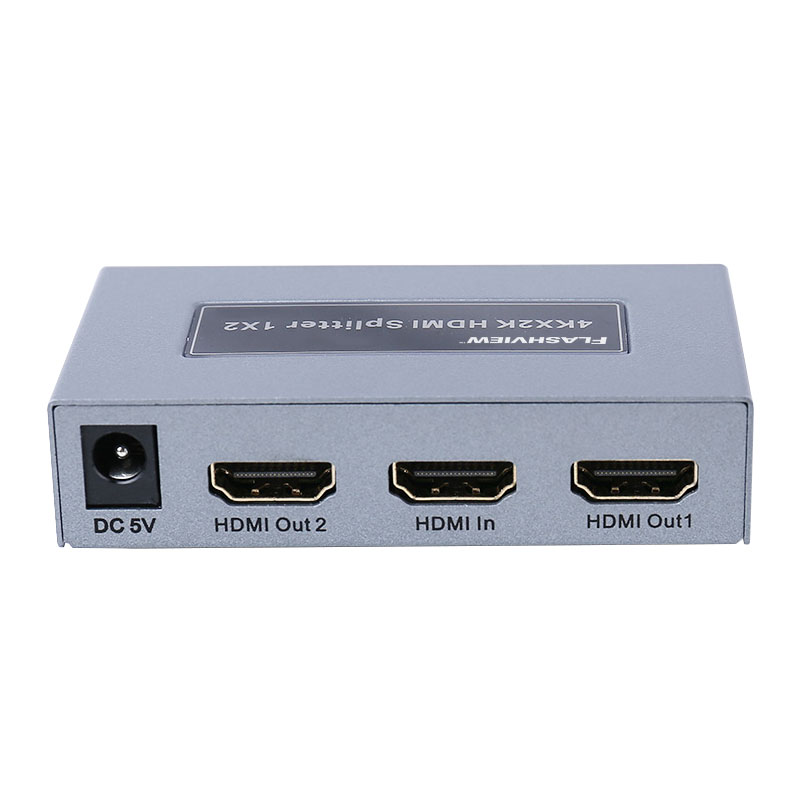

2-way 4K Ultra HD HDMI Splitter

SKU HDMI-SPL2P3

The HDMI-SPL2P3 distributes one HDMI source to multiple HDMI displays simultaneously. This HDMI splitter can support 2 signals simultaneously without compromising image quality, has full support for 4K UHD and 3D video. Its compact, light body makes installation easy. Great for retail environments, clubs, business foyers, security system display and data control centres.

Product Features:
• Inputs: 1 x HDMI
• Outputs: 2 x HDMI
• Supports 4K Ultra HD and 4K x 2K resolution
• 3D video support
• Supports automatic recognition of EDID resolution

*Includes a 5VDC power supply

Links and Downloads

Flashview HDMI Splitter Quick Start Guide (PDF) 0.34 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Resolution
4Kx2K@30Hz / 3D / 1920x1080 backwards compatible
Support Video Colour Format
24bit Deep Colour / 30bit / 36bit / 48bit
Support Audio Format
DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD / HD (HBR)
Input Cable Distance
<15m AWG24 HDMI standard cable
Output Cable Distance
<10m AWG24 HDMI standard cable
Environmental
Power
90VAC ~ 240VAC, 50-60HZ (5VDC power supply included)
Power Consumption
3.8W
Max Working Current
500mA
Operating Environment
-15 ~+75ºC
Dimensions
85 x 46 x 25mm (W x D x H)
Weight
N/A
Other
HDMI Bandwidth
340MHz / 3.4Gps
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
215 mm
Height
50 mm
Depth
152 mm
Weight
0.50 kg
