HDMI Splitter

Brand logo
SKU HDMI-SPL2P
Brand logo

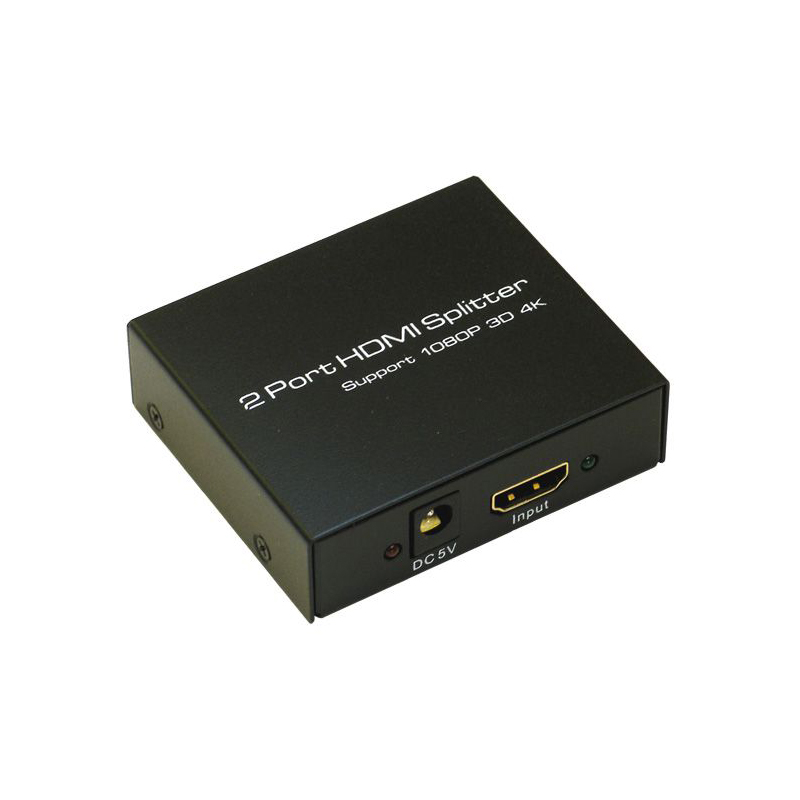

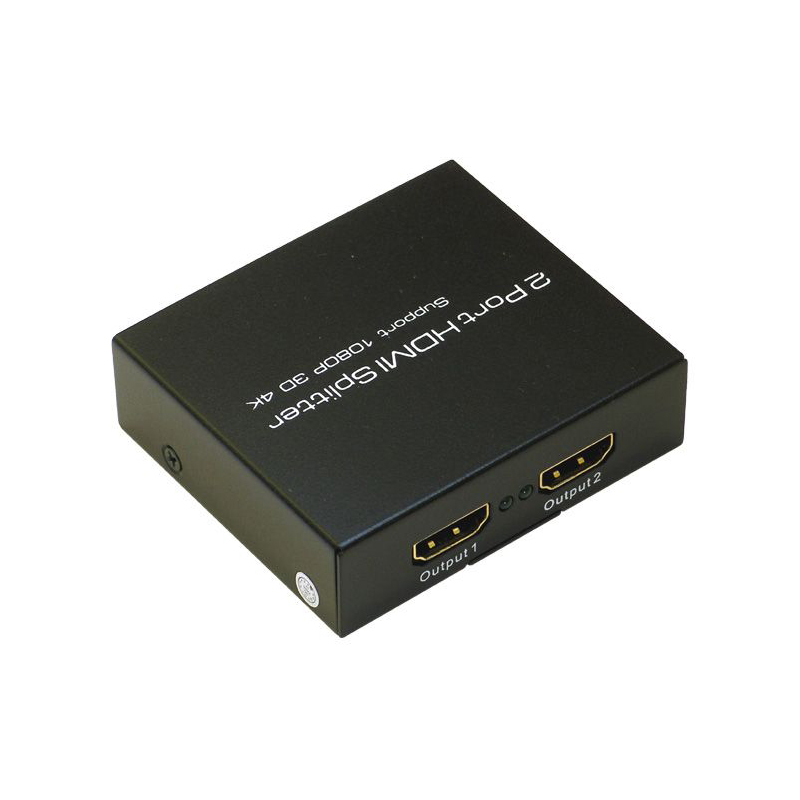

HDMI Splitter

SKU HDMI-SPL2P

Available by special order only. Please contact us for lead times.

The HDMI-SPL2P distributes one HDMI source to multiple HDMI displays simultaneously. It is HDMI 1.4 compliant and has full support for 4K, UHD and 3D video. Its compact, light body makes installation easy. Great for retail environments, clubs, business foyers and data control centres.

Product Features:
• Inputs: 1 x HDMI
• Outputs: 2 x HDMI
• 3D video support

*Includes a 5VDC power supply

Links and Downloads

HDMISPLIT2 User Manual (PDF) 0.11 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Resolution
4K@30Hz /3D/1080P/1080i/720p/576p/576i/480P/480i
Support Video Colour Format
24bit / deep color 30bit / deep color36bit / deep color 48bit
Support Audio Format
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR)
Input Cable Distance
≤10m AWG26 HDMI standard cable
Output Cable Distance
≤10m AWG26 HDMI standard cable
Environmental
Power
100VAC ~ 240VAC, 50-60HZ
Power Consumption
5W
Max Working Current
150mA
Operating Environment
-15 ~+55ºC
Dimensions
65 x 62 x 20mm (W x D x H)
Weight
0.14kg
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
100 mm
Height
100 mm
Depth
60 mm
Weight
0.10 kg
