HDMI Extender Over CAT6 (50m)

Brand logo
SKU HDMI-EXT50M
Brand logo

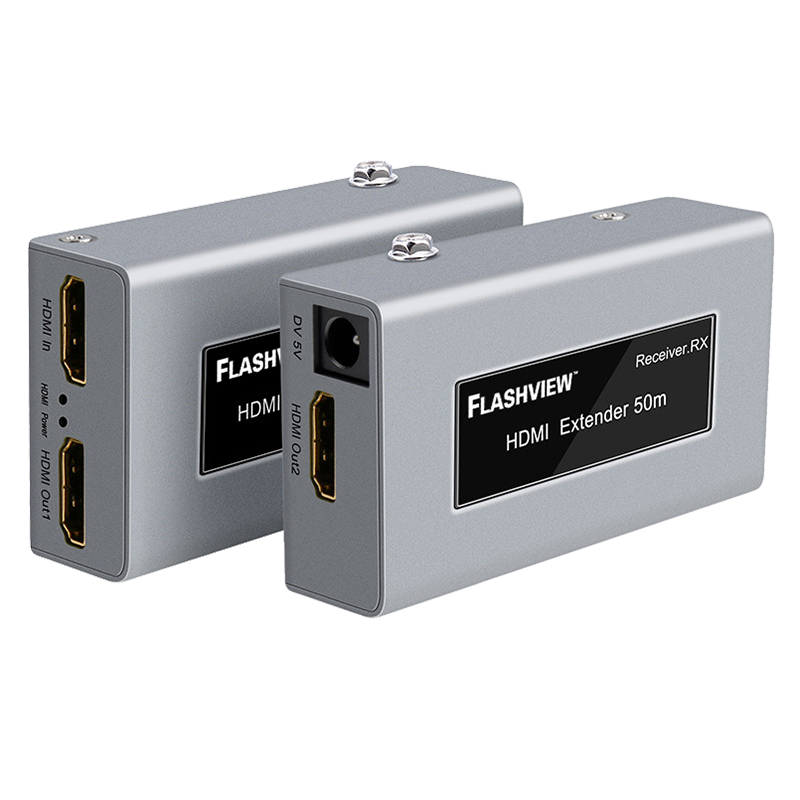

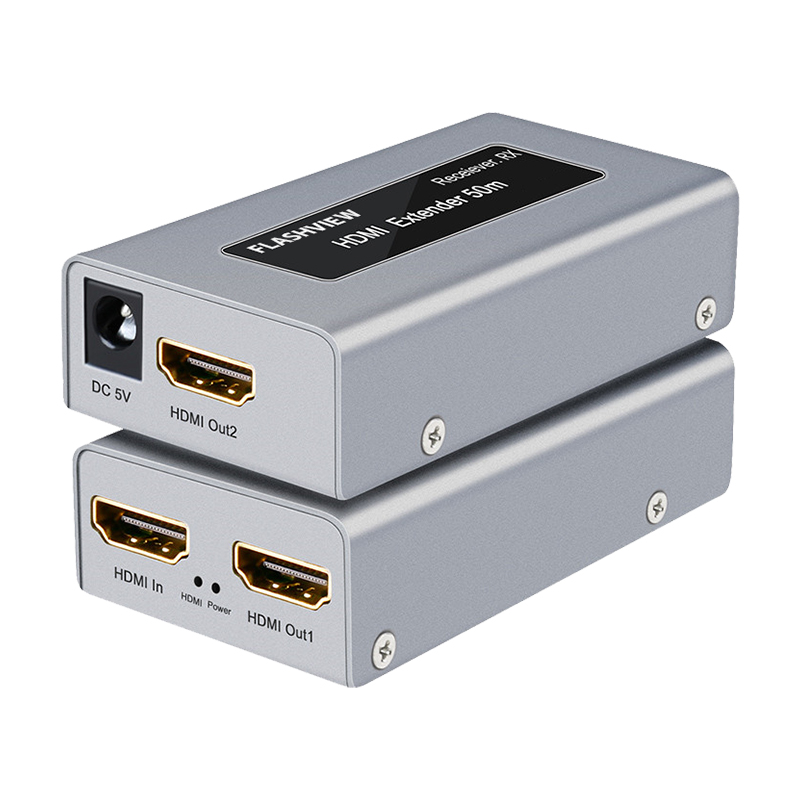

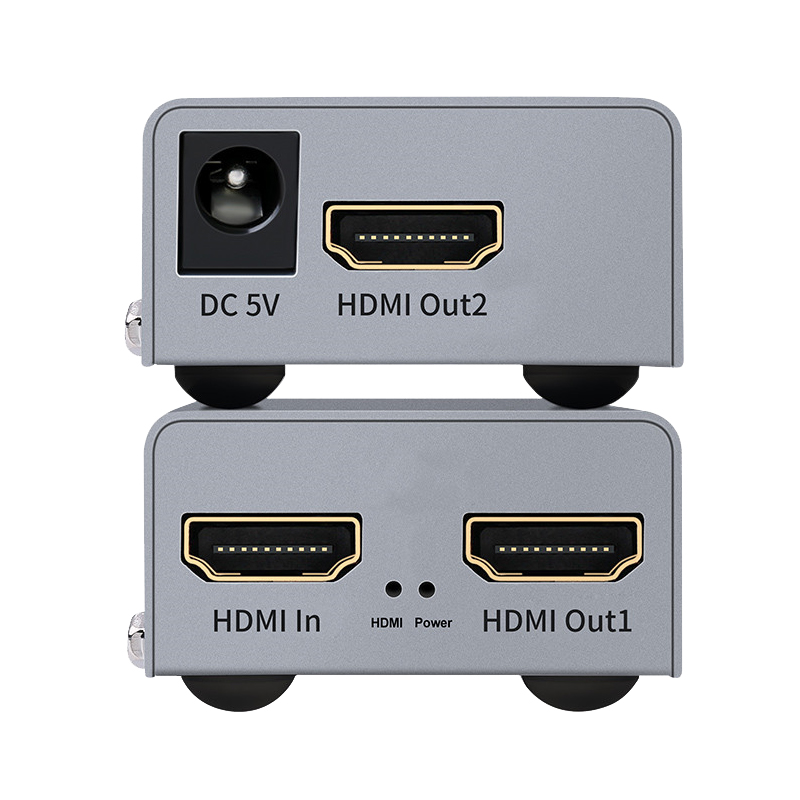

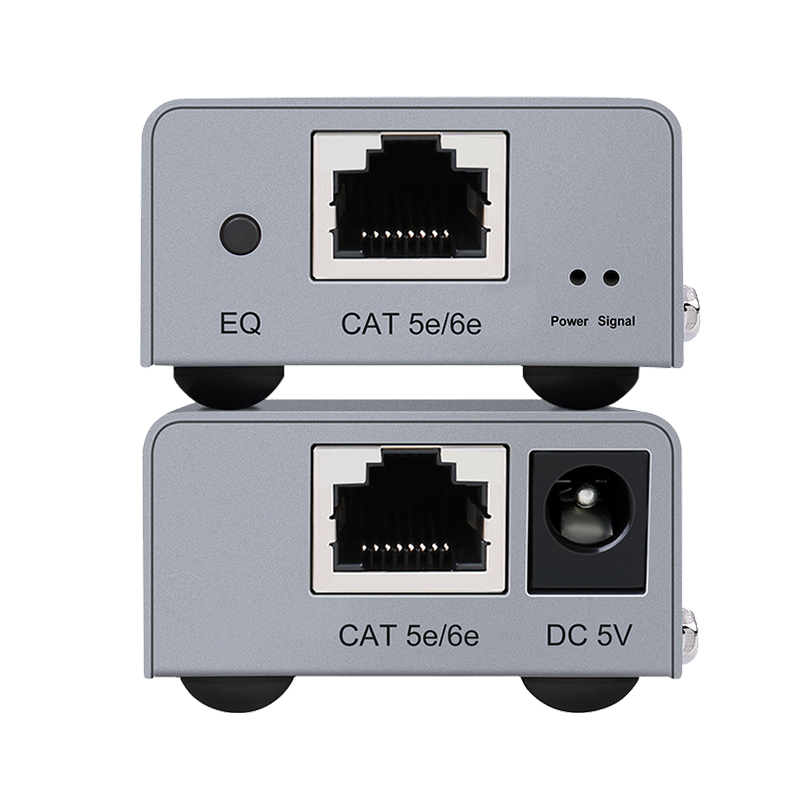

HDMI Extender Over CAT6 (50m)

SKU HDMI-EXT50M

The HDMI-EXT50M transmits HDMI video/audio over distances up to 50m over CAT6 cable. This extender is a reliable and convenient device that allows a HDMI source to be outputted to a distant display. Perfect for displays in lecture halls, home theatres, retail environments, clubs, business foyers and data control centres.

Product features:
• Transmit HDMI signal over 50m via single CAT6 cable without signal loss
• Supports up to Full HD 1080p resolution
• Supports 3D video formats
• Transmit up to 60m via CAT6, 50m via CAT5E or 40m via CAT5
• Up to 225MHz/2.5Gps bandwidth
• Easy plug-and-play installation
• Includes 2 x 5VDC 1A power supply

Includes:
1 x HDMI Transmitter
1 x HDMI Receiver
2 x Power supply
1 x User manual

Links and Downloads

Flashview HDMI Extender Quick Start Guide (PDF) 0.49 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Resolution
1080p (1920 x 1080)
HDMI Format
480i / 480p / 576i / 576p / 720i / 720p / 1080i / 1080p
Support Video Colour Format
24bit / 30bit / 36bit /48bit dark colour
Support Audio Format
DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD(HBR)
Support Blu-ray
DVD24 / 50 / 60fs / HD-DVD / XVYCC
Ethernet
Ethernet Interface
RJ45
Ethernet Transmission Distance
50m via CAT6 / 50m via CAT5E / 40m via CAT5
Max. Data Rate
2.5Gbps
Max. Pixel Clock
225MHz
Environmental
Power Supply
5VDC / 1A
Operating Environment
-5°C~+70°C / 5~95% RH
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
160 mm
Height
220 mm
Depth
60 mm
Weight
1.00 kg
