SafeDial Wireless Contact ID to 3G Communicator

Brand logo
SKU GL453GIP

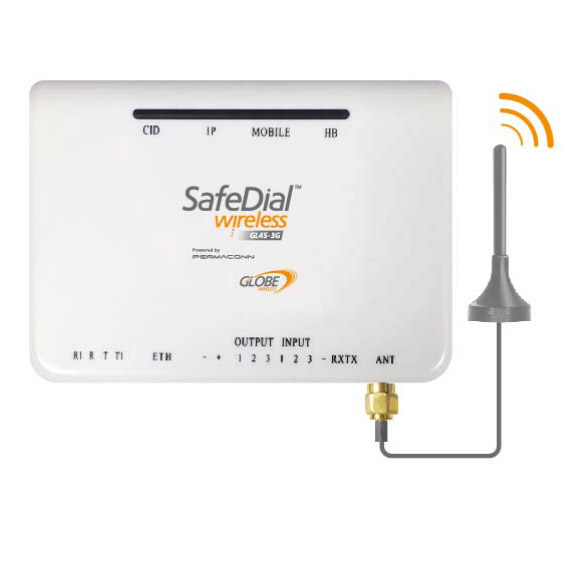

SafeDial Wireless Contact ID to 3G Communicator

SKU GL453GIP

Available by special order only. Please contact us for lead times.

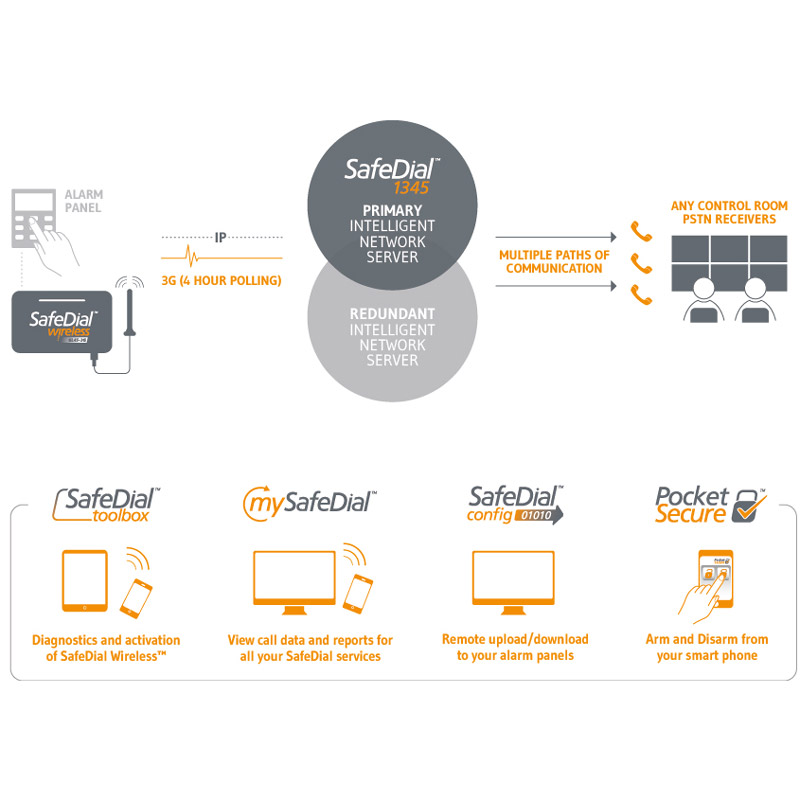

Solve your NBN alarm monitoring problems with the SafeDial Wireless GL453GIP Contact ID to 3G Communicator. This enables you to instantly connect your dialer alarm panel to your central station via the Telstra 3G mobile network. This unit also requires no extra equipment at the control room and you can carry over your existing 1345 number.

Monthly SIM / Service charge applies. Contact your sales representative for more information.

• Multicom, MultiPath wireless & IP module powered by Permaconn & Telstra mobile network 3G/GPRS SIM
• 4hr simultaneous Integrity Polling on 3G/IP
• Compatible with ALL control rooms
• Interfaces with ANY contact ID alarm panel
• No extra equipment required at control room
• Does not incur additional GPRS monitoring fees from your control room
• Carry over your existing 1345 number

Suggested Products

Suggested product image
Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864
Suggested product image
Complete 8 Zone Alarm System Expandable to 64 Monitored Zones
WGAP864PACK

Links and Downloads

GL453GIP Product Brochure (PDF) 0.57 MB
GL453GIP Quick Start Guide (PDF) 1.01 MB
GL453GIP User Manual (PDF) 1.43 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Antenna
Triple band 3G & Dual band GPRS
Approvals
EN301489, EN301908, EN62311, EN60950-1
Auxiliary Input
3 x 24Hr input - state change detected every second. / EOL 3.3K
Auxiliary Output
3 x Open Collector output @ 50mA (max) / Function control using SafeDial Toolbox and/or Pocket Secure
Communication Protocol
Ethernet (10/100BASE-T)
Data Security
AES128 Encryption
Dimensions
110mm (h) x 25mm (d) x 80mm (w)
Housing Material
ABS plastic - White
Modem
Telit Wireless Solutions
Network Protocol
DHCP or Static IP
Operating Environment
0°- 50°C @15% to 85% humidity (non-condensing)
Power
10–15V DC. Terminal (must power from appoved supply)
Power Consumption
Standby: 0.08A @13.8V DC / Transmitting: 0.19A @13.8V DC
Serial Port
High Speed RS232 interface
Static IP Network Configuration
Ethernet interface using ‘IpSetup’ program
Supported Modulation
N/A
Weight
120g
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
210 mm
Height
40 mm
Depth
120 mm
Weight
0.30 kg
