EZ-IP 8CH PoE NVR with 1 x HDD Bay

Brand logo
SKU EZ-N48PRO
Brand logo

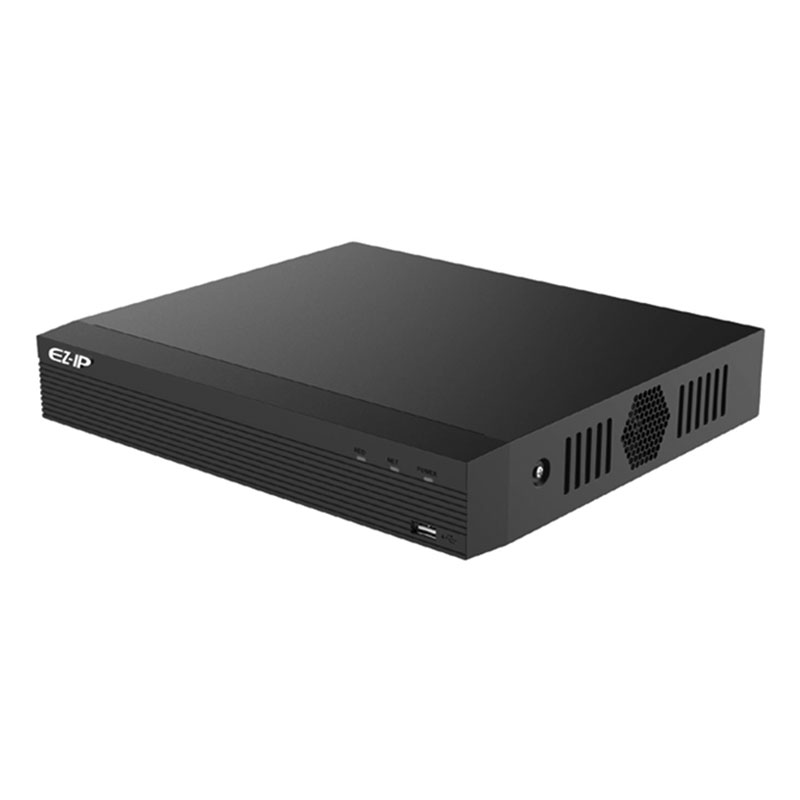

EZ-IP 8CH PoE NVR with 1 x HDD Bay

SKU EZ-N48PRO

The EZ-IP brings superb value with the EZ-N48PRO. The EZ-N48PRO brings peace of mind with capacity for months of footage storage and integrates with a large range of cameras.

Product features:
• Records up to 12.0 megapixel (4000 x 3000)
• Up to 160Mbps incoming bandwidth
• Decoding 8CH@1080p/2MP/25fps
• 1 x SATA bay with support for up to 20TB capacity HDD
• Built-in 8 port power over Ethernet switch
• HDMI and VGA simultaneous video output
• Backup footage via external USB device or local network

Links and Downloads

EZ-N48PRO Datasheet (PDF) 1.34 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Video Input
8 Channels
PoE
Yes
HDD Capacity
1
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from 12.0MP (4000 x 3000) to QCIF (176 x 144)
Network Bandwidth (AI Disabled)
160Mbps (incoming/recording) 80Mbps (outgoing)
Network Bandwidth (AI Enabled)
-
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / Smart H.264+
Playback Channels
8 Channels
Playback Modes
Instant playback, general playback, event playback, tag playback, smart playback
Decoding Capacity (AI Disabled)
8CH@1080p/2MP/25fps
Decoding Capacity (AI Enabled)
-
Backup Method
USB device / network

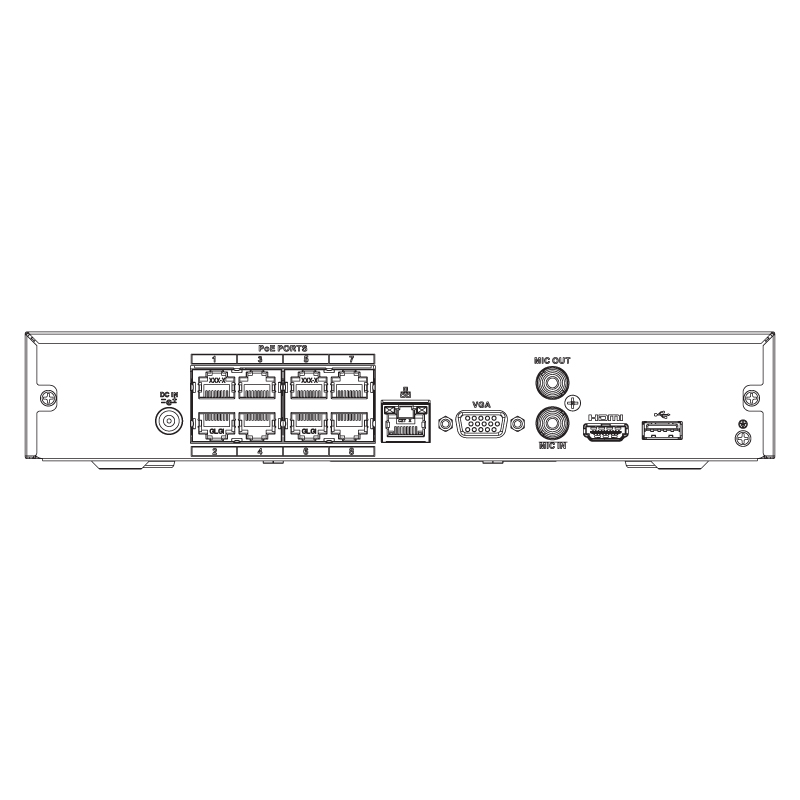

Interface
HDD
1 x SATA bays, up to 20TB
Audio
1 channel input (RCA), 1 channel output (RCA)
Alarm Interface
-
Alarm Types
Record, snapshot, IPC external alarm output, audio, buzzer, log, preset, email
Alarm Actions
-
Display Output
1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
Display Split
1st screen - 1/4/8/9, 2nd screen - 1/4/8/9
Display Mode
HDMI1 + VGA1 (Mirror)
Network Input
1 x 10/100/1000Mbps Ethernet uplink, 8 x PoE 10/1000Mbps (802.3af/at)
Network Functions
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, DDNS, FTP, SNMP, Alarm Server, P2P, Auto Registration, IP Search
USB & Other Inputs
1 x Front USB 2.0, 1 x Rear USB 2.0
Artificial Intelligence
NVR Operated AI
-
Supported Camera AI
Face Detection, Face Recognition, People Counting, Heatmap, AI Tripwire/Intrusion and AI Human/Vehicle Detection
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
-
Face Detection (By Camera)
6 channels
Face Recognition Capacity
-
Face Recognition (By NVR)
-
Face Recognition (By Camera)
6 channels
Human/Vehicle Detection Functions
-
Human/Vehicle Detection (By NVR)
-
Human/Vehicle Detection (By Camera)
IVS: 6 channels, SMD: 6 channels
ANPR Functions
-
ANPR (By Camera)
-
Video Metadata Functions
-
Video Metadata (By NVR)
-
Video Metadata (By Camera)
-
Environment
Power Supply
53VDC / 1.81A
Power Consumption
NVR: <10W (without HDD) / PoE: Max 25.5W for single port, 72W total
Operating Environment
-10°C ~ +55°C / 10 ~ 93%RH
Rackmountable
Yes
Rackmount Units
1U

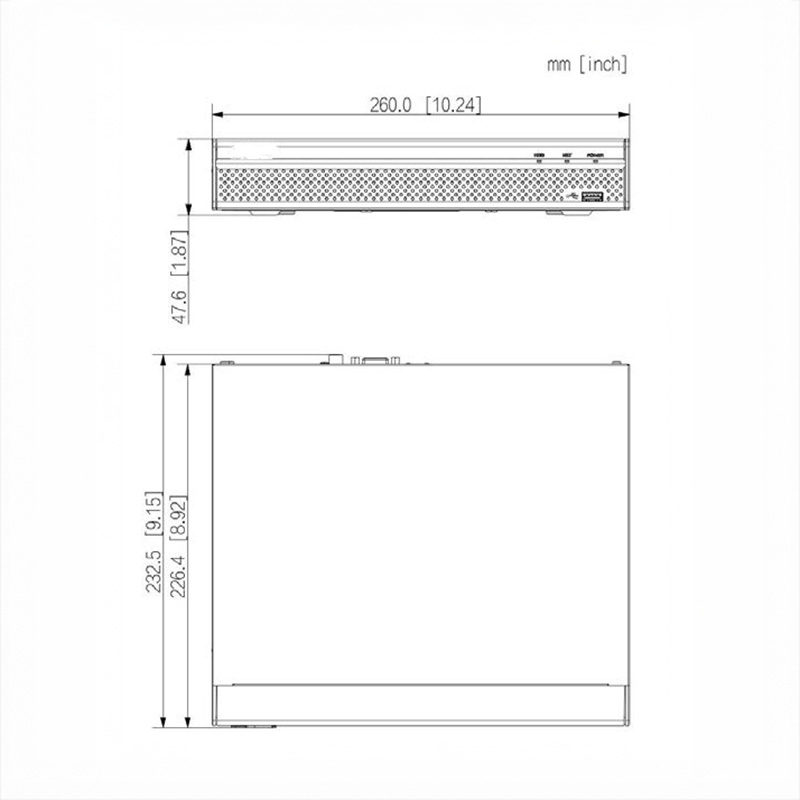

Dimensions
260mm x 232.5mm x 47.6mm
Weight
0.92kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
89 mm
Height
333 mm
Depth
315 mm
Weight
1.88 kg
