2 Channel Mains Voltage RF Receiver

SKU ENSA-RS1

2 Channel Mains Voltage RF Receiver

SKU ENSA-RS1

Automate your lighting with the ENSA-RS1 and Watchguard™ universal transmitters.

Product features:
• 240VAC 433.92MHz fixed code receiver with up to 100m RF range (LoS)
• Remote control your LED lighting for added security and energy savings
• Integrate wireless PIR and reed switches for automatic activation of lights
• Features 2 programmable relay outputs (latched or timed)

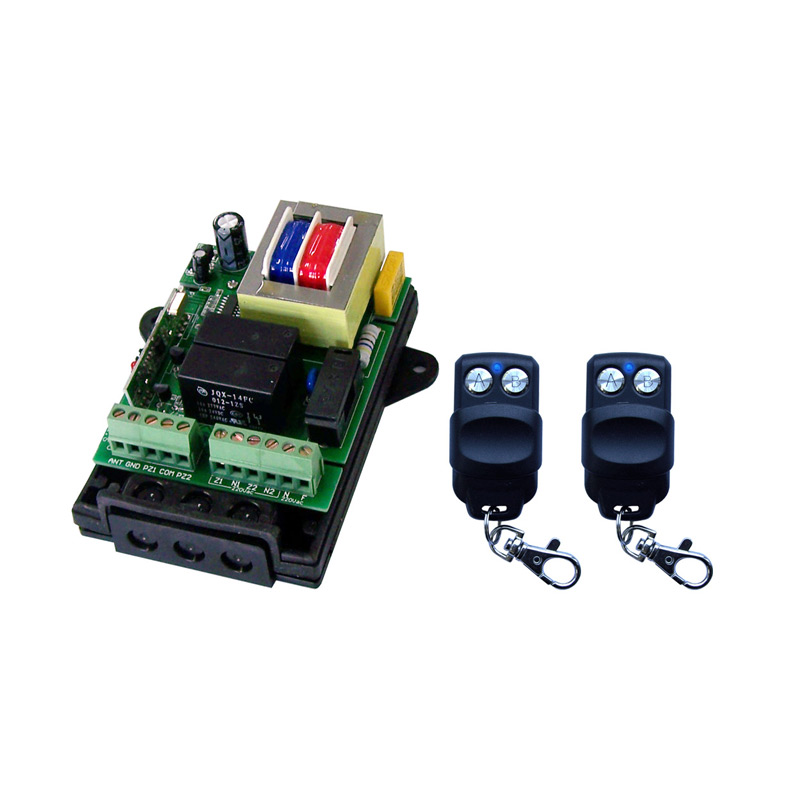

• Comes standard with two remote control keyfobs
• Adding outdoor remote control function for your light switch
• Add up to 128 remotes or universal transmitters
• IP55 weather/dust resistant; suitable for mounting with lighting
• 3 year warranty

Integrates with Watchguard™ wireless universal transmitters*:
PIRWOD Wireless outdoor passive-infrared detector
WREEDI Wireless reed switch indoors only
PIRW3 Wireless passive-infrared detector

* Universal transmitters require modification and are sold separately.

Suggested Products

2 Button Rolling Code Remote Control for ENSA-RS1R
ENSA-RS1R

Wireless Supervised PIR Detector
PIRW3

Wireless Supervised PIR Detector (Outdoor)
PIRWOD

Wireless Supervised Reed Switch/Universal Transmitter
WREEDI

Links and Downloads

Intelligent Energy Saving Switch Series Product Brochure (PDF) 0.86 MB

ENSA-RS1 Installation Manual (PDF) 1.77 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Frequency

433.92MHz fixed code

Included Remotes

Ingress Protection

IP55

Input Voltage

240VAC 50 ~ 60Hz

Maximum Codes

128

Maximum Rated Load

1000W

Operating Environment

-20 ~ 55°C

Programmable Outputs

2 relay outputs (latched or timed)

Range (LoS)

100m

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

210 mm

Height

120 mm

Depth

70 mm

Weight

0.50 kg
