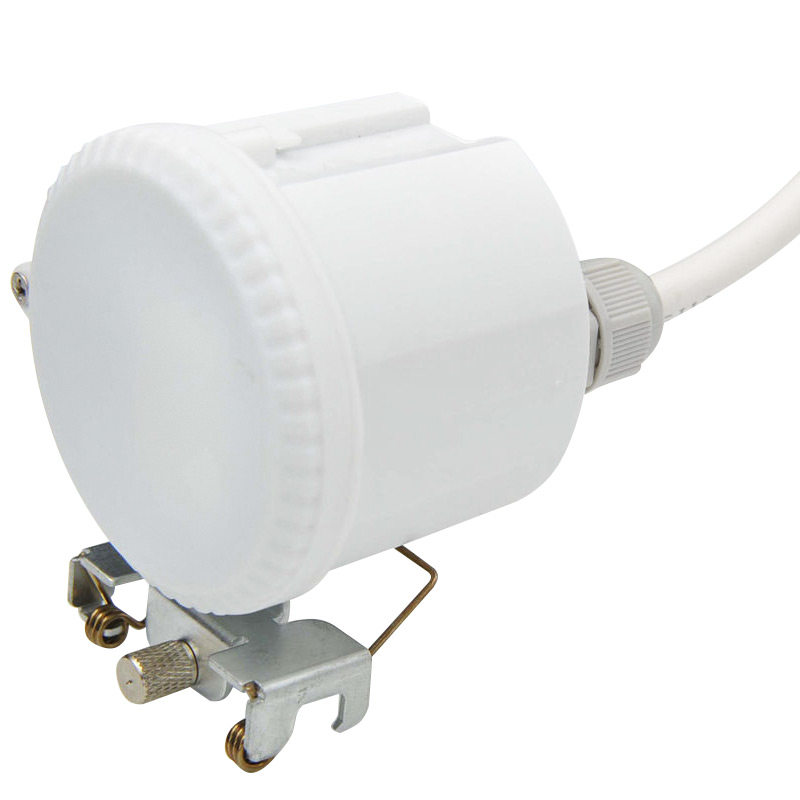

High Bay Microwave Sensor Intelligent Motion Activated Switch

Brand logo
SKU ENSA-MS5
Brand logo

High Bay Microwave Sensor Intelligent Motion Activated Switch

SKU ENSA-MS5

Stock may be limited. Please contact us for availability or for an alternative item.

The ENSA-MS5 is an intelligent sensor switch, designed for high ceiling environments. It features ambient light sensing, microwave motion detection and configurable on-time delay, so you may tailor light usage and energy consumption to your exact specifications.

Add three step energy saving to any light with sensor switches:
1) Daylight sensor: Activates motion sensor when lux levels fall below limit
2) Motion sensor: Detects movement, turns light on only when necessary
3) On-timer: Light-on duration is set only as long as is required

Product features:
• Automatically activate and deactivate lighting for energy efficiency

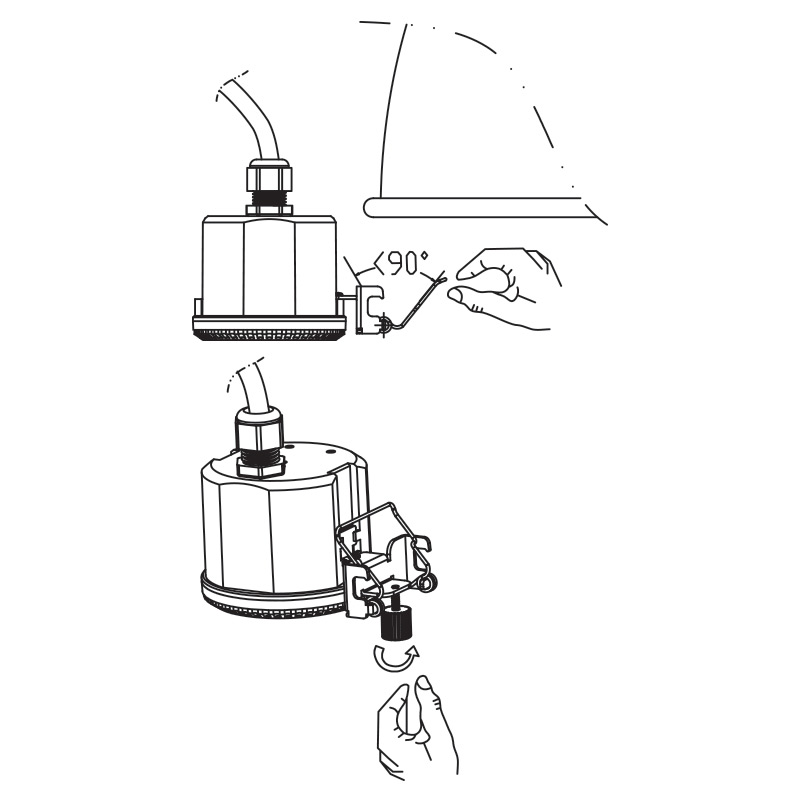

• Supplied bracket allows complete integration with high bay LED lights
• Adjustable sensors: Dimming (10~50%) / Motion sensitivity (0.5~3m/s) / On-timer (5s~30min)
• 360° circle / Ø16m (15m height) microwave detection
• Purpose built for high factory ceilings, IP65 rated for outdoor use
• 3 year warranty

Suggested Products

Suggested product image
Professional 120W LED High Bay Light (6500K)
LHB-A120-CW
Suggested product image
Professional 200W LED High Bay Light (6500K)
LHB-A200-CW

Links and Downloads

ENSA Sensor Switch Series Product Brochure (PDF) 0.96 MB
ENSA-MS5 User Manual (PDF) 3.19 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Features
Daylight Sensor
Yes
Motion Sensor Type
Microwave
Electrical
Input Voltage
220 ~ 240VAC 50Hz
Power Consumption (Sensing Mode)
0.4W
Max. Rated Load (Resistive/Inductive)
1200W / 800W
Detection
Daylight Sensing
50 ~ 200 Lux
Motion Detection Area
360° circle (Ø16m, 15m height)
Motion Detection Adjustment
100% / 50%
Recommended Installation Height
4 ~ 15m
Motion Detection Speed
0.5 ~ 3m/s
On-timer Delay
5s ~ 30min
Stand-by Period
5s / 5min / 10min / 30min / 60min / Infinite
Stand-by Dimming
50% / 30% / 20% / 10%
General
Ingress Protection
IP65
Operating Environment
-20 ~ 40°C / <93% Relative humidity
Mounting Type
Ceiling/Wall
Dimensions
Ø72 x 60mm
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
110 mm
Height
105 mm
Depth
100 mm
Weight
0.25 kg
