Ceiling Mount Microwave Sensor Motion Activated Switch

Brand logo
SKU ENSA-MS2
Brand logo

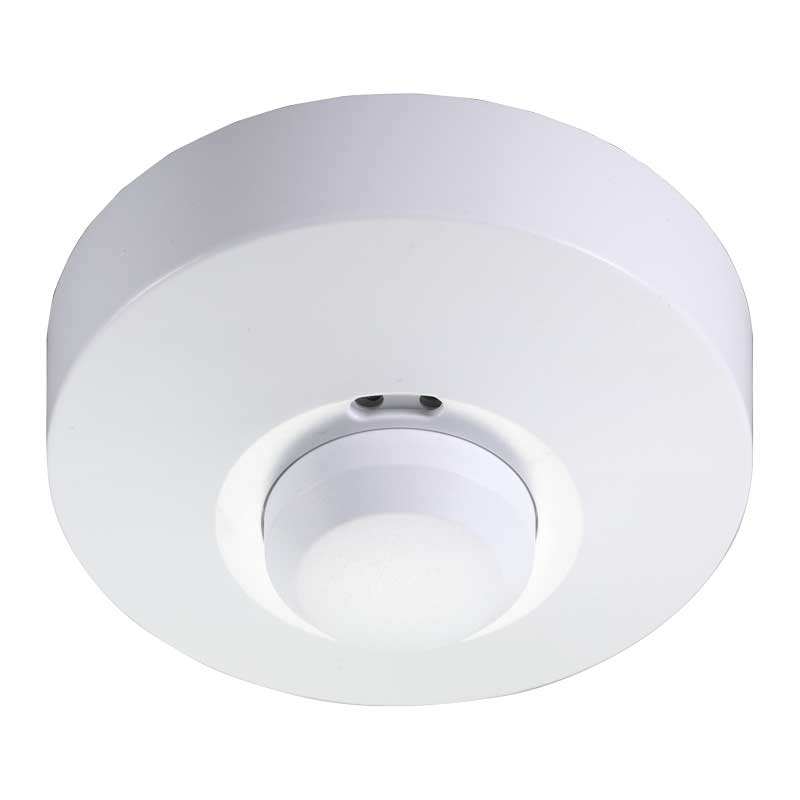

Ceiling Mount Microwave Sensor Motion Activated Switch

SKU ENSA-MS2

The ENSA-MS2 is an intelligent sensor switch, designed for indoors ceiling mounting. It features configurable ambient light sensing, microwave motion detection and on-time delay, so you may tailor light usage and energy consumption to your exact specifications.

Add three step energy saving to any light with sensor switches:
1) Daylight sensor: Activates motion sensor when lux levels fall below limit
2) Motion sensor: Detects movement, turns light on only when necessary
3) On-timer: Light-on duration is set only as long as is required

Product features:
• Automatically activate and deactivate lighting for energy efficiency
• Adjustable sensors: Daylight (2~2000lx) / Motion (1~8m) / On-timer (10s~12min)
• 360° circle / Ø1 ~ 8m microwave detection
• Circular ceiling mount, for indoor use only
• 3 year warranty

Links and Downloads

ENSA Sensor Switch Series Product Brochure (PDF) 0.96 MB
ENSA-MS2 Installation Manual (PDF) 0.21 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Features
Daylight Sensor
Yes
Motion Sensor Type
Microwave
Electrical
Input Voltage
220 ~ 240VAC 50Hz
Power Consumption (Sensing Mode)
0.9W
Max. Rated Load (Resistive/Inductive)
1200W / 300W
Detection
Daylight Sensing
3 ~ 2000 Lux
Motion Detection Area
360° circle (Ø1 ~ 8m adjustable)
Motion Detection Adjustment
100% to 12% (knob)
Recommended Installation Height
1.5 ~ 3.5m
Motion Detection Speed
0.6 ~ 1.5m/s
On-timer Delay
10s ~ 12min
Stand-by Period
N/A
Stand-by Dimming
N/A
General
Ingress Protection
IP20
Operating Environment
-20 ~ 40°C / <93% Relative humidity
Mounting Type
Ceiling
Dimensions
Ø100 x 40mm
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
100 mm
Height
100 mm
Depth
55 mm
Weight
0.20 kg
