Corded Light Control Sensor

Brand logo
SKU ENSA-LC3
Brand logo

Corded Light Control Sensor

SKU ENSA-LC3

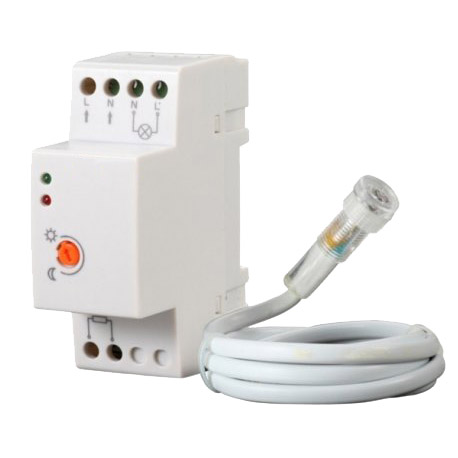

The ENSA-LC3 is a daylight sensor to control lights at dusk and dawn. The switch is ideal for use in conjunction with any light, but is especially useful when used with an energy efficient ENSA LED light. The ENSA-LC3 can multiply power cost savings by controlling your already energy-efficient light to turn on only when you need it.

Once installed, the daylight sensor measures ambient light levels (sensitivity for the daylight sensor can be adjusted on the unit). If the light levels fall below the set limit, the light control sensor is activated and the connected light will turn on. The daylight sensor is compact and corded, making outdoor installation a simple task.

The ENSA-LC3 has a 1m photocell lead, meaning that it can be taken away from where it is mounted to measure the light levels at a different location.

Product features:
• Boost your efficiency by maximising use of natural light
• Set target light levels to automate light dimming
• Adjustable daylight sensor (2~100lx)
• Small, corded sensor for flexible installation / DIN rail mountable
• IP65 weather-resistance rated photocell for outdoor installation
• 3 year warranty

Links and Downloads

Specifications

Electrical
Input Voltage
230VAC 50Hz
Dimming Range
2 ~ 100 Lux
Rated Current
20A
General
Ingress Protection
IP65 (Photocell only)
Operating Environment
-20 ~ 40°C / <93% Relative humidity
Recommended Install
Above the light (DIN rail mountable)
Dimensions
35 x 66 x 90mm
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
85 mm
Height
90 mm
Depth
90 mm
Weight
0.10 kg
