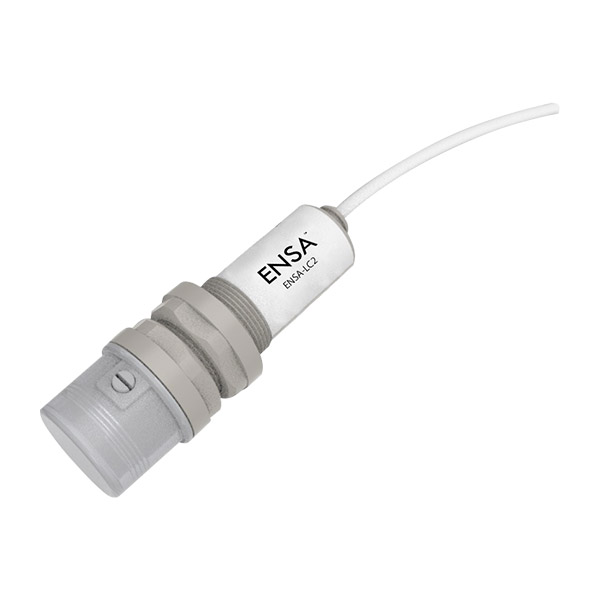

Daylight Harvesting Light Sensor

Brand logo
SKU ENSA-LC2
Brand logo

Daylight Harvesting Light Sensor

SKU ENSA-LC2

Stock may be limited. Please contact us for availability or for an alternative item.

Once installed with a compatible 1~10VDC dimming LED driver, the ENSA-LC2 daylight sensor can be set to dim or brighten your lights as per a set target light level. This is performed easily via a potentiometer on the sensor. As ambient light levels rise and fall during the day, the ENSA-LC2 controls the brightness of artificial lights to reach target light levels set via the potentiometer sensor.

Product features:
• Boost your efficiency by maximising use of natural light
• Add daylight harvesting to any dimmable lighting system
• Set target light levels to automate light dimming
• Compatible with most dimmable 0~10V LED drivers
• For indoor use only

Suggested Products

Suggested product image
Daylight Harvesting Light Sensor Motion Sensor
ENSA-MS4

Links and Downloads

ENSA Daylight Harvesting Sensor Datasheet (PDF) 0.68 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Electrical
Input Voltage
1 ~ 10VDC
Dimming Range
1 ~ 100%
Rated Current
50mA (maximum)
General
Ingress Protection
IP20
Operating Environment
0° ~ 45°C
Recommended Install
4m

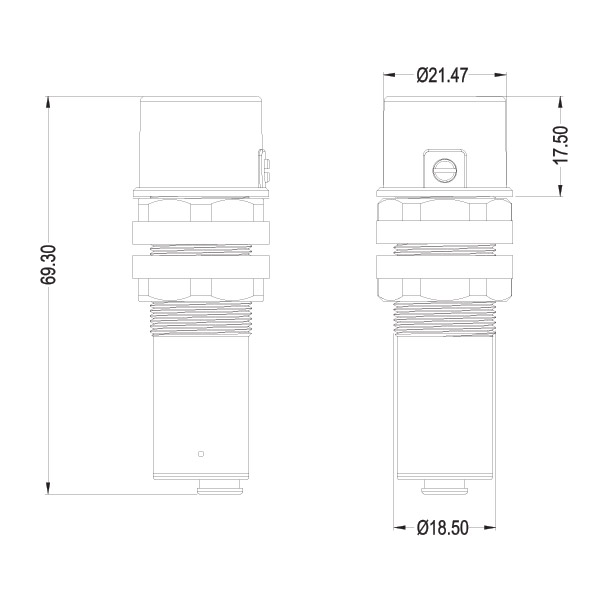

Dimensions
Ø22 x 70mm (800mm cable)
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
50 mm
Height
110 mm
Depth
30 mm
Weight
0.06 kg
