Light Control Sensor

Brand logo
SKU ENSA-LC1
Brand logo

Light Control Sensor

SKU ENSA-LC1

Stock may be limited. Please contact us for availability or for an alternative item.

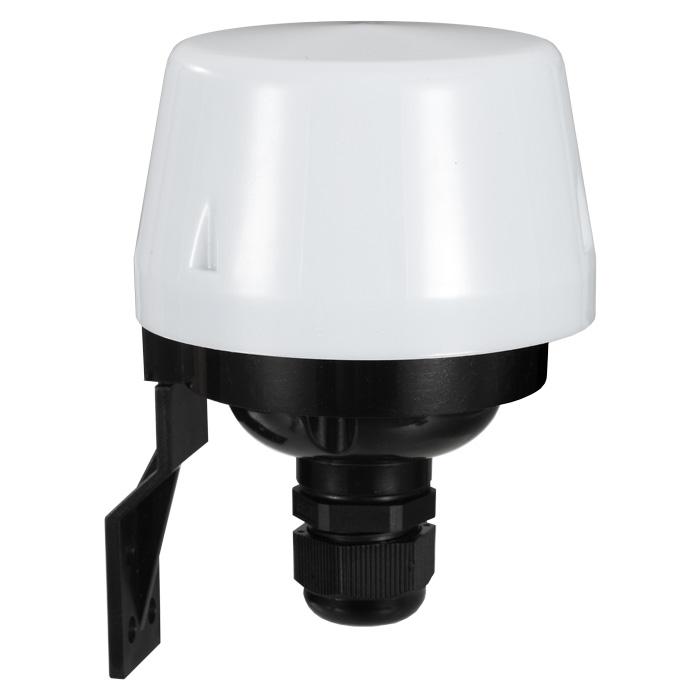

The ENSA-LC1 is a daylight sensor to control lights at dusk and dawn. The switch is ideal for use in conjunction with any light, but is especially useful when used with an energy efficient ENSA LED light. The ENSA-LC1 can multiply power cost savings by controlling your already energy-efficient light to turn on only when you need it.

Once installed, the daylight sensor measures ambient light levels (sensitivity for the daylight sensor can be adjusted on the unit). If the light levels fall below the set limit, the light control sensor is activated and the connected light will turn on. The daylight sensor is compact and corded, making outdoor installation a simple task.

Product features:
• Boost your efficiency by maximising use of natural light
• Set target light levels to automate light dimming
• Adjustable daylight sensor (5~50lx)
• IP44 weather-resistance rated for outdoor installation
• 3 year warranty

Links and Downloads

ENSA Sensor Switch Series Product Brochure (PDF) 0.96 MB
ENSA-LC1 Installation Manual (PDF) 0.18 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Electrical
Input Voltage
220 ~ 240VAC 50Hz
Dimming Range
5 ~ 50 Lux
Rated Current
10A
General
Ingress Protection
IP44
Operating Environment
-20 ~ 40°C / <93% Relative humidity
Recommended Install
Above the light
Dimensions
Ø82 x 108mm
Warranty (Years)
3

Shipping Weight and Dimensions

Includes product packaging

Width
90 mm
Height
90 mm
Depth
90 mm
Weight
0.17 kg
