Large Surface Mount Reed Switch

Brand logo
SKU DSRHDW2
Brand logo

Large Surface Mount Reed Switch

SKU DSRHDW2

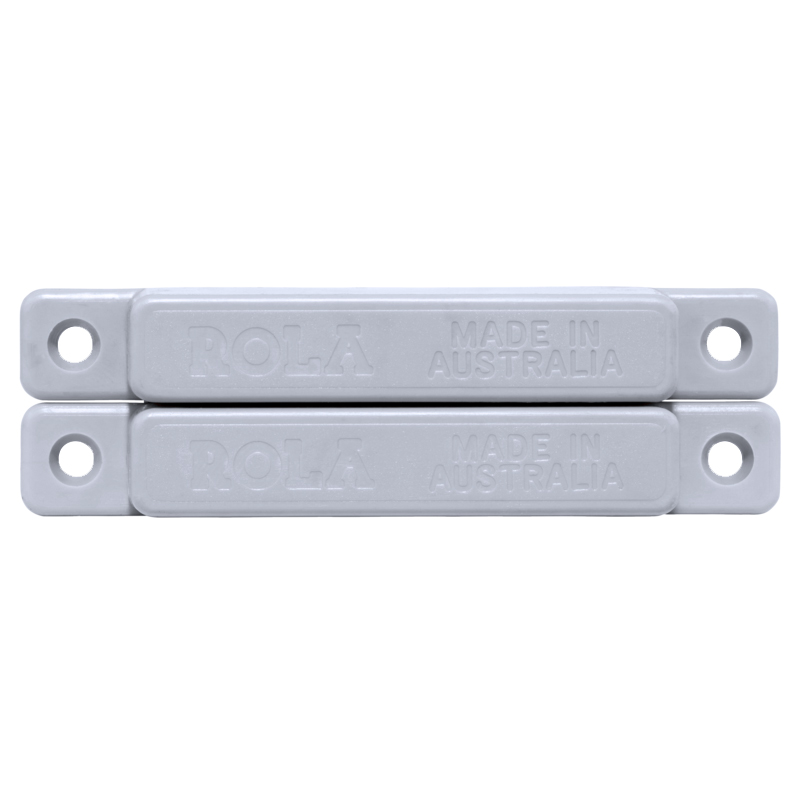

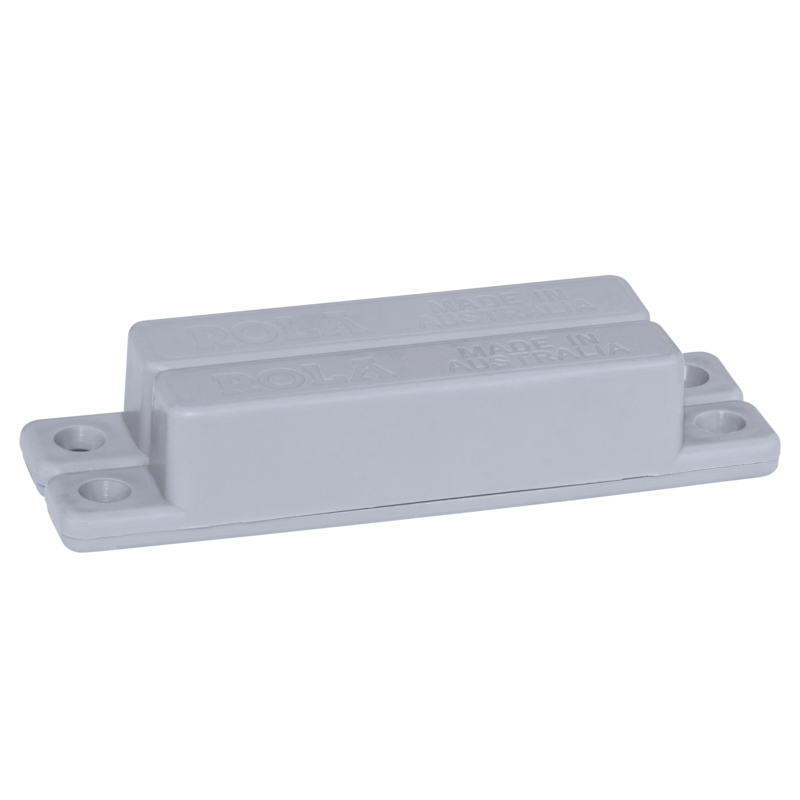

The DSRHDW2 is a surface mount reed switch designed for window and door applications.

Product features:
• Epoxy sealed surface mounted reed switch
• N/C contact, SPST
• Dimensions: 90mm x 13mm x 18mm
• 50mm gap
• White colour

Links and Downloads

DSRHDW2 Datasheet (PDF) 1.05 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Contact
N/C
Dimensions
90mm x 13mm x 18mm
Gap
50mm
Max Current
500mA
Max Rating
10W
Max Resistance
0.2Ohm
Max Voltage
100VDC
Type
Reed Switch
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
30 mm
Height
90 mm
Depth
20 mm
Weight
0.04 kg
