Figure 8 Cable | 100m | Red & Black | 48/0.20mm | 1.50mm²

Brand logo
SKU DF8C3
Brand logo

Figure 8 Cable | 100m | Red & Black | 48/0.20mm | 1.50mm²

SKU DF8C3

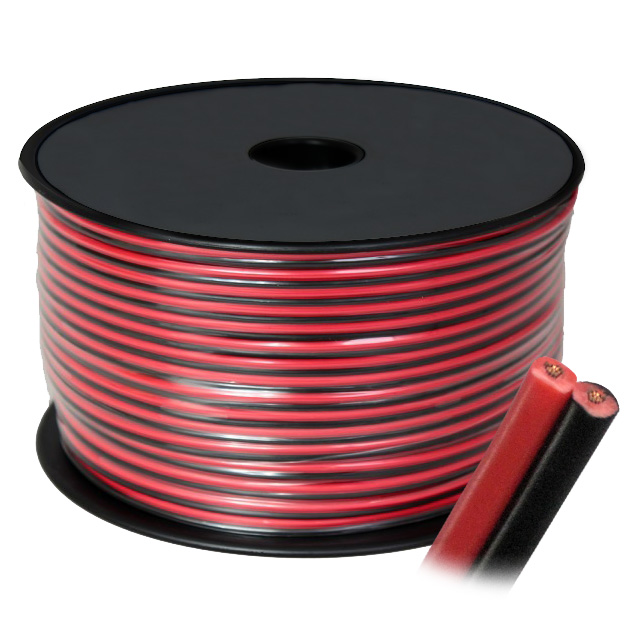

Watchguard Figure-8 cable on a plastic reel 100m in length. This twin type cable with flexible PVC insulation is perfect for audio equipment, speakers, electronics, security systems and more.

• 100m length on plastic reel
• 2-core pure copper conductors
• 48/0.20mm conductor size (48 strand, Ø0.20mm)
• 1.50mm² nominal conductor area
• Nominal outer diameter 2.7mm x 5.6mm
• Red and black PVC insulation sheath
• 450/750V voltage rating
• 75°C maximum rated temperature

Links and Downloads

CE/ RCM Certificate
RoHS Certificate

Specifications

Cable
Cable Type
Figure 8
Cable Length (Metres)
100
Cable Colour
Red & Black
Connection
Termination
Unterminated
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
200 mm
Height
200 mm
Depth
120 mm
Weight
5.20 kg
