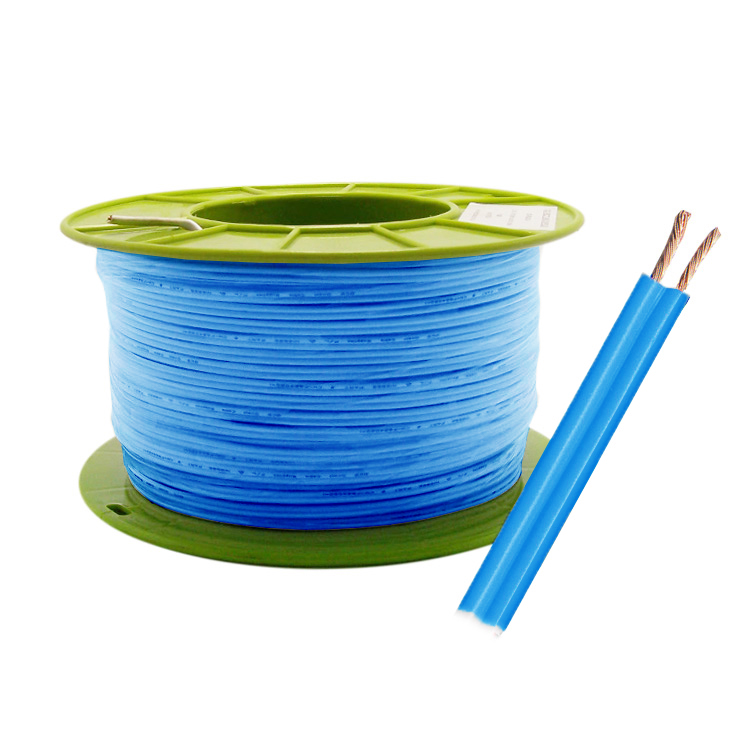

100m Figure 8 Cable (24/0.20mm)

Brand logo
SKU DF8C2
Brand logo

100m Figure 8 Cable (24/0.20mm)

SKU DF8C2

• Stranding No.: 24/0.20mm
• Nominal O/D: 5.2x2.6mm
• Insulation Thickness 0.7mm
• Amp Rating: 2.5
• Max. Conductor DC. Resistance @ 20°C ©/km: 26
• Min. Insulation Resistance (MΩ/KM): 0.011
• Voltage: 300V

Links and Downloads

Specifications

Cable
Cable Type
Figure 8
Cable Length (Metres)
100
Cable Colour
Blue
Connection
Termination
Unterminated
Other
AWG (Approx)
32
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
150 mm
Height
200 mm
Depth
200 mm
Weight
3.00 kg
