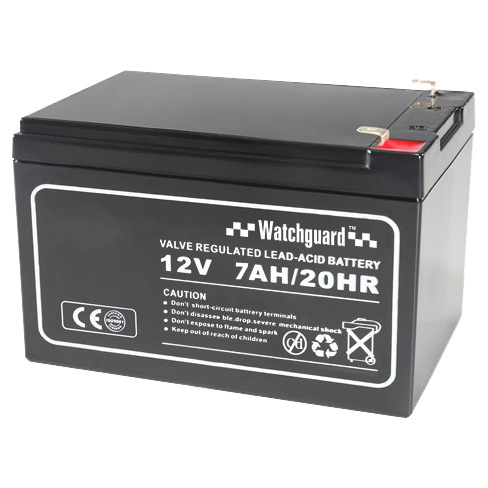

12VDC 7Ah Sealed Lead Acid Battery

SKU D12V7A

12VDC 7Ah Sealed Lead Acid Battery

SKU D12V7A

The D12V7A is a sealed lead acid battery with a rated capacity of 7Ah.

Product features:
• Maintenance free sealed lead acid battery
• Non-spillable construction design
• High quality and high reliability
• Low self discharge characteristic
• Power failure backup battery
• 12VDC voltage / 7.0 AH capacity
• 5 year lifespan

Suggested Products

Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864

Links and Downloads

DV12V7A Product Brochure (PDF) 0.73 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Capacity

7Ah

Charge Method (25°C)

Max Charge Current: 2.8A / Cycle Use: 14.4-15V (-30mV/°C) / Float use: 13.5-13.8V (-20mV/°C)

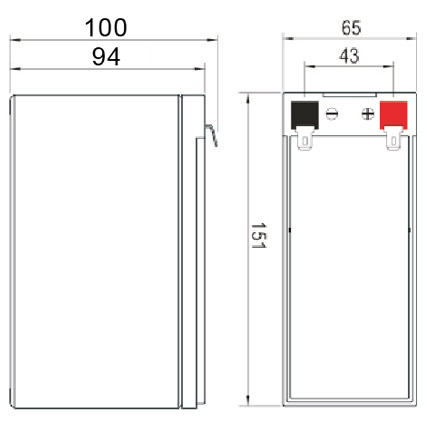

Dimensions

151mm x 65mm x 94mm

Internal Resistance

Full charged at 25°C: 28 mOhms

Lifespan

≤5 years

Material

ABS Plastic

Max. Discharge Current

105A (5S)

Operating Temperature

Discharge: -15~50°C / Charge: 0~40°C / Storage: -15~40°C

Rated Capacity

7Ah 20hr Rate (0.350A to 10.8V)

Self Discharge

3% of capacity declined per month at 20˚C

Terminal

Voltage

12V

Weight

2.05kg

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

151 mm

Height

94 mm

Depth

65 mm

Weight

2.00 kg
