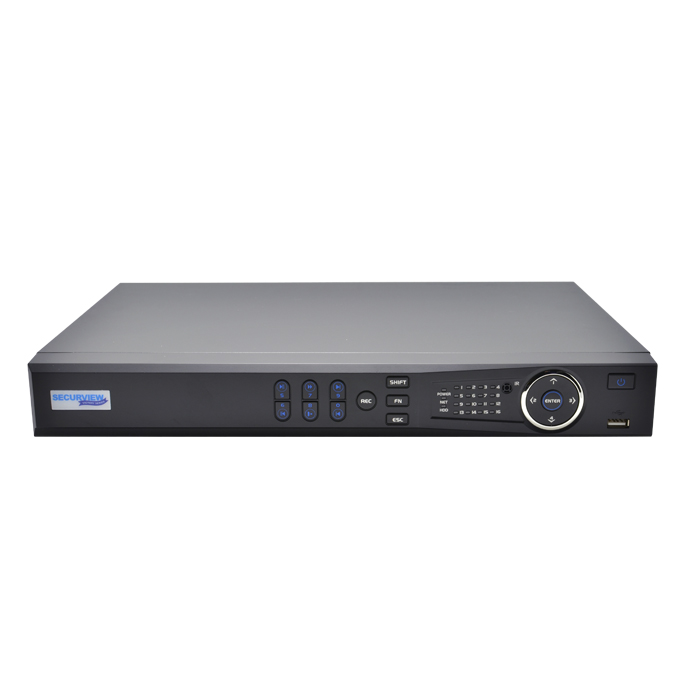

8 Channel 1080p HDCVI Digital Video Recorder (2TB Hard Drive)

Brand logo
SKU CVR8V3-2T
Brand logo

8 Channel 1080p HDCVI Digital Video Recorder (2TB Hard Drive)

SKU CVR8V3-2T

Stock may be limited. Please contact us for availability or for an alternative item.

The CVR8V3 is an 8 channel HDCVI (high definition composite video interface) DVR capable of 1080p full HD and 720p HD recording over coaxial cable. It features two internal SATA ports for up to 8TB of HDD storage and has HDMI and VGA video outputs. This DVR also features comprehensive remote view capabilities (iOS, Android & Windows Phone) and backup functionality (USB/network).

Victory Series DVRs are the ideal HD video over coax solution, utilising the HDCVI video transmission standard to deliver video, audio and control data across a single coaxial cable. Thanks to this technology, the CVR8V3 offers reliable, long distance, full HD 1080p video transmission up to 300m with low latency and excellent anti-interference properties (720p up to 500m / using 75-3 coax).

Victory Series systems can also be implemented into an existing analogue systems without having to re-run coaxial cable. The CVR8V3 can even record existing IP (up to 2 channels at full HD 1080p) and analogue cameras (8 channels at D1), making existing low resolution to high definition surveillance upgrades easier than ever before.

When recording at 1080p, the CVR8V3 delivers more than five times the image resolution compared to traditional D1 (720 x 576) analogue systems and over 20x vs CIF systems (352 x 288). Go beyond analogue, capture fine detail and ensure you have usable evidence when it matters most.

Links and Downloads

CVR8V3 Product Brochure (PDF) 0.76 MB
CVRxV3 - Quick Installation Guide (PDF) 0.64 MB
HDD Space Calculator 6.17 MB
Smart PSS V2.0 (Mac) 90.05 MB
CVR_Firmware_TypeM_20170417 13.92 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Input
8 channels
Alarm Output
3 channels
Audio Input
4 channel RCA
Audio Output
1 channel RCA
Backup Modes
USB Device / Network
Bit Rate
96~4096Kb/s
Camera Configuration (Coaxial)
8 channels up to 960H/25fps (analogue) / 1080p/12fps (HDCVI)
Camera Configuration (IP)
2 channels up to 1080p/12fps (substitutes coaxial)
Dimensions
375mm × 285mm × 55mm (1U)
Display Resolution
1920× 1080, 1280× 1024, 1280× 720, 1024× 768, 800× 600
Display Split
1 / 4 / 8 / 9
Ethernet
RJ-45 port (10/100M)
Internal HDD
2 SATA port, up to 8TB
Main Processor
Embedded processor
Max. User Access
128 users
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, P2P, IP Filter
Operating Environment
-10 ~+55°C / 10~90%RH / 86~106kpa
Operating System
Embedded Linux OS
OSD Menu
Camera title, time, video loss, camera lock, motion detection & recording
Power Consumption
15W (without HDD)
Power Supply
DC12V/4A
Privacy Masking
4 rectangular zones per camera
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Record Modes
Manual / Schedule (Regular [Continuous], MD) / Stop
Record Rate
Main: 1080p (1~15fps), 720p (1~25/30fps) / Sub: D1 (1~6/7fps)
Record Resolution
1080p (1920 x 1080) / 720p (1280 x 720)
Remote View
iOS (iPhone, iPad); Android devices, Windows Phone
RS232
N/A
RS485
1 port, for PTZ Control
Search Modes
Time/Date; Motion detection; Exact search (to the second)
Sync Playback
1 / 4 / 9
Trigger Events
Recording; PTZ; predefined tour; push video notification; email notification; FTP upload; internal buzzer; and screen tip overlay
Two-way Talk
Reuse channel 1 audio input/output
USB Interface
2 ports (1 Rear), USB2.0
Video Detection
Motion detection (zones: 396 [22 × 18]) / Video loss / Camera blank
Video Input
8 channel BNC
Video Output
1 HDMI / 1 VGA
Video/Audio Compression
H.264 / G.711
Weight
2.35kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
140 mm
Height
430 mm
Depth
360 mm
Weight
3.50 kg
