Professional Series 8 Channel 8.0MP HDCVI Digital Video Recorder

Brand logo
SKU CVR8PRO3
Brand logo

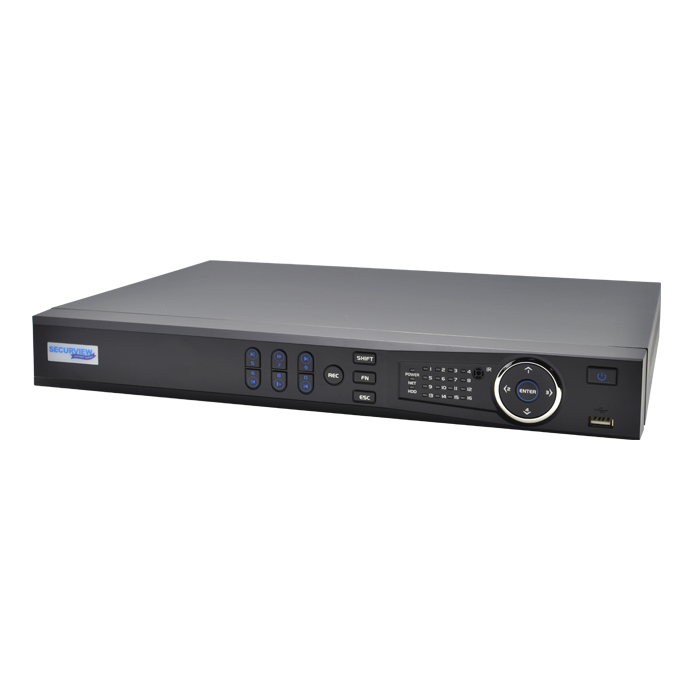

Professional Series 8 Channel 8.0MP HDCVI Digital Video Recorder

SKU CVR8PRO3

Available by special order only. Please contact us for lead times.

The CVR8PRO3 8 Channel HDCVI DVR delivers Ultra HD broadcast quality surveillance over coax. Rapidly transform low-resolution surveillance into high performing HD CCTV with full support for IP & analogue video inputs, all using existing coaxial cabling.

Product features:
• Records 8 channels up to 8.0MP (3840 x 2160) at 7fps
• Supports H.265+ high efficient video compression
• 2 x SATA ports up to 10TB, max. 20TB HDD capacity
• Support for HDCVI, Analogue and IP video inputs
• Add 4 additional IP channels up to 8.0MP resolution
• Up to 700m video transmission distance over coaxial cable
• Configure iOS/Android remote view in seconds via QR code
• HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output
• Backup via external USB device or local network
• Quiet smart fan auto adjusts with CPU temperature

Suggested Products

Suggested product image
Professional Series 16 Channel 8.0MP HDCVI Digital Video Recorder
CVR16PRO3
Suggested product image
1000VA Smart Online UPS - 900W
UPS-B1000-O
Suggested product image
HDCVI to HDCVI / HDMI / VGA / Composite Video Converter
VSCVIDECODER
Suggested product image
BNC Video Ground Loop Isolator
VSGLI

Links and Downloads

CVRPRO Series DVRs Datasheet (PDF) 0.98 MB
HDCVI DVR Installer Manual v4.0 (PDF) 18.25 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
CVR_Firmware_Type1B_20221124 45.35 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux
Video Input
8 channel BNC
Audio In/Out
1 channel input / 1 channel output
Two-way Talk
Reuse channel 1 audio input/output
Internal HDD
2 x SATA ports up to 10TB, max. 20TB HDD capacity
USB Interface
2 ports: 1x USB2.0, 1x USB3.0
Auxiliary Inputs
1 x RS485 port (for PTZ)
Power Supply
12VDC / 4A
Power Consumption
<10W
Operating Environment
-10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH
Dimensions
375mm×287mm×53mm
Rackmountable
No
Rackmount Unit
1RU
Weight
1.5kg (without HDD)
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Composite / IP
Coax Input Support
8 channels
IP Input Support
12 channels (8 substitute, 4 additional)
IP Input Max. Resolution
8.0MP
IP Input Max. Bandwidth
48Mbps
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
3840 x 2160
Display Split
1/4/8/9
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Maximum Resolution
8.0MP (3840 x 2160)
Frame Rate (Main)
4K (1~7fps); 6.0MP (1~10fps); 5MP (1~12fps); 4MP/3MP (1~15fps)
Frame Rate (Sub)
960H (1~15fps)
Frame Rate (Third)
N/A
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
32Kbps ~ 6144Kbps Per Channel
Record Modes
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Features
Alarm Input / Output
N/A
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Playback Sync
1/4/8/9
Search Modes
Time /Date, Alarm, MD and Exact Search (accurate to second)
Intelligent Functions
IVS(Tripwire / Intrusion, 4 Channels) Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Backup Modes
USB Device / Network
Network
Ethernet
1x RJ-45 port (1000M)
Network Functions
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
435 mm
Height
363 mm
Depth
140 mm
Weight
2.80 kg
