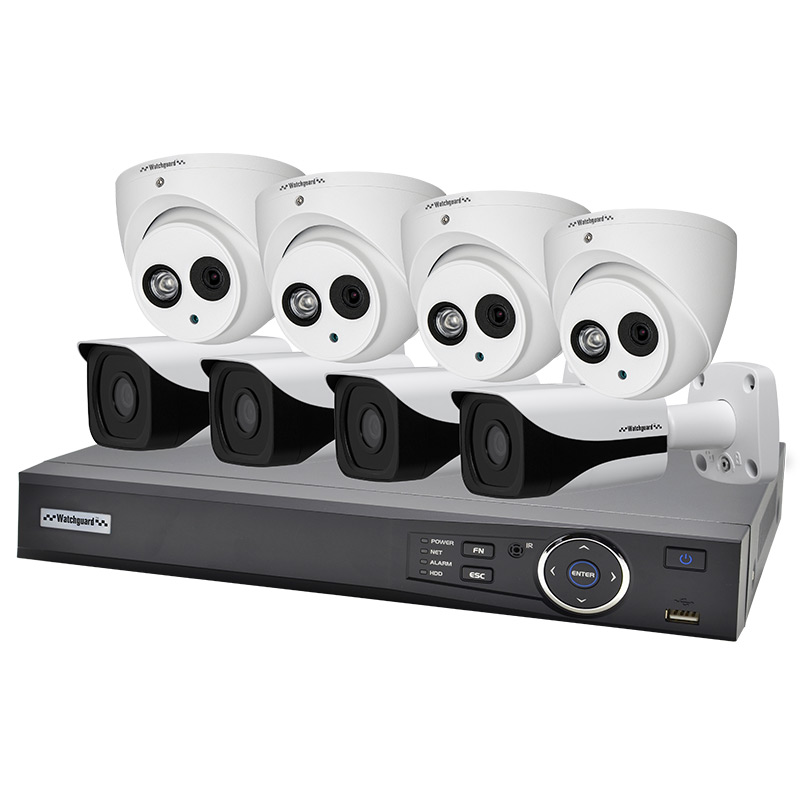

8 Channel 720p HDCVI Compact Surveillance Kit (4 Domes, 4 Bullets)

SKU CVR8COMPACK

8 Channel 720p HDCVI Compact Surveillance Kit (4 Domes, 4 Bullets)

SKU CVR8COMPACK

Available by special order only. Please contact us for lead times.

Watchguard™ Compact Series HDCVI Kits are cost-effective, ready-to-install surveillance systems, ideal for homes and small businesses. Achieve twice the image resolution of traditional D1 analogue with these all-in-one surveillance packages.

This kit includes a compact 8 channel DVR with a preinstalled 2TB surveillance hard drive and eight 1.0MP HDCVI cameras with infrared for surveillance in total darkness. The system is capable of 720p HD (1280 x 720) recording at 15fps, nearly double the resolution of traditional D1 resolution analogue systems (720 x 576).

Package includes:
• 1 x 8 Channel Compact DVR capable of recording 720p at 15fps
• 1 x Pre-installed 2TB surveillance hard disk drive
• 4 x 1.0MP 50m infrared 3.6mm fixed lens dome cameras
• 4 x 1.0MP 20m infrared 3.6mm fixed lens bullet cameras
• Video/power camera leads: 4 x 10m, 2 x 20m, 2 x 30m
• 1 x 1.5m CAT5 patch cable for networking
• 1 x 12VDC 5A power supply
• 1 x 5-way power splitter & 4-way power splitter
• 1 x 1m HDMI cable for video output
• 1 x USB Mouse

Suggested Products

Compact Series 8 Channel 720p HDCVI Digital Video Recorder
CVR8EV3

19" Acer 1366 x 768 LCD Monitor (TN)
LCDACER19

HDMI to HDCVI Video Converter
VSCVIENCODER

Links and Downloads

CVRxCOMPACK Series Product Brochure (PDF) 1.38 MB

Smart PSS V2.0 (Mac) 90.05 MB

HDCVI DVR Installer Manual v4.0 (PDF) 18.25 MB

HDCVI DVR Quick Start Guide (PDF) 2.88 MB

CVR_Firmware_Type1C_20221124 45.35 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Alarm Input/Output

N/A

Audio Input/Output

1/1

Backup Modes

USB Device / Network

Bit Rate

1~6144Kb/s

Camera Configuration (Coaxial)

8 channels up to 720p/15fps (HDCVI, HDTVI, AHD), 960H/30fps (analogue)

Camera Configuration (IP)

10 channels up to 5MP (replaces up to 8 x BNC inputs)

Dimensions

260mm x 220mm x 40mm (1U)

Display Resolution

Configurable from 1920 x 1080 to 1024 x 768

Display Split

1 / 4 / 8 / 9 / 16

Ethernet

RJ-45 port (10/100M)

Internal HDD

1 SATA port, up to 6TB

Max. User Access

128 users

Operating Environment

-10 ~55°C / 10~90%RH / 86~106kpa

Power Consumption

10W (without HDD)

Power Supply

DC12V/2A

Record Interval

1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s

Record Modes

Manual / Schedule (Regular [Continuous], MD) / Alarm / Stop

Record Resolution

Configurable from 720p (1280 x 720) to CIF (352 x 288)

RS232

N/A

RS485

1 port

Two-way Talk

Reuse channel 1 audio input/output

USB Interface

2 ports: Front USB2.0

Video Detection

MD zones: 396 (22 × 18) / Video loss / Camera blank

Video Input

8 channel BNC

Video Output

1 HDMI / 1 VGA

Weight

0.75kg (without HDD)

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

500 mm

Height

450 mm

Depth

37 mm

Weight

10.90 kg
