General
Main Processor
Embedded Processor
Operating System
Embedded Linux

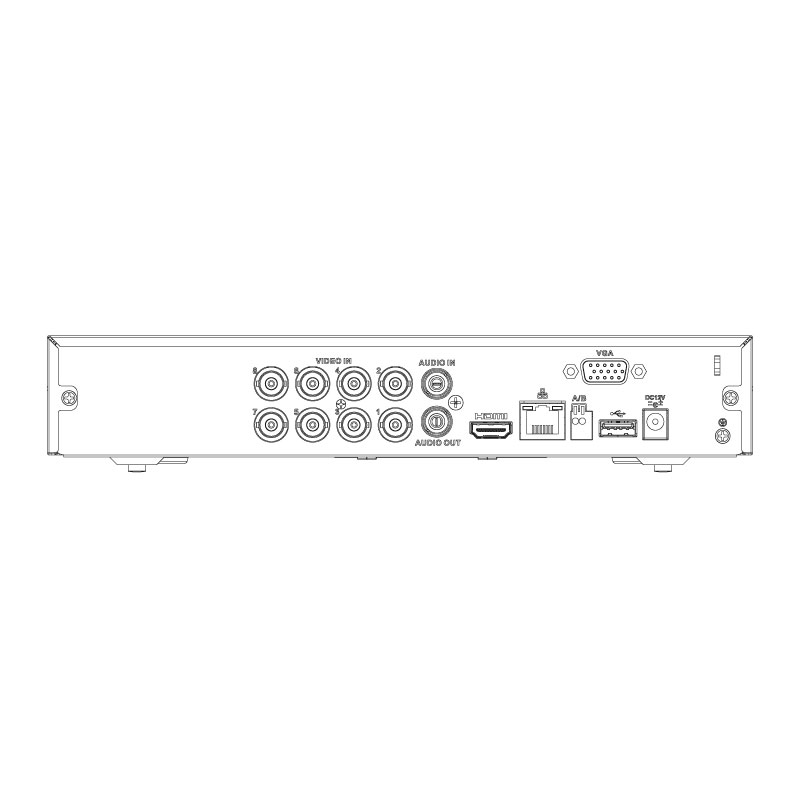

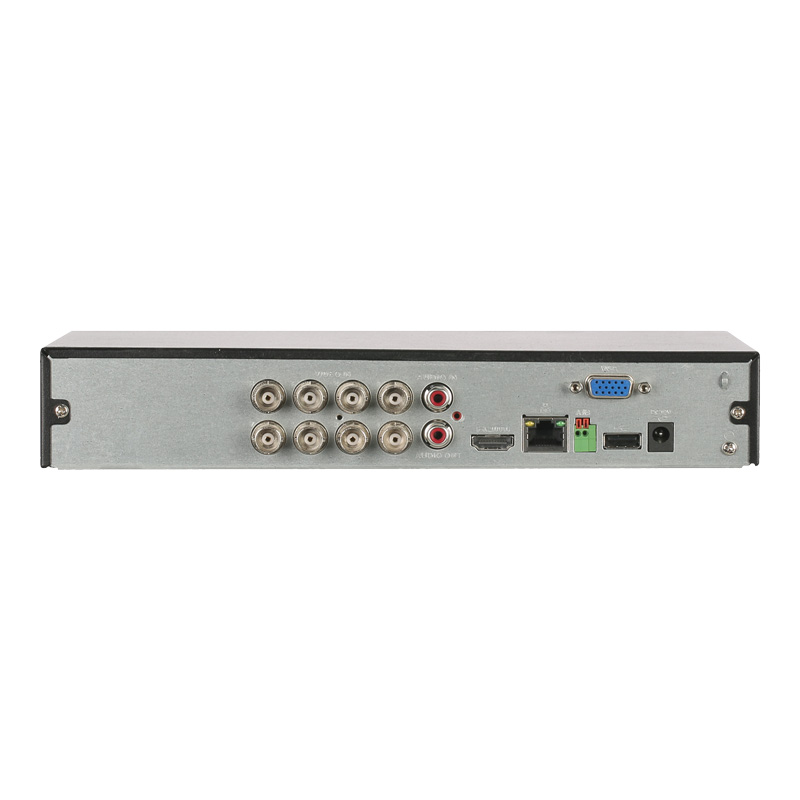

Video Input
8 channel BNC
Audio In/Out
1 input / 1 output
Two-way Talk
Reuse channel 1 audio input / output RCA
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Composite / IP
Coax Input Support
8 channels up to 8.0MP/7fps (HDCVI, HDTVI, AHD), 960H/25fps (analogue)
IP Input Support
8 channels
IP Input Max. Resolution
8.0MP
IP Input Max. Bandwidth
128Mbps
Display
Video Output
1 x HDMI, 1 x VGA
Display Resolution
3840 x 2160 to 1280 x 720
Display Split
1/4/8/9 (16 with IP extension mode enabled)
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Maximum Resolution
Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
4K (1~7fps); 6.0MP (1~10fps); 5MP (1~12fps); 4MP/3MP (1~15fps) / 1080p (1 ~25fps)
Frame Rate (Sub)
960H (1 ~ 15fps)
Frame Rate (Third)
N/A
Video Compression
AI Coding / H.265+ / H.265 / H.264+ / H.264
Bit Rate
32Kbps ~ 6144Kbps Per Channel
Record Modes
Manual / Schedule (Regular, Continuous), Motion Detection, Video Loss, Alarm, Stop
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
AI Functions
AI Functions
Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)
Face Recognition
Performance (Face Recognition)
Max. 12 face pictures per second (modeling and comparing), Approx. 2 channels face recognition (BNC inputs only) (Performance varies depending on camera and resolution)
Stranger Mode
Detect strangers face (not in database)
AI Search (Face Recognition)
Up to 8 target face images at the same time
Database Management
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Database Application
Each database can be applied to video channels independently
Trigger Events (Face Recognition)
Buzzer, Voice Prompts, Email, snapshot, Recording, Alarm Out, PTZ activation, etc.
Perimeter Protection
Performance (Perimeter Protection)
2 Channels, 10 IVS rules for each Channel
AI Search (Perimeter Protection)
Search by target classification (Human, Vehicle)
Object Classification (Perimeter Protection)
Human / vehicle secondary recognition for tripwire and intrusion
Smart Motion Detection (SMD+)
Performance (SMD+)
8 Channels
AI Search (SMD+)
Search by target classification (Human, Vehicle)
Features
Alarm Input / Output
N/A
Trigger Events
Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; snapshot; internal buzzer; screen tip overlay; and voice prompt
Video Detection
MD zones: 396 (22 x 18) / Video loss / Tampering and Diagnosis
Playback Sync
1 / 4 / 9
Search Modes
Time/Date; Alarm; Motion detection; Exact search (to the second); Smart Search
Backup Modes
USB Device / Network
Network
Ethernet
1 x RJ-45 port (1000MB)
Network Functions
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P , IP Search
Max. User Access
128 users
Remote View
iOS (iPhone, iPad), Android devices
Storage
Internal HDD
1 x SATA port, up to 10TB HDD capacity
USB Interface
2 x USB ports (1 x USB 2.0 , 1 x USB 3.0)
Auxiliary Inputs
1 x RS485 port (for PTZ Control)
Environment
Power Supply
12VDC / 2A
Power Consumption
<10W (without HDD)
Operating Environment
-10 ~55°C / 10~90%RH
Rackmountable
No
Rackmount Units
1RU

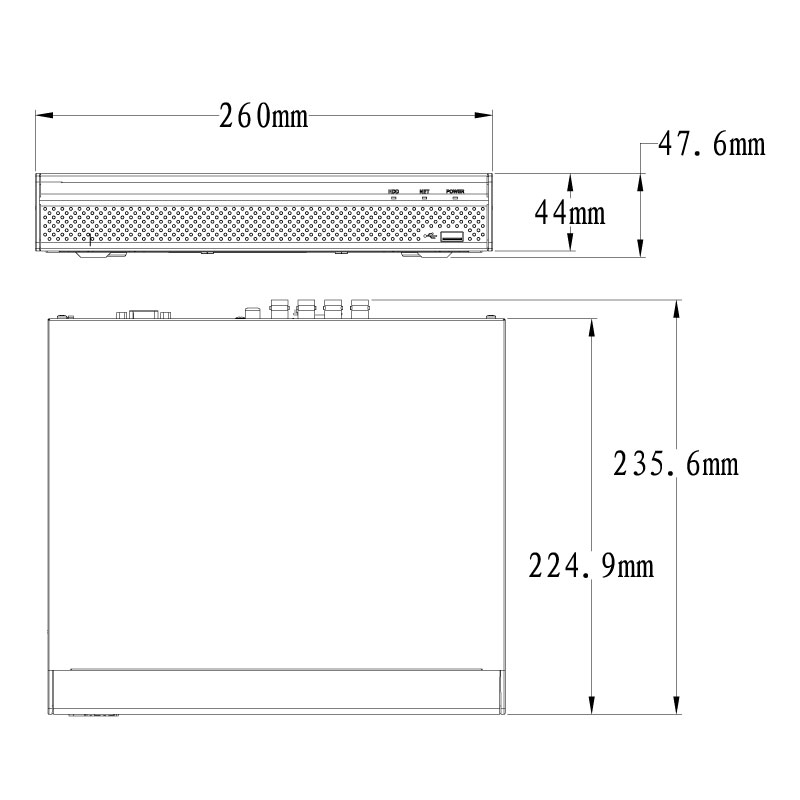

Dimensions
260mm x 238mm x 48mm (1U)
Weight
1.0kg (without HDD)
Warranty (Years)
4
