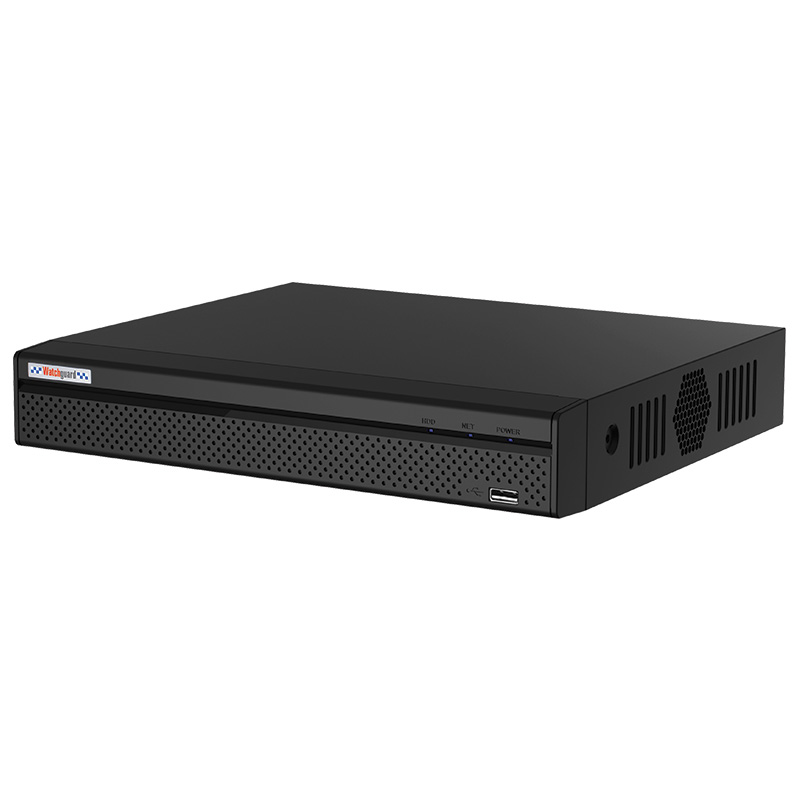

Compact Series 8 Channel 8.0MP HDCVI Digital Video Recorder

Brand logo
SKU CVR8COM
Brand logo

Compact Series 8 Channel 8.0MP HDCVI Digital Video Recorder

SKU CVR8COM

Stock may be limited. Please contact us for availability or for an alternative item.

The CVR8COM 8 Channel DVR sets the standard in HD over coax recording, delivering 4K / Ultra HD broadcast quality with the latest H.265+ video encoding for both impressive resolution and high storage efficiency.

Product features:
• Records 8 channels up to Ultra HD/8.0MP (3840 x 2160) at 7fps
• H.265 encoding for efficient storage & streaming
• 1 x SATA ports up to 10TB, max. 10TB HDD capacity
• Support for HDCVI, HDTVI, AHD, Analogue and IP video inputs
• Add 4 additional IP channels up to 8.0MP resolution
• Up to 700m video transmission distance over coaxial cable
• Configure iOS/Android remote view in seconds via QR code
• HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output
• Backup via external USB device or local network
• Quiet smart fan auto adjusts with CPU temperature

Suggested Products

Suggested product image
Compact Series 16 Channel 8.0MP HDCVI Digital Video Recorder
CVR16COM
Suggested product image
HDMI to VGA Adapter Cable
HDMITOVGA
Suggested product image
BNC Video Ground Loop Isolator
VSGLI

Links and Downloads

Watchguard CVRxCOM Series Datasheet (PDF) 0.59 MB
HDCVI DVR Installer Manual v4.0 (PDF) 18.25 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
CVR_Firmware_Type1C_20221124 45.35 MB
VIP Vision / Watchguard Mobile App Quick Start Guide (PDF) 2.57 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux OS
Video Input
8 channel BNC
Audio In/Out
1 / 1
Two-way Talk
Reuse channel 1 audio input / output RCA
Internal HDD
1 SATA port, up to 10TB total
USB Interface
2 ports: 1 x USB2.0, 1 x USB3.0
Auxiliary Inputs
1 x RS485 port (for PTZ)
Power Supply
12VDC/2A
Power Consumption
<10W (without HDD)
Operating Environment
-10 ~55°C / 10~90%RH

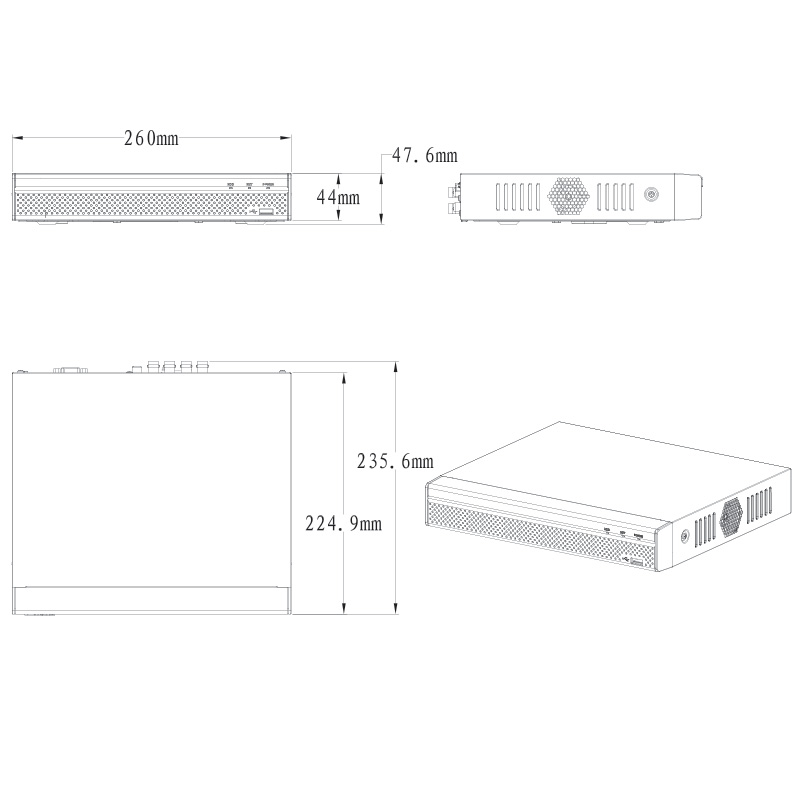

Dimensions
260 x 236 x 48mm (1U)
Rackmountable
No
Rackmount Unit
Compact 1RU
Weight
0.9kg (without HDD)
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Composite / IP
Coax Input Support
8 channels
IP Input Support
12 channels (8 substitute, 4 additional)
IP Input Max. Resolution
8.0MP
IP Input Max. Bandwidth
48Mbps
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
3840 x 2160 / 2560 x 1440 / 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
Display Split
1 / 4 / 8 / 9 / 16
OSD
Camera title, time, video loss, camera lock, MD & recording
Recording
Maximum Resolution
8.0MP (3840 x 2160) / 1080p (1920 x 1080)
Frame Rate (Main)
8.0MP (1~7fps), 4.0MP (1~15fps), 1080p/720p (1~25fps)
Frame Rate (Sub)
960H (1~6fps) / CIF (1~25fps)
Frame Rate (Third)
N/A
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
32~6144Kbps per channel
Record Modes
Manual / Schedule (Regular, Continuous), Motion Detection, Alarm, Stop
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Features
Alarm Input / Output
N/A
Trigger Events
Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; snapshot; internal buzzer; and screen tip overlay
Video Detection
MD zones: 396 (22 × 18) / Video loss / Camera blank
Playback Sync
1 / 4 / 9
Search Modes
Time/Date; Alarm; Motion detection; Exact search (to the second); Smart Search
Intelligent Functions
Face Detection, Tripwire, Abandoned/Missing Object
Backup Modes
USB Device / Network
Network
Ethernet
1 x RJ-45 port (1000M)
Network Functions
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P , IP Search
Max. User Access
128 users
Remote View
iOS (iPhone, iPad), Android devices
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
340 mm
Height
90 mm
Depth
310 mm
Weight
2.10 kg
