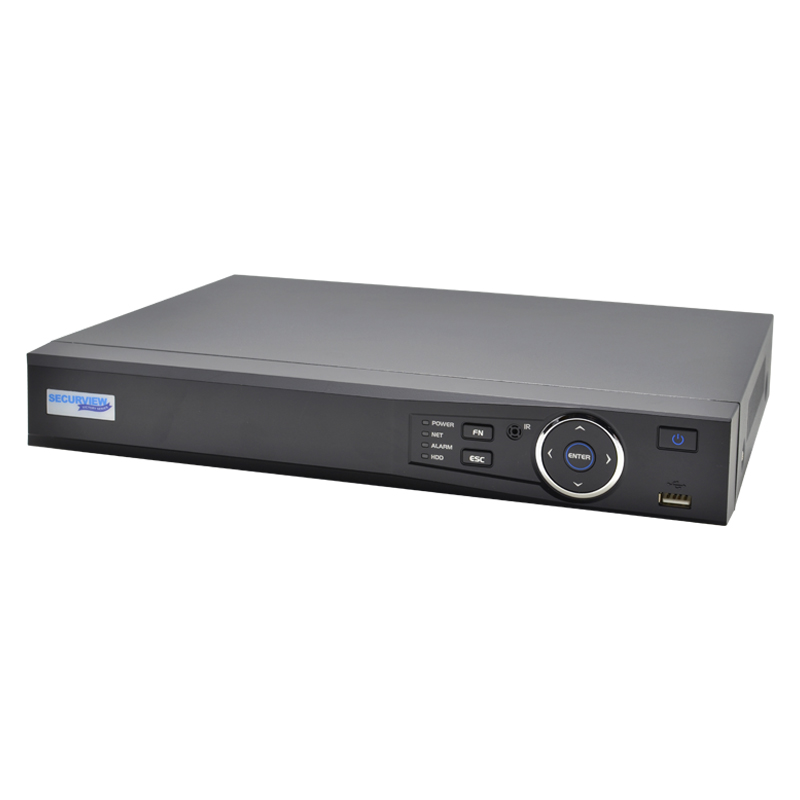

4 Channel 1080p HDCVI Digital Video Recorder (1TB Hard Drive)

Brand logo
SKU CVR4V3-1T
Brand logo

4 Channel 1080p HDCVI Digital Video Recorder (1TB Hard Drive)

SKU CVR4V3-1T

Stock may be limited. Please contact us for availability or for an alternative item.

The CVR4V3 is a compact 4 channel HDCVI (high definition composite video interface) DVR capable of 1080p full HD and 720p HD recording over coaxial cable. It features a single internal SATA port for up to 4TB of HDD storage and has HDMI and VGA video outputs. This DVR also features comprehensive remote view capabilities (iOS, Android & Windows Phone) and backup functionality (USB/network).

Victory Series DVRs are the ideal HD video over coax solution, utilising the HDCVI video transmission standard to deliver video, audio and control data across a single coaxial cable. Thanks to this technology, the CVR4V3 offers reliable, long distance, full HD 1080p video transmission up to 300m with low latency and excellent anti-interference properties (720p up to 500m / using 75-3 coax).

Victory Series systems can also be implemented into an existing analogue system without having to re-run coaxial cable, making traditional analogue to megapixel HD-over-coax CCTV upgrades easier than ever before.

When recording at 1080p, the CVR4V3 delivers more than five times the image resolution compared to traditional D1 (720 x 576) analogue systems and over 20x vs CIF systems (352 x 288). Go beyond analogue, capture fine detail and ensure you have usable evidence when it matters most.

Suggested Products

Suggested product image
HDCVI to HDCVI / HDMI / VGA / Composite Video Converter
VSCVIDECODER

Links and Downloads

CVR4V3 Product Brochure (PDF) 0.91 MB
CVRxV3 - Quick Installation Guide (PDF) 0.64 MB
HDD Space Calculator 6.17 MB
Smart PSS V2.0 (Mac) 90.05 MB
CVR_Firmware_TypeC_20170417 13.44 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Input
4 channels
Alarm Output
3 channels
Audio Input
4 channel RCA
Audio Output
1 channel RCA
Backup Modes
USB Device / Network
Bit Rate
96~4096Kb/s
Camera Configuration (Coaxial)
4 channels up to 960H/25fps (analogue) / 1080p/12fps (HDCVI)
Camera Configuration (IP)
2 channels up to 1080p/12fps (substitutes coaxial)
Dimensions
325mm x 255mm x 55mm (1U)
Display Resolution
1920× 1080, 1280× 1024, 1280× 720, 1024× 768, 800× 600
Display Split
1 / 4
Ethernet
RJ-45 port (10/100M)
Internal HDD
1 SATA port, up to 4TB
Main Processor
Embedded processor
Max. User Access
128 users
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, P2P, IP Filter
Operating Environment
-10 ~+55°C / 10~90%RH / 86~106kpa
Operating System
Embedded Linux OS
OSD Menu
Camera title, time, video loss, camera lock, motion detection & recording
Power Consumption
10W (without HDD)
Power Supply
DC12V/2A
Privacy Masking
4 rectangular zones per camera
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Record Modes
Manual / Schedule (Regular [Continuous], MD) / Stop
Record Rate
Main: 1080p (1~15fps), 720p (1~25/30fps) / Sub: D1 (1~6/7fps)
Record Resolution
1080p (1920 x 1080) / 720p (1280 x 720)
Remote View
iOS (iPhone, iPad); Android devices, Windows Phone
RS232
N/A
RS485
1 port, for PTZ Control
Search Modes
Time/Date; Motion detection; Exact search (to the second)
Sync Playback
1 / 4
Trigger Events
Recording; PTZ; predefined tour; push video notification; email notification; FTP upload; internal buzzer; and screen tip overlay
Two-way Talk
Reuse channel 1 audio input/output
USB Interface
2 ports (1 Rear), USB2.0
Video Detection
Motion detection (zones: 396 [22 × 18]) / Video loss / Camera blank
Video Input
4 channel BNC
Video Output
1 HDMI / 1 VGA
Video/Audio Compression
H.264 / G.711
Weight
1.5kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
370 mm
Depth
310 mm
Weight
2.70 kg
