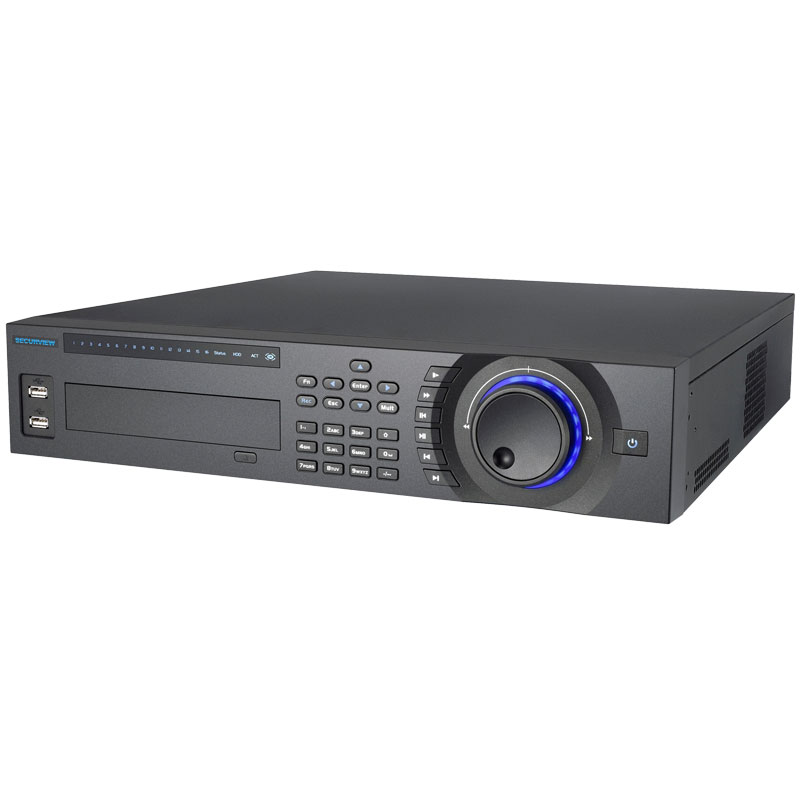

32 Channel Professional 1080p HDCVI Digital Video Recorder

Brand logo
SKU CVR32V2
Brand logo

32 Channel Professional 1080p HDCVI Digital Video Recorder

SKU CVR32V2

Stock may be limited. Please contact us for availability or for an alternative item.

The CVR32V2 is a 32 channel HDCVI (high definition composite video interface) DVR capable of 1080p full HD recording over coaxial cable. It features eight internal SATA ports for up to 80TB of HDD storage and has 2x HDMI, 1x VGA and 1x TV (BNC) video outputs. This DVR also features comprehensive remote view capabilities (iOS, Android & Windows Phone) and backup functionality (USB/network).

Victory Series DVRs are the ideal HD video over coax solution, utilising the HDCVI video transmission standard to deliver video, audio and control data across a single coaxial cable. Thanks to this technology, the CVR32V2 offers reliable, long distance, full HD 1080p video transmission up to 300m with low latency and excellent anti-interference properties (using 75-3 coax).

This Victory Series DVR is compatible with existing analogue and IP surveillance cameras (up to 2.0MP, ONVIF 2.4) and can be implemented into an existing surveillance system without having to re-run cable. This makes analogue-to-HD upgrades and augmenting existing systems easier than ever before. Its interoperability also allows for multi-stage upgrades, making HD surveillance possible for those on a budget.

When recording at 1080p, the CVR32V2 delivers more than five times the image resolution compared to traditional D1 (720 x 576) analogue systems and over 20x vs CIF systems (352 x 288).

Go beyond analogue, capture fine detail and ensure you have usable evidence when it matters most with the Securview Victoy Series.

Suggested Products

Suggested product image
24" LG LCD Monitor
LCDLG24W
Suggested product image
6RU 600mm Deep Wall Mount Data Cabinet
RACKMOUNTCAB6-600W
Suggested product image
2000VA Line-Interactive Tower UPS - 1200W
UPS2000VA
Suggested product image
HDCVI to HDCVI / HDMI / VGA / Composite Video Converter
VSCVIDECODER

Links and Downloads

CVR32V2 Product Brochure (pdf) 0.76 MB
CVR_Firmware_TypeA_20160322 23.25 MB
Smart PSS V2.0 (Mac) 90.05 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Audio Compression
G.711
Audio In/Out
16ch BNC in / 1ch BNC out
Auxiliary
1 x RS232 port (PC comm. & keyboard) / 1 x RS485 (PTZ control) / 1 x RS422 (keyboard)
Backup Modes
USB Device / eSATA Device/ Internal SATA burner / Network
Bit Rate
48~4096Kb/s
Dimensions
440 x 460 x 89mm (2U)
Display Resolution
1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
Display Split
1 / 4 / 8 / 9 / 16 / 25 / 36
Ethernet
2 x RJ-45 port (10/100M/1000M)
Frame Rate
Main: 1080p (1~15fps), 720p (1~25/30fps) / Sub: D1 (1~25/30fps)
Internal HDD
8 SATA ports, up to 80TB / 1 eSATA port, up to 16TB
Main Processor
Embedded Processor
Max. User Access
128 users
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Operating Environment
-10 ~ +55°C / 10 ~ 90%RH / 86~106kpa
Operating System
Embedded Linux OS
OSD Menu
Camera title, time, video loss, camera lock, MD & recording
Power Consumption
40W (without HDD)
Power Supply
100 ~ 240VAC 50/60 Hz
Privacy Masking
4 rectangular zones per camera
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Record Mode
Manual / Schedule (Regular [Continuous], MD) / Stop
Record Resolution
1080p (1920 x 1080) / 720p (1280 x 720)
Remote View
iOS (iPhone, iPad); Android devices, Windows Phone
Search Modes
Time/Date; Motion detection; Exact search (to the second)
Sync Playback
1 / 4 / 8 / 16
Trigger Events
Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; snapshot; internal buzzer; and screen tip overlay
Two-way Talk
1 channel input/output BNC
USB Interface
4 ports (2 Rear), USB2.0
Video Compression
H.264
Video Detection
MD zones: 396 (22 × 18) / Video loss / Camera blank
Video Input
32 channel BNC
Video Output
2 HDMI / 1 VGA / 1 TV (BNC)
Video Type Coax
32 channels up to 1080p/12fps (HDCVI), 960H/25fps (analogue)
Video Type IP
32 channels up to 1080p/12fps (replaces BNC input)
Weight
6.5kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
570 mm
Height
220 mm
Depth
570 mm
Weight
10.90 kg
