General
Main Processor
Embedded Processor
Operating System
Embedded Linux
Video Input

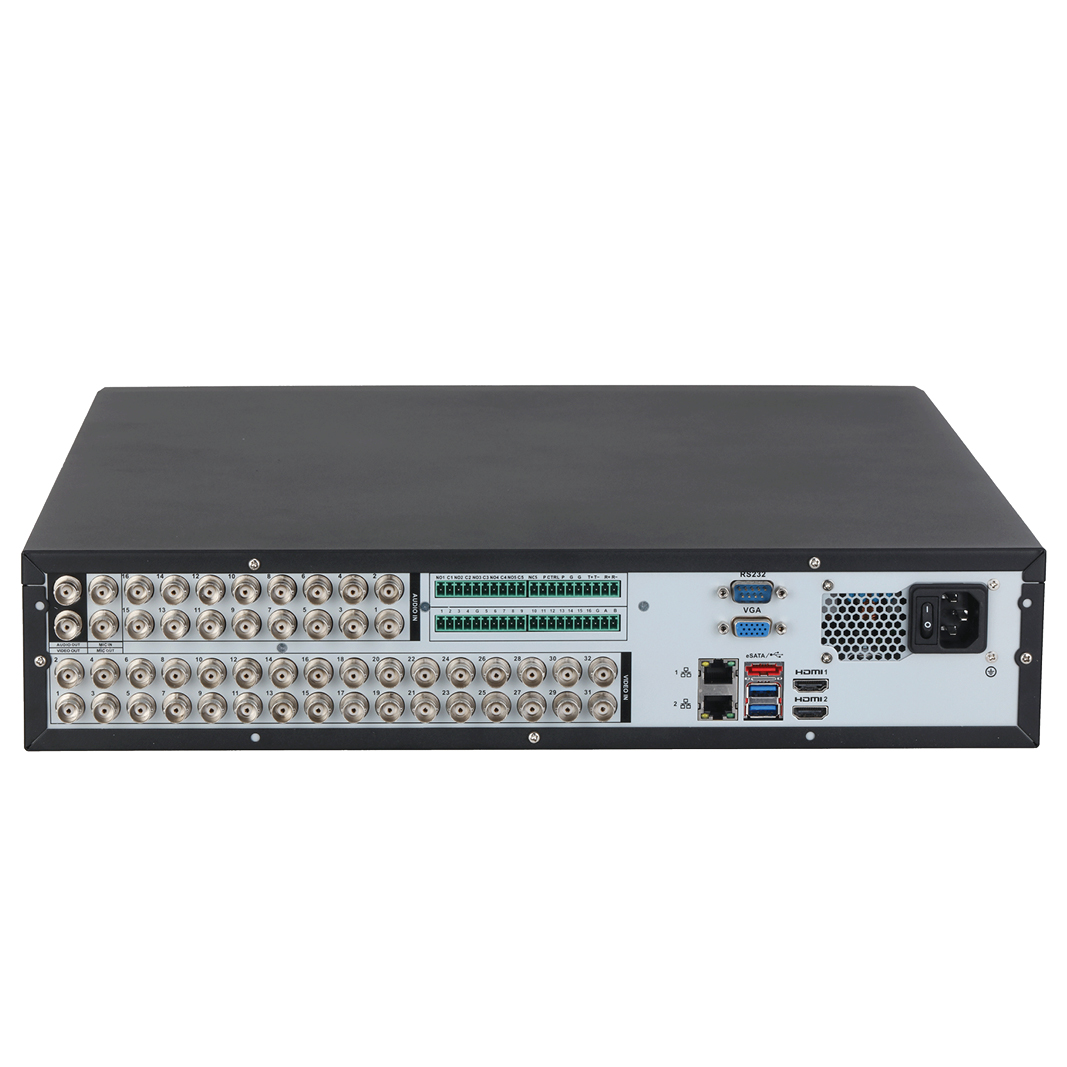

32 channel BNC
Audio In/Out
16 channel input / 1 channel output (BNC)
Two-way Talk
1-channel BNC
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Composite / IP
Coax Input Support
32 channels up to 8.0MP/7fps (HDCVI), 960H/25fps (analogue)
IP Input Support
Substitute up to 32CH coax for IP (No additional IP channels)
IP Input Max. Resolution
8.0MP
IP Input Max. Bandwidth
128Mbps
Display
Video Output
2 HDMI / 1 VGA
Display Resolution
3840 x 2160 to 1280 x 720
Display Split
1/4/8/9/16/25/36
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Maximum Resolution
8.0MP (3840 x 2160) / 4.0MP (2560 x 1440) / 1080p (1920 x 1080)
Frame Rate (Main)
4K (1~7fps); 6.0MP (1~10fps); 5MP (1~12fps); 4MP/3MP (1~15fps) / 1080p (1 ~25fps)
Frame Rate (Sub)
960H (1 ~15fps) / D1 (1~25fps)
Frame Rate (Third)
N/A
Video Compression
AI Coding / H.265+ / H.265 / H.264+ / H.264
Bit Rate
32Kbps ~ 6144Kbps Per Channel
Record Modes
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
AI Functions
AI Functions
Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)
Face Recognition
Performance (Face Recognition)
Max. 12 face pictures per second (modeling and comparing), Approx. 6 channels face recognition (BNC inputs only) (Performance varies depending on camera and resolution)
Stranger Mode
Detect strangers face (not in database)
AI Search (Face Recognition)
Up to 8 target face images at the same time
Database Management
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Database Application
Each database can be applied to video channels independently
Trigger Events (Face Recognition)
Buzzer, Voice Prompts, Email, snapshot, Recording, Alarm Out, PTZ activation, etc.
Perimeter Protection
Performance (Perimeter Protection)
6 Channels, 10 IVS rules for each Channel
AI Search (Perimeter Protection)
Search by target classification (Human, Vehicle)
Object Classification (Perimeter Protection)
Human / vehicle secondary recognition for tripwire and intrusion
Smart Motion Detection (SMD+)
Performance (SMD+)
32 Channels
AI Search (SMD+)
Search by target classification (Human, Vehicle)
Features
Alarm Input / Output
16 channel input / 5 relay output
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback Sync
1/4/9/16/25/32
Search Modes
Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Modes
USB Device / Network
Network
Ethernet
1x RJ-45 port (1000M)
Network Functions
HTTP, HTTPS, IPv4/IPv6, TCP/IP, Wi-Fi, 3G/4G, SNMP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server, P2P, IP Search
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices
Storage
Internal HDD
8 x SATA ports up to 16TB, max. 128TB HDD capacity
USB Interface
4 ports: 2x USB2.0, 2x USB3.0
Auxiliary Inputs
1 x RS485 port (for PTZ)
Environment
Power Supply
12VDC / 5A
Power Consumption
<30W (without HDD)
Operating Environment
-10°C ~ +55°C (+14°F ~ +131°F), 10% ~ 90% RH
Rackmountable
No
Rackmount Units
1RU

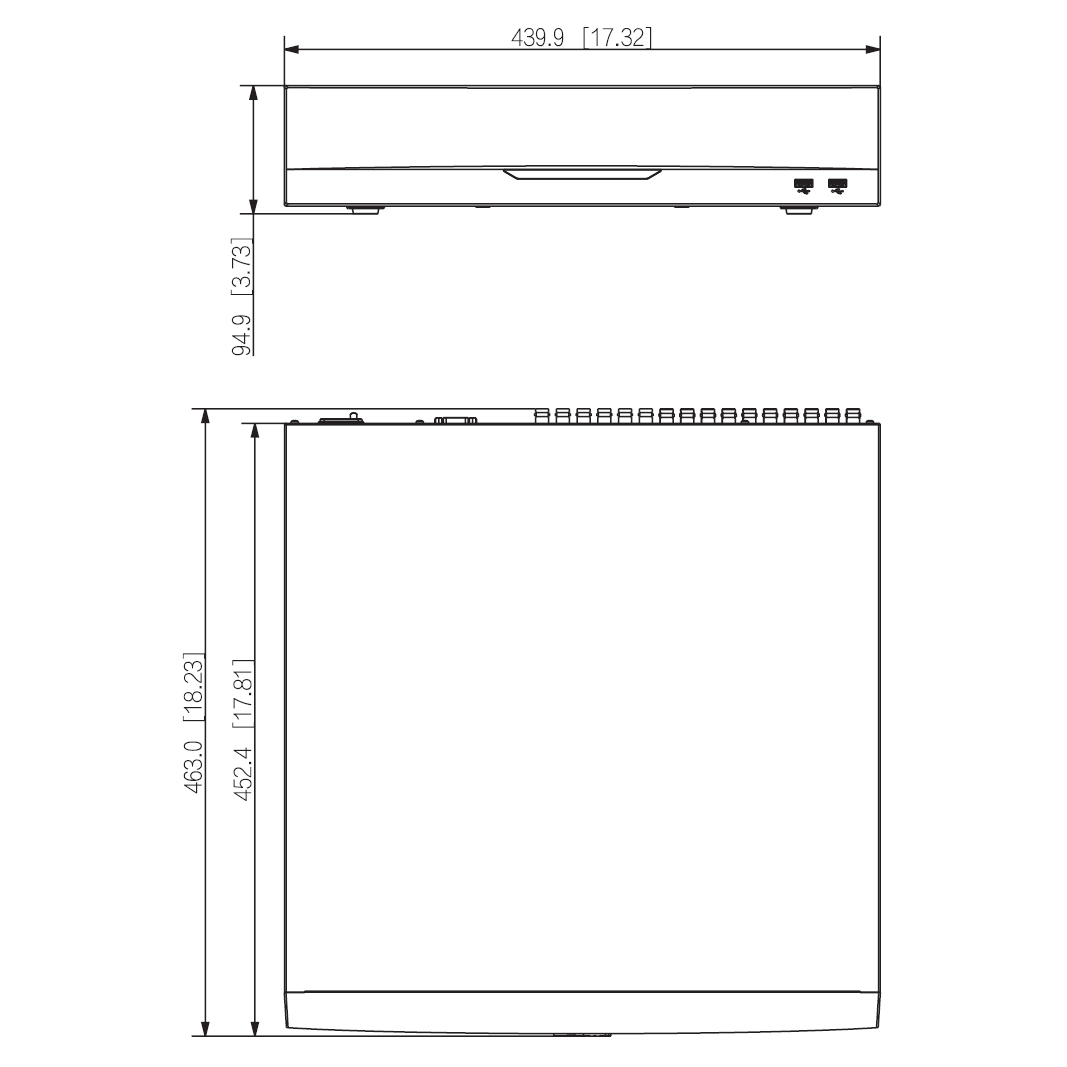

Dimensions
439.9mm × 463mm × 94.9mm
Weight
7kg (without HDD)
Warranty (Years)
4
