16 Channel Professional 1080p HDCVI Digital Video Recorder

Brand logo
SKU CVR16V5
Brand logo

16 Channel Professional 1080p HDCVI Digital Video Recorder

SKU CVR16V5

Stock may be limited. Please contact us for availability or for an alternative item.

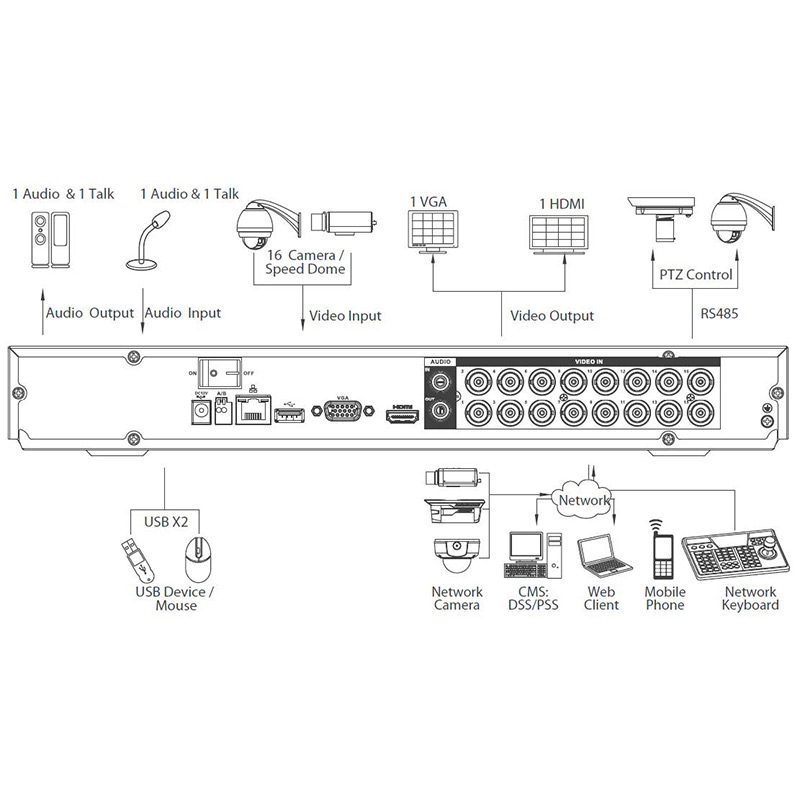

The CVR16V5 is a 16 channel HDCVI (high definition composite video interface) DVR capable of 1080p full HD recording over coaxial cable. It features eight internal 2 ports for up to 20TB of HDD storage and has 1x HDMI, 1x VGA and 1x TV (BNC) video outputs. This DVR also features comprehensive remote view capabilities (iOS, Android & Windows Phone) and backup functionality (USB/network).

Go beyond analogue, capture fine detail and ensure you have usable evidence when it matters most with the Securview Victoy Series.

Product features:
• Tribrid technology ~ compatible with CVI, IP and Analogue cameras
• Records 1080p full HD resolution up to 15fps
• Up to 300m transmission distance (1080p)
• Up to 6TB of HDD capacity per SATA port
• Configure remote view in seconds via QR code
• HDMI & VGA simultaneous video output
• Backup via external USB device or local network
• Remote view for iOS, Android & Windows Phone

Suggested Products

Suggested product image
Professional Series 8 Channel 1080p HDCVI Digital Video Recorder
CVR8V6
Suggested product image
Ultimate Series 1080p WDR Motorised HDCVI Bullet
VSCVI2MPFBIRM100M
Suggested product image
HDCVI to HDCVI / HDMI / VGA / Composite Video Converter
VSCVIDECODER

Links and Downloads

CVR16V5 Product Brochure (pdf) 0.50 MB
Smart PSS V2.0 (Mac) 90.05 MB
CVR_Firmware_TypeL_20170808 14.69 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Audio Compression
G.711
Audio In/Out
4ch RCA in / 1ch RCA out
Auxiliary
1 x RS485 port (for PTZ)
Backup Modes
USB Device / Internal SATA burner / Network
Bit Rate
1~6144Kb/s
Dimensions
375mm x 285mm x 55mm (1U)
Display Resolution
1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Display Split
1 / 4 / 8 / 9 / 16
Ethernet
2 x RJ-45 port (10/100M/1000M)
Frame Rate
Main: 1080p (1~15fps), 720p (1~25/30fps) / Sub: D1 (1~15fps)
Internal HDD
2 SATA port, up to 20TB
Main Processor
Embedded Processor
Max. User Access
128 users
Network Functions
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P
Operating Environment
-10 ~55°C / 10~90%RH / 86~106kpa
Operating System
Embedded Linux OS
OSD Menu
Camera title, time, video loss, camera lock, MD & recording
Power Consumption
15W (without HDD)
Power Supply
DC12V/4A
Privacy Masking
4 rectangular zones per camera
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Record Mode
Manual / Schedule (Regular [Continuous], MD) / Stop
Record Resolution
1080p (1920 x 1080) / 720p (1280 x 720)
Remote View
iOS (iPhone, iPad); Android devices, Windows Phone
Search Modes
Time/Date; Motion detection; Exact search (to the second)
Sync Playback
1 / 4 / 9 / 16
Trigger Events
Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; snapshot; internal buzzer; and screen tip overlay
Two-way Talk
Reuse channel 1 audio input/output
USB Interface
2 ports (1 Rear) USB3.0, (1 Front) USB2.0
Video Compression
H.264
Video Detection
MD zones: 396 (22 × 18) / Video loss / Camera blank
Video Input
16 channel BNC
Video Output
1 HDMI / 1 VGA
Video Type Coax
16 channels up to 1080p/12fps (HDCVI), 960H/25fps (analogue)
Video Type IP
24 channels up to 1080p/25fps (replaces up to 16 x BNC inputs)
Weight
2.35kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
160 mm
Height
460 mm
Depth
360 mm
Weight
3.50 kg
