General
Main Processor
Embedded Processor
Operating System
Embedded Linux
Video Input
16 channel BNC
Audio In/Out
16 / 1, BNC
Two-way Talk
Reuse channel 1 input / output, BNC
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Composite / IP
Coax Input Support
16 channels
IP Input Support
32 channels (16 substitute, 16 additional)
IP Input Max. Resolution
12.0MP
IP Input Max. Bandwidth
128Mbps
Display
Video Output
2 HDMI / 1 VGA / 1 TV (BNC)
Display Resolution
3840 x 2160 to 1280 x 720
Display Split
1 / 4 / 9 / 16
OSD
Camera title, time, video loss, camera lock, motion detection, recording
Recording
Maximum Resolution
8.0MP (3840 x 2160) / 4.0MP (2560 x 1440) / 1080p (1920 x 1080)
Frame Rate (Main)
8.0MP (1~15fps) / 6.0MP (1~20fps) / 5.0MP and lower (1~25fps)
Frame Rate (Sub)
960H (1~15fps) / D1 (1~25fps)
Frame Rate (Third)
N/A
Video Compression
AI Coding / H.265+ / H.265 / H.264+ / H.264
Bit Rate
32Kbps ~ 8192Kbps Per Channel
Record Modes
Manual / Schedule (Regular, Continuous), Motion Detection, Alarm, Stop
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
AI Functions
AI Functions
Face Recognition / Perimeter Protection / Smart Motion Detection (SMD+)
Face Recognition
Performance (Face Recognition)
Max. 12 face pictures per second (modeling and comparing), Approx. 6 channels face recognition (analogue cameras only) (Performance varies depending on camera and resolution)
Stranger Mode
Detect strangers face (not in database)
AI Search (Face Recognition)
Up to 8 target face images at the same time
Database Management
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture.
Database Application
Each database can be applied to video channels independently
Trigger Events (Face Recognition)
Buzzer, Voice Prompts, Email, snapshot, Recording, Alarm Out, PTZ activation, etc.
Perimeter Protection
Performance (Perimeter Protection)
6 Channels, 10 IVS rules for each Channel
AI Search (Perimeter Protection)
Search by target classification (Human, Vehicle)
Object Classification (Perimeter Protection)
Human / vehicle secondary recognition for tripwire and intrusion
Smart Motion Detection (SMD+)
Performance (SMD+)
16 Channels
AI Search (SMD+)
Search by target classification (Human, Vehicle)
Features
Alarm Input / Output
16 channel input / 6 relay output
Trigger Events
Recording; PTZ; tour; push video notification; email notification; FTP upload; snapshot; internal buzzer; and screen tip overlay
Video Detection
MD zones: 396 (22 × 18) / Video loss / Camera blank
Playback Sync
1 / 4 / 9 / 16
Search Modes
Time/Date; Alarm, Motion detection; Exact search (to the second)
Backup Modes
USB Device / eSATA Device / Network
Network
Ethernet
2 x RJ-45 port (10/100M/1000M)
Network Functions
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices
Storage
Internal HDD
8 x SATA ports, up to 10TB each (80TB total)
USB Interface
4 ports: 2x USB2.0, 2x USB3.0
Auxiliary Inputs
1 x eSATA port, 1 x RS485 port (for PTZ), 1 x RS232 port (for PC communication & keyboard)
Environment
Power Supply
100 ~ 240VAC, 50/60 Hz
Power Consumption
<30W (without HDD)
Operating Environment
-10 ~55°C / 10~90%RH
Rackmountable
Yes (included)
Rackmount Units
2RU

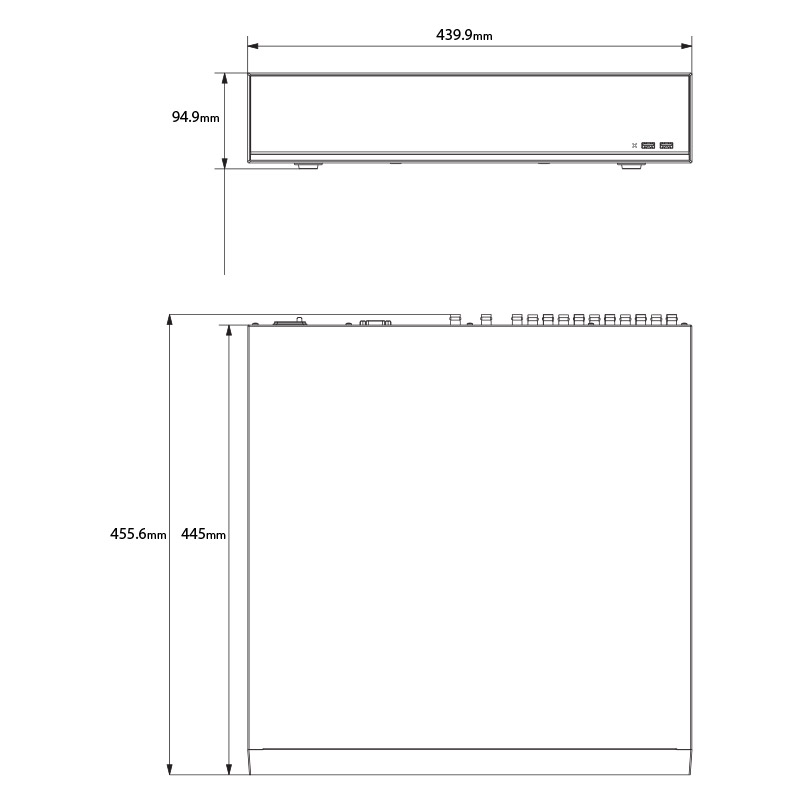

Dimensions
440mm x 463mm x 95mm (2U)
Weight
6.9kg (without HDD)
Other
AI Search (Metadata)
N/A
Face
N/A
Human Body
N/A
Non-motor Vehicle
N/A
Vehicle
N/A
Warranty (Years)
4
