Professional Series 16 Channel 8.0MP HDCVI Digital Video Recorder

Brand logo
SKU CVR16PRO3
Brand logo

Professional Series 16 Channel 8.0MP HDCVI Digital Video Recorder

SKU CVR16PRO3

Stock may be limited. Please contact us for availability or for an alternative item.

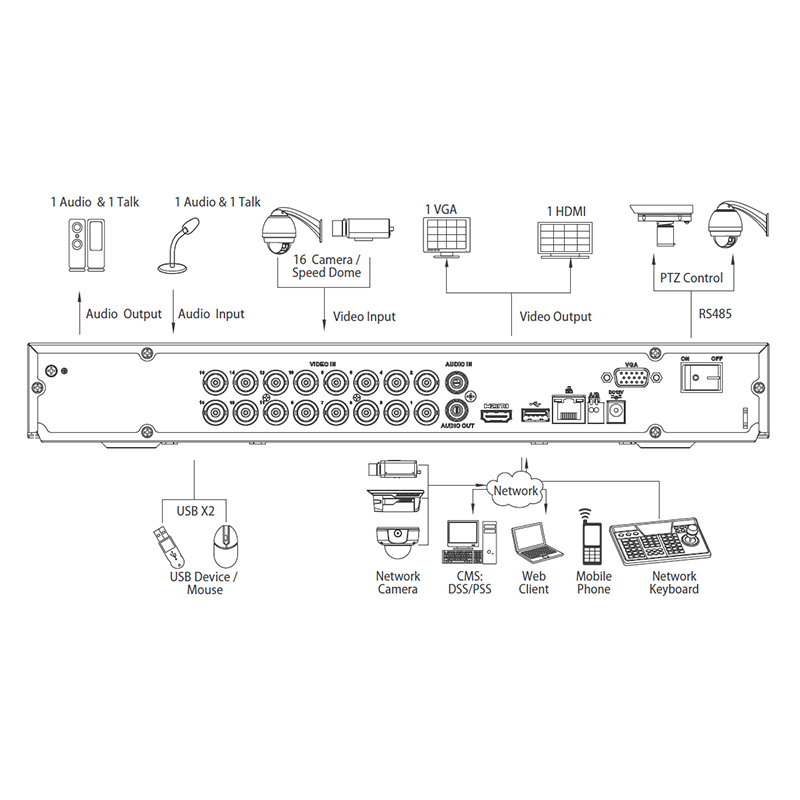

The CVR16PRO3 16 Channel HDCVI DVR delivers Ultra HD broadcast quality surveillance over coax. Rapidly transform low-resolution surveillance into high performing HD CCTV with full support for IP & analogue video inputs, all using existing coaxial cabling.

Product features:
• Records 16 channels up to 8.0MP (3840 x 2160) at 7fps
• H.265 high efficiency video compression
• 2 x SATA ports up to 10TB, max. 20TB HDD capacity
• Support for HDCVI, Analogue and IP video inputs
• Add 8 additional IP channels up to 8.0MP resolution
• Up to 700m video transmission distance over coaxial cable
• Remote view for iOS & Android devices
• HDMI (up to 4K, 3840 x 2160) and VGA simultaneous video output
• Backup via external USB device or local network
• Quiet smart fan auto adjusts with CPU temperature

Suggested Products

Suggested product image
HDMI to VGA Adapter Cable
HDMITOVGA
Suggested product image
600VA Line Interactive UPS - 360W
UPS-A600-L
Suggested product image
HDCVI to HDCVI / HDMI / VGA / Composite Video Converter
VSCVIDECODER
Suggested product image
BNC Video Ground Loop Isolator
VSGLI
Suggested product image
UTC Video Output Controller
VSSELECT101

Links and Downloads

CVRPRO Series DVRs Datasheet (PDF) 0.98 MB
Securview / Watchguard DVR Installation Manual - Q4 2021 (PDF) 3.80 MB
HDCVI DVR Installer Manual v4.0 (PDF) 18.25 MB
CVR_Firmware_Type1L_20221124 47.05 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Video Input
16 channel BNC
Audio In/Out
1 channel input / 1 channel output
Two-way Talk
Reuse channel 1 audio input/output
Internal HDD
2 x SATA ports up to 10TB, max. 20TB HDD capacity
USB Interface
2 ports: 1x USB2.0, 1x USB3.0
Auxiliary Inputs
1 x RS485 port (for PTZ)
Power Supply
12VDC/5A
Power Consumption
<20W
Operating Environment
-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH

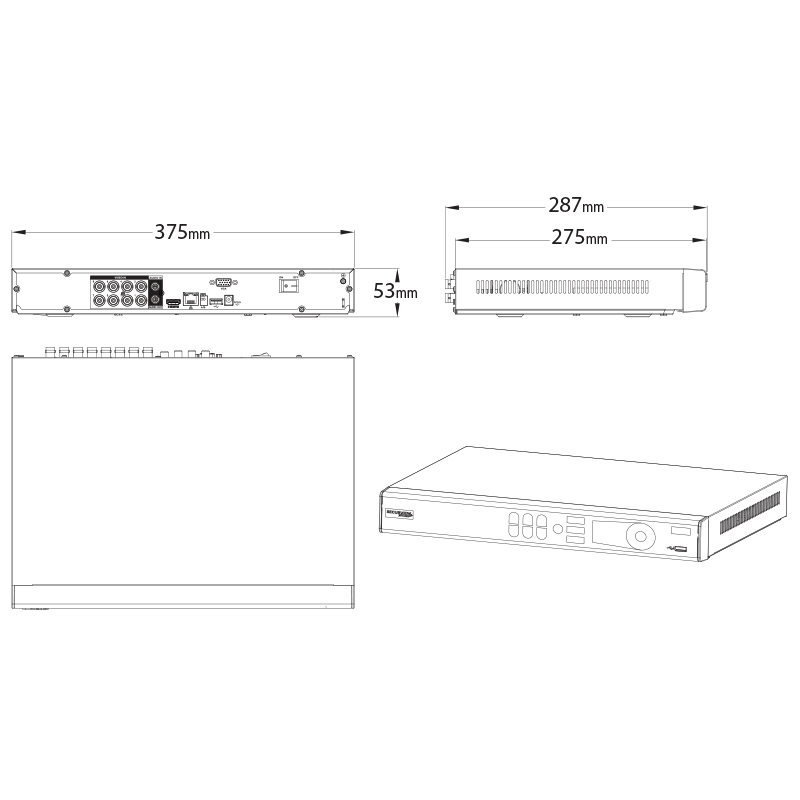

Dimensions
375mm×287mm×53mm
Rackmountable
No
Rackmount Unit
1RU
Weight
1.7kg (without HDD)
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Composite / IP
Coax Input Support
16 channels
IP Input Support
24 channels (16 substitute, 8 additional)
IP Input Max. Resolution
8.0MP
IP Input Max. Bandwidth
96Mbps
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
3840×2160 / 2560×1440 / 1920×1080 / 1280×1024 / 1280×720
Display Split
1/4/8/9/16/25
OSD
Camera title, time, video loss, camera lock, MD & recording
Recording
Maximum Resolution
8.0MP (3840 x 2160) / 4.0MP (2560 x 1440) / 1080p (1920 x 1080)
Frame Rate (Main)
8.0MP (1~7fps) / 5.0MP (1~12fps) / 4.0MP & 3.0MP (1~15fps) / 1080p (1~25fps)
Frame Rate (Sub)
D1 (1~25fps)
Frame Rate (Third)
N/A
Video Compression
H.265+/ H.265 / H.264+ / H.264
Bit Rate
32Kbps ~ 6144Kbps Per Channel
Record Modes
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Features
Alarm Input / Output
N/A
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis
Playback Sync
1 / 4 / 9 / 16
Search Modes
Time /Date, Alarm, MD and Exact Search (accurate to second)
Intelligent Functions
Channel 1(IVS Only)Face Detection, Tripwire, Abandoned/Missing Object
Backup Modes
USB Device / Internal SATA burner / Network
Network
Ethernet
1x RJ-45 port (1000M)
Network Functions
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
140 mm
Height
435 mm
Depth
360 mm
Weight
3.00 kg
