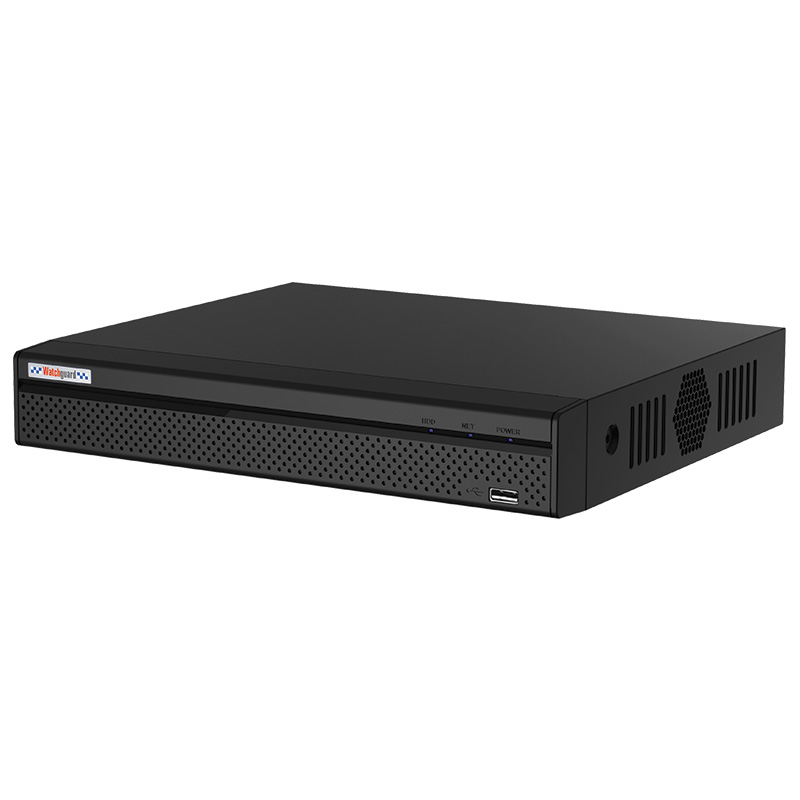

Entry Series 16 Channel 720p HDCVI Digital Video Recorder

Brand logo
SKU CVR16ENT
Brand logo

Entry Series 16 Channel 720p HDCVI Digital Video Recorder

SKU CVR16ENT

Stock may be limited. Please contact us for availability or for an alternative item.

The Watchguard™ Compact Series feature extensive compatibility for HD over coax with support for HDCVI, HDTVI, AHD, Analogue and IP video inputs, making it perfect for both new and retrofit CCTV installations.

Product features:
• Record up to HD 720p (1280 x 720) at 15fps
• H.265 encoding for efficient storage & streaming
• 1 x SATA port for up to 10TB total HDD capacity
• Add 2 additional IP channels up to 6.0MP resolution
• Configure remote view in seconds via QR code
• 1 x HDMI & 1 x VGA simultaneous video output
• Backup via external USB device or local network
• Remote view for iOS & Android devices
• Quiet smart fan auto adjusts with CPU temperature

Suggested Products

Suggested product image
1TB SkyHawk Surveillance Hard Disk Drive
HD1TBSV
Suggested product image
Compact Series 720p Fixed HDCVI Mini Dome
VSCVI1MPDIRV4
Suggested product image
Compact Series 720p Fixed HDCVI Mini Bullet
VSCVI1MPFBIRV2
Suggested product image
BNC Video Ground Loop Isolator
VSGLI

Links and Downloads

Watchguard CVRENT Datasheet (PDF) 0.71 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
VIP Vision / Watchguard Mobile App Quick Start Guide (PDF) 2.57 MB
CVR_Firmware_Type1J_20200228 44.70 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux OS
Video Input
16 channel BNC
Audio In/Out
1 channel input / 1 channel output
Two-way Talk
Reuse channel 1 audio input/output
Internal HDD
1 SATA port, up to 10TB
USB Interface
2 ports (1 Rear), USB2.0
Auxiliary Inputs
1 x RS485 port (for PTZ)
Power Supply
DC12V/2A
Power Consumption
<10W (without HDD)
Operating Environment
-10°C ~ +55°C (+14°F ~ +131°F), 10%~ 90% RH
Dimensions
260mm x 238mm x 48mm (1U)
Rackmountable
No
Rackmount Unit
Compact 1RU
Weight
1.0kg (without HDD)
Cross Compatibility
Supported Video Inputs
HDCVI / HDTVI / AHD / Composite / IP
Coax Input Support
16 channels
IP Input Support
18 channels (16 substitute, 2 additional)
IP Input Max. Resolution
6.0MP
IP Input Max. Bandwidth
72Mbps
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Display Split
1 / 4 / 8 / 9 / 16
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Maximum Resolution
1.0MP (1280 x 720)
Frame Rate (Main)
720p (1~25fps) - 1st channel only, 720p (1~15fps)
Frame Rate (Sub)
CIF (1~7fps)
Frame Rate (Third)
960H (1~25fps)
Video Compression
H.265/H.264
Bit Rate
32Kbps ~ 4096Kbps Per Channel
Record Modes
Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Features
Alarm Input / Output
N/A
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Playback Sync
1 / 4 / 9 / 16
Search Modes
Time /Date, Alarm, MD and Exact Search (accurate to second)
Intelligent Functions
Motion detection
Backup Modes
USB Device / Network
Network
Ethernet
RJ-45 port (10/100M)
Network Functions
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access
128 users
Remote View
iOS (iPhone, iPad); Android devices
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
340 mm
Height
90 mm
Depth
310 mm
Weight
1.50 kg
