16 Channel 720p HDCVI Compact Surveillance Kit (8 Domes, 8 Bullets)

Brand logo
SKU CVR16COMPACK
Brand logo

16 Channel 720p HDCVI Compact Surveillance Kit (8 Domes, 8 Bullets)

SKU CVR16COMPACK

Watchguard™ Compact Series HDCVI Kits are cost-effective, ready-to-install surveillance systems, ideal for homes and small businesses. Achieve twice the image resolution of traditional D1 analogue with these all-in-one surveillance packages.

This kit includes a compact 16 channel DVR with a pre-installed 4TB surveillance hard drive and sixteen 1.0MP HDCVI cameras with infrared for surveillance in total darkness. The system is capable of 720p HD (1280 x 720) recording at 15fps, nearly double the resolution of traditional D1 resolution analogue systems (720 x 576).

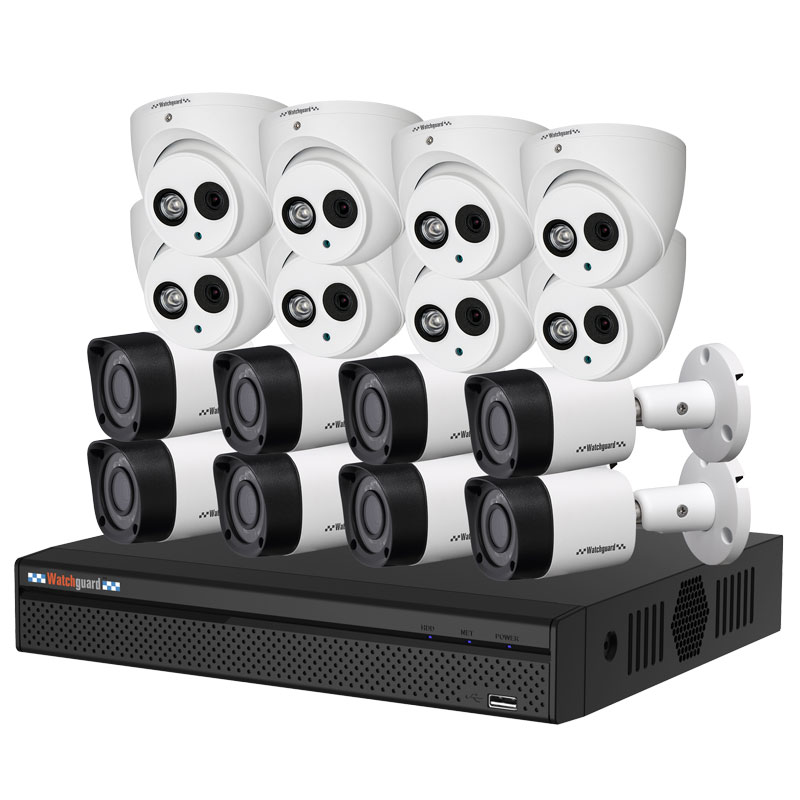

Package includes:
• 1 x 16 Channel Compact DVR capable of recording 720p at 15fps
• 1 x Pre-installed 4TB surveillance hard disk drive
• 8 x 1.0MP 50m infrared 3.6mm fixed lens dome cameras
• 8 x 1.0MP 20m infrared 3.6mm fixed lens bullet cameras
• Video/power camera leads: 8 x 10m, 4 x 20m, 4 x 30m
• 1 x 1.5m CAT5 patch cable for networking
• 2 x 12VDC 5A power supply
• 2 x 8-way power splitter
• 1 x 1m HDMI cable for video output
• 1 x USB Mouse

Suggested Products

Suggested product image
Compact Series 16 Channel 720p HDCVI Digital Video Recorder
CVR16EV3
Suggested product image
19" Acer 1366 x 768 LCD Monitor (TN)
LCDACER19
Suggested product image
12VDC 10A 18CH Surveillance Power Supply with Battery Backup
PS12VDC10A18CHB
Suggested product image
HDMI to HDCVI Video Converter
VSCVIENCODER

Links and Downloads

CVRxCOMPACK Series Product Brochure (PDF) 1.38 MB
Smart PSS V2.0 (Mac) 90.05 MB
HDCVI DVR Installer Manual v4.0 (PDF) 18.25 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Alarm Input/Output
N/A
Audio Input/Output
1/1
Backup Modes
USB Device / Network
Bit Rate
1~6144Kb/s
Camera Configuration (Coaxial)
16 channels up to 720p/15fps (HDCVI, HDTVI, AHD), 960H/30fps (analogue)
Camera Configuration (IP)
18 channels up to 5MP (replaces up to 16 x BNC inputs)
Dimensions
260mm x 220mm x 40mm (1U)
Display Resolution
Configurable from 1920 x 1080 to 1024 x 768
Display Split
1 / 4 / 8 / 9 / 16 / 25
Ethernet
RJ-45 port (10/100M)
Internal HDD
1 SATA port, up to 6TB
Max. User Access
128 users
Operating Environment
-10 ~55°C / 10~90%RH / 86~106kpa
Power Consumption
10W (without HDD)
Power Supply
DC12V/2A
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Record Modes
Manual / Schedule (Regular [Continuous], MD) / Alarm / Stop
Record Resolution
Configurable from 720p (1280 x 720) to CIF (352 x 288)
RS232
N/A
RS485
1 port
Two-way Talk
Reuse channel 1 audio input/output
USB Interface
2 ports: Front USB2.0
Video Detection
MD zones: 396 (22 × 18) / Video loss / Camera blank

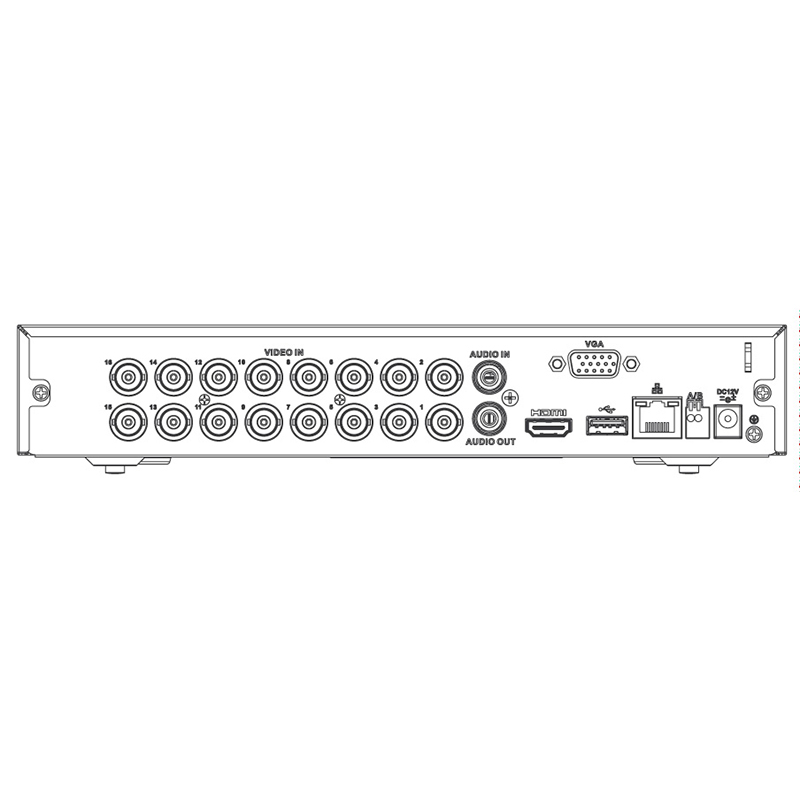

Video Input
16 channel BNC
Video Output
1 HDMI / 1 VGA
Weight
0.75kg (without HDD)
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
90 mm
Height
45 mm
Depth
37 mm
Weight
20.00 kg
