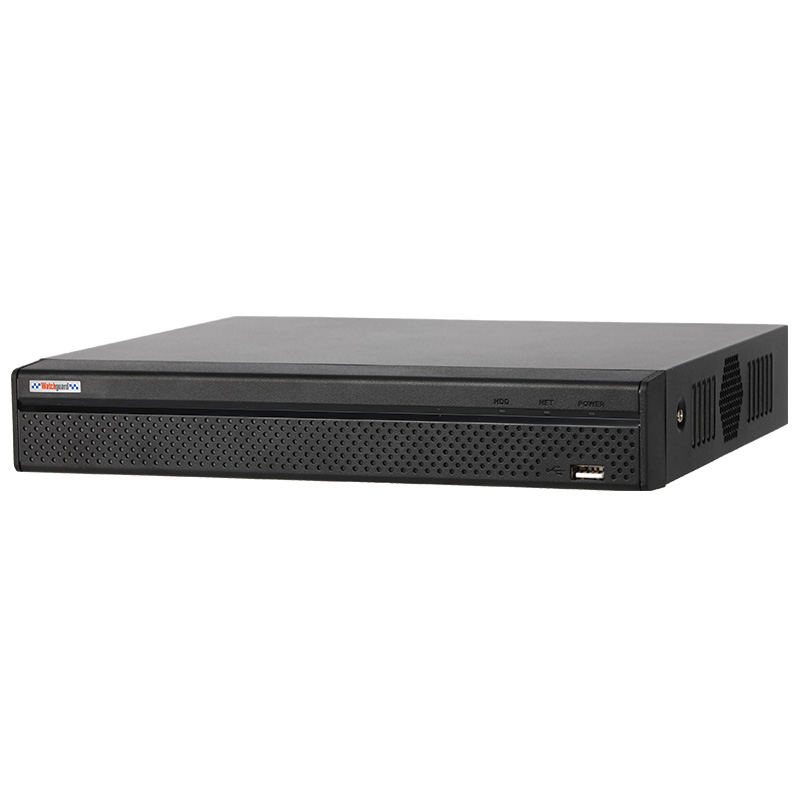

Compact Series 16 Channel 8.0MP HDCVI Digital Video Recorder (4TB HDD Installed)

Brand logo
SKU CVR16COM-4T
Brand logo

Compact Series 16 Channel 8.0MP HDCVI Digital Video Recorder (4TB HDD Installed)

SKU CVR16COM-4T

Available by special order only. Please contact us for lead times.

The CVR16COM 16 Channel DVR sets the standard in HD over coax recording, delivering 4K / Ultra HD broadcast quality with the latest H.265+ video encoding for both impressive resolution and high storage efficiency.

Product features:
• Records 16 channels up to Ultra HD/8.0MP (3840 x 2160) at 7fps
• H.265 encoding for efficient storage & streaming
• Support for HDCVI, HDTVI, AHD, Analogue and IP video inputs
• Up to 700m video transmission distance over coaxial cable
• 1 x SATA ports up to 10TB, max. 10TB HDD capacity
• Configure iOS/Android remote view in seconds via QR code
• HDMI (up to 4K, 3840 x 2160) & VGA simultaneous video output
• Backup via external USB device or local network
• Quiet smart fan auto adjusts with CPU temperature

Links and Downloads

HDCVI DVR Installer Manual v4.0 (PDF) 18.25 MB
HDCVI DVR Quick Start Guide (PDF) 2.88 MB
Watchguard CVRxCOM Series Datasheet (PDF) 0.59 MB
CVR_Firmware_Type1U_20221124 47.05 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Main Processor
Embedded Processor
Operating System
Embedded Linux OS
Video Input
16 channel BNC
Audio In/Out
1 / 1
Two-way Talk
Reuse channel 1 audio input / output RCA
Internal HDD
1 SATA port, up to 10TB total
USB Interface
2 ports: 1 x USB2.0, 1 x USB3.0
Auxiliary Inputs
1 x RS485 port (for PTZ)
Power Supply
12VDC/3A
Power Consumption
<20W (without HDD)
Operating Environment
-10 ~55°C / 10~90%RH
Dimensions
325 x 255 x 55mm (1U)
Rackmountable
Rackmount Unit
Weight
1.3kg (without HDD)
Cross Compatibility
Supported Video Inputs
Coax Input Support
IP Input Support
IP Input Max. Resolution
IP Input Max. Bandwidth
Display
Video Output
1 HDMI / 1 VGA
Display Resolution
3840 x 2160 / 2560 x 1440 / 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
Display Split
1 / 4 / 8 / 9 / 16 / 25
OSD
Camera title, time, video loss, camera lock, MD & recording
Recording
Maximum Resolution
8.0MP (3840 x 2160) / 1080p (1920 x 1080)
Frame Rate (Main)
8.0MP (1~7fps), 4.0MP (1~15fps), 1080p/720p (1~25fps)
Frame Rate (Sub)
960H (1~6fps) / CIF (1~25fps)
Frame Rate (Third)
N/A
Video Compression
H.265+ / H.265 / H.264+ / H.264
Bit Rate
32~6144Kbps per channel
Record Modes
Manual / Schedule (Regular, Continuous), Motion Detection, Alarm, Stop
Record Interval
1~60 min (default: 60 min) / Pre: 1~30s / Post: 10~300s
Features
Alarm Input / Output
N/A
Trigger Events
Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; snapshot; internal buzzer; and screen tip overlay
Video Detection
MD zones: 396 (22 × 18) / Video loss / Camera blank
Playback Sync
1 / 4 / 9 / 16
Search Modes
Time/Date; Alarm; Motion detection; Exact search (to the second); Smart Search
Intelligent Functions
Face Detection, Tripwire, Abandoned/Missing Object
Backup Modes
USB Device / Network
Network
Ethernet
1 x RJ-45 port (1000M)
Network Functions
HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P , IP Search
Max. User Access
128 users
Remote View
iOS (iPhone, iPad), Android devices, Windows Phone
Other
Camera Configurations
Coaxial: 16 channels up to 8.0MP/7fps (HDCVI, HDTVI, AHD), 960H/25fps (analogue) / Network: Add 8 channels up to 8.0MP Max 96Mbps Incoming Bandwidth
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
340 mm
Height
90 mm
Depth
310 mm
Weight
2.20 kg
