Splash Series Double GPO

Brand logo
SKU CS-WPOD10NC
Brand logo

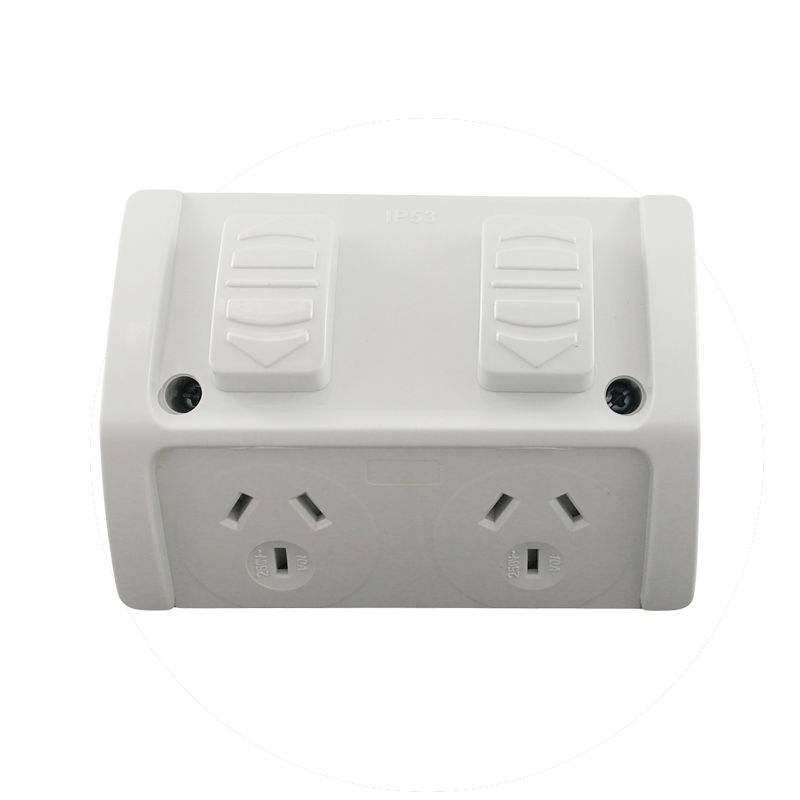

Splash Series Double GPO

SKU CS-WPOD10NC

The Splash Series from Connected Switchgear offer surface mounted socket outlets, designed to provide years of trouble free operation in sheltered conditions. The Splash series range has IP53 weather resistance rating. The switch connections come pre-wired, and line connection is separate to each switch allowing circuit separation. The double GPO is rated at 240C AC 10A and has integrated switching connection.

- Rated Voltage: 250V
- Rated Frequency: 50Hz
- Rated Amperage: 10A
- SAA approved and complies with AS/NZ3133
- IP Protection: IP53
- Compact size: 86mm x 86mm x 65mm
- Large ON and OFF toggles
- Separate switch wiring
- Ample conduit entries in the base (2x25mm plain, 2x20mm plain, 1x25mm and 1x20mm on each side of the box and 1x25mm rear enrty for back wiring).

Links and Downloads

Connected Switchgear Splash Series Datasheet (PDF) 0.54 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Type
Double Power Point
Body Colour
White
Product Series
Splash
Number of Gangs
Box Qty
1
Warranty (Years)
5

Shipping Weight and Dimensions

Includes product packaging

Width
130 mm
Height
90 mm
Depth
95 mm
Weight
0.30 kg
