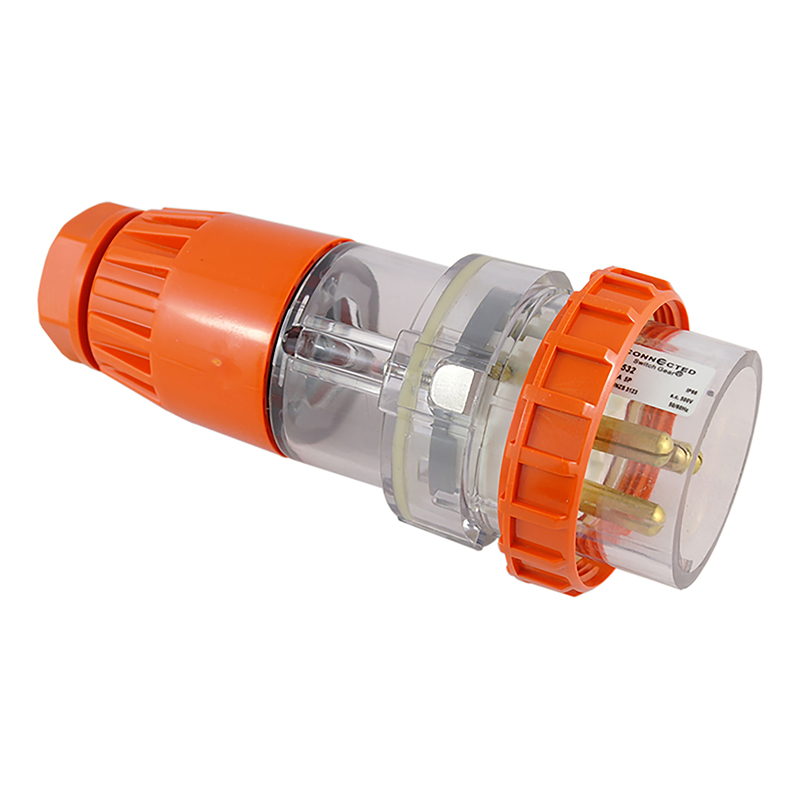

Impact Series Industrial 5-Pin Straight Plug (32A 500V)

Brand logo
SKU CS-P532
Brand logo

Impact Series Industrial 5-Pin Straight Plug (32A 500V)

SKU CS-P532

The Impact Series from Connected Switchgear features industrial strength plugs made from impact and chemical resistant material. The Impact Series plug is fitted with a captive ring to secure sockets to achieve an IP66 weather protection rating.

- 5 pin three phase straight plug
- Transparent impact and chemical resistant housing
- With fitted captive ring for IP66 rated ingress protection
- Internal cable clamp to prevent cable twisting
- Round pin configuration, suitable for a flexible hose
- Minimum cable entry diameter: 10mm², Maximum cable entry diameter: 27mm²
- Minimum terminal capacity: 2.5mm², Maximum terminal capacity: 16mm²
- Rating (Amps): 32A
- Rated Voltage: 500VAC
- Rated Frequency: 50Hz/60Hz
- Operating temp; -40°C - 80°C
- Complies with AS/NZS 3100:2009, AS/NZS 3100:2017, AS/NZS 3112:2011, AS/NZS 3123:2005
- SAA approved

Links and Downloads

Connected Switchgear Impact Series Plugs Datasheet (PDF) 0.23 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Type
5 Pin Straight Plug
Body Colour
Transparent / Orange
Product Series
Impact
Number of Gangs
N/A
Box Qty
1
Warranty (Years)
5

Shipping Weight and Dimensions

Includes product packaging

Width
155 mm
Height
135 mm
Depth
155 mm
Weight
0.40 kg
