Impact Series Single Pole Weatherproof Isolating Switch

Brand logo
SKU CS-ISM120
Brand logo

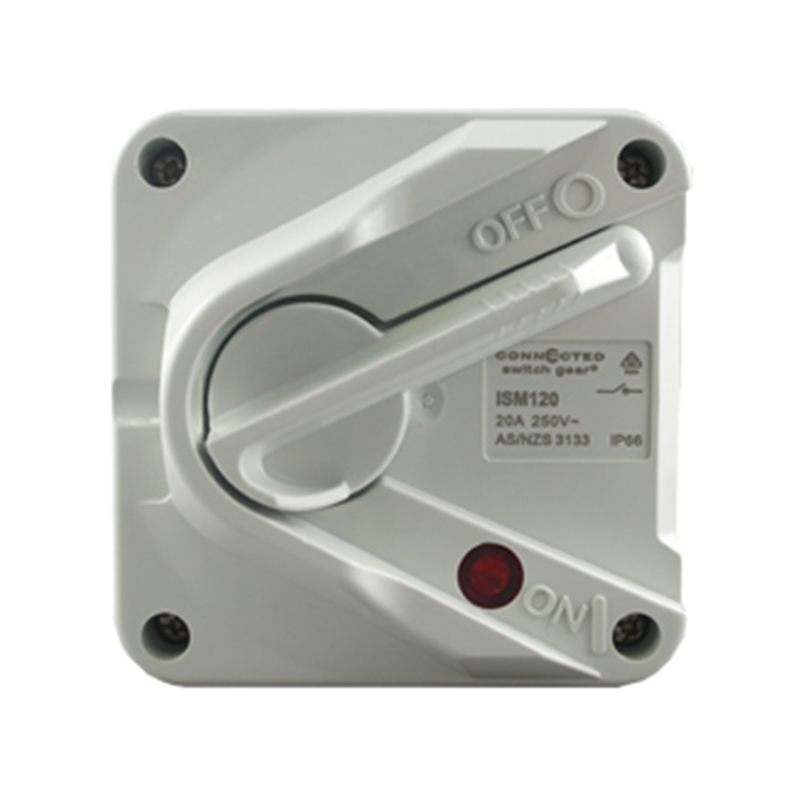

Impact Series Single Pole Weatherproof Isolating Switch

SKU CS-ISM120

The Impact Series from Connected Switchgear features industrial strength disconnectors made from impact and chemical resistant polycarbonate material. The Impact Series is also has IP66 weather protection rating, meaning they are built to withstand extreme weather conditions and are designed for frequent switching. This mini switch is uniquely designed for limited space applications and features lockable ON and OFF toggle identification.

- Rated Voltage: 250V
- Rated Frequency: 50Hz
- Operating temp; -40°C - 80°C
- Complies with AS/NZS3133
- Compact size: 86mm x 86mm x 81mm
- Large rotary handle for easy operation
- Pad-lockable handle, 8mm hole in OFF position
- Ample conduit entries in the base: 2 x 25mm, 2 x 20mm and 1 x 20mm on each side as well as 1 x 25mm rear entry for back wiring.

Links and Downloads

Connected Switchgear Impact Series Datasheet (PDF) 1.22 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Type
Isolating Switch
Body Colour
White
Product Series
Impact
Number of Gangs
Box Qty
1
Warranty (Years)
5

Shipping Weight and Dimensions

Includes product packaging

Width
90 mm
Height
90 mm
Depth
90 mm
Weight
0.24 kg
