5kW Hybrid Solar Power Inverter

Brand logo
SKU AVOL-GENIUS-IA5
Brand logo

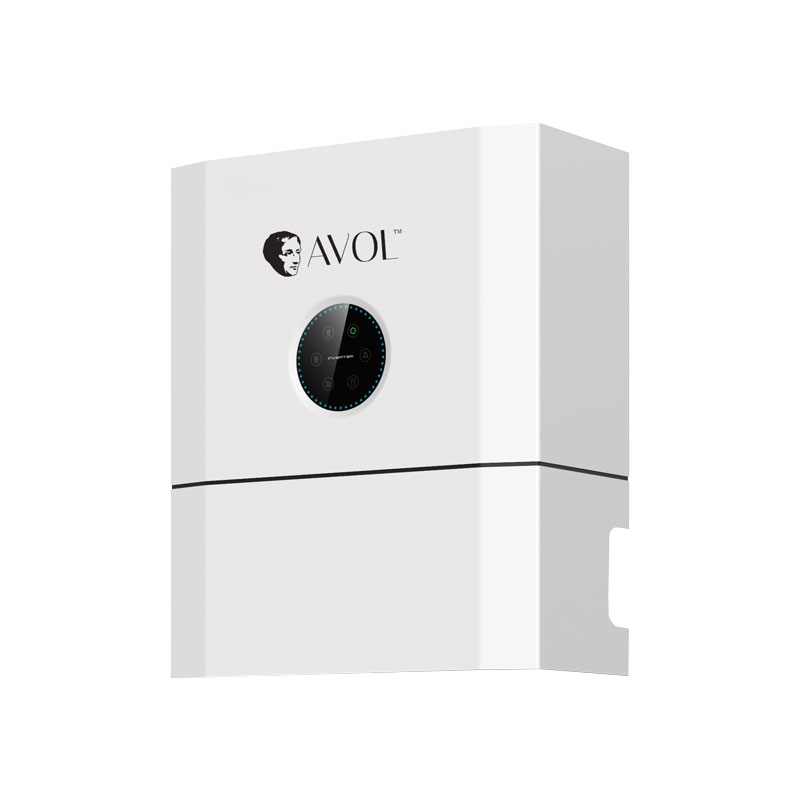

5kW Hybrid Solar Power Inverter

SKU AVOL-GENIUS-IA5

The Genius Series: Single Phase 5kW Hybrid Inverter offers flexibility and simplicity in solar-powered systems and battery storage installations. The hybrid inverter sends DC electricity generated by solar system directly back to the battery, without additional power conversion or equipment, and has a range of features enable full control over energy management.

Features:
• Built-in customised energy management modes (on-grid / off-grid)
• Connects solar energy to household & feeds back into grid
• Power output: 5000W
• High maximum efficiency: 97.6%
• Dual MPPT’s for higher energy harvest
• Remote access - mobile app available

Suggested Products

Suggested product image
5.1kWh LFP Battery Pack
AVOL-GENIUS-BA5
Suggested product image
10kWh Power and Communication Cable
AVOL-GENIUS-EXP0510
Suggested product image
20kWh Power and Communication Cable
AVOL-GENIUS-EXP0520

Links and Downloads

J-Series Solar & Battery Storage Datasheet (PDF) 1.93 MB
AVOL Genius Series Battery Storage System (PDF) 3.04 MB
AVOL Genius Inverter Datasheet (PDF) 4.56 MB
AVOL Genius Inverter User Manual (PDF) 8.34 MB
Inverter Compatibility Statement (PDF) 1.20 MB
AVOL Genius BA Series Operation Manual (PDF) 1.60 MB
All Documents
CE/ RCM Certificate
RoHS Certificate

Specifications

DC Input
Maximum DC Voltage
580V
Nominal Voltage
400V
MPPT Voltage Range
80V - 560V
Number of MPP Tracker
2
Maximum Input Current Per MPPT
15A
AC Output (Grid)
Nominal AC Output Power
5000W
Maximum AC Apparent Power
360VA (from grid)
Maximum AC Output Power
4999W (Australia)
Nominal AC Voltage
230VAC
Max. Output Current
20A
Max. Input Current
32A
THD
<3% at rated power
Battery Input
Battery Type
LFP (LiFePO4)
Nominal Battery Voltage Charging Voltage
48V
Range
40-60V
Maximum Charge / Discharge Current
100A
Battery Capacity
100-400Ah
Charging Strategy for Li-ion Battery
Dependant on the BMS
AC Output (Backup)
Max. Output Apparent Power
5000VA
Max. Output Current (Backup)
20A
Nominal Output Voltage
230V
Nominal Output Frequency
50/60Hz
Output THD
<3% (Linear Load)
Efficiency
Max. PV Efficiency
97.6%
Euro. PV Efficiency
97.0%
Protection
DC Switch
Bipolar DC Switch (125A/Pole)
Anti-islanding Protection
Yes
Output Over Current
Yes
DC Reverse Polarity Protection
Yes
String Fault Detection
Yes
AC/DC Surge Protection
DC Type ll; AC Type Ill
Insulation Detection
Yes
AC Short Circuit Protection
Yes
General
Dimensions
540 x 590 x 240mm
Weight
32kg
Operating Environment
-25° C~ +60° C
Noise (dB)
<25
Cooling Type
Natural Convection
Max. Operation Altitude
2000m
Operation Humidity
0~95% (No Condensation)
IP Class
IP65
Topology
Battery Isolation
Communication
RS485/CAN2.0/WIFl/4G
Display
LCD/APP
Country of Manufacturer
China
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
630 mm
Height
730 mm
Depth
340 mm
Weight
38.00 kg
