5.1kWh LFP Battery Pack

Brand logo
SKU AVOL-GENIUS-BA5
Brand logo

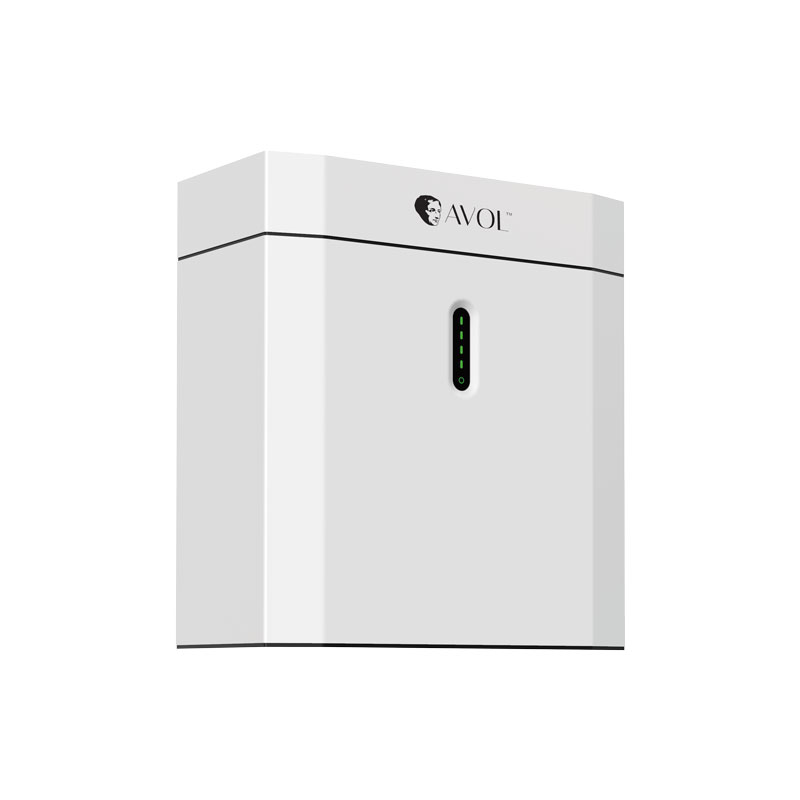

5.1kWh LFP Battery Pack

SKU AVOL-GENIUS-BA5

The Genius Series: 5.1kWh LFP Battery Packs are modular designed to store and provide energy during the day and night when used with a PV system. Lithium Iron Phosphate Batteries (LiFePO4 / LFP) used in the Genius Battery pack features longer life span, zero maintenance, ultra-safe, lightweight, improved charge and discharge efficiency.

Features:
• Modular, robust design delivers excellent levels of safety and performance
• Cells produced by the world’s industry leading partner Contemporary Amperex Technology Co., Limited

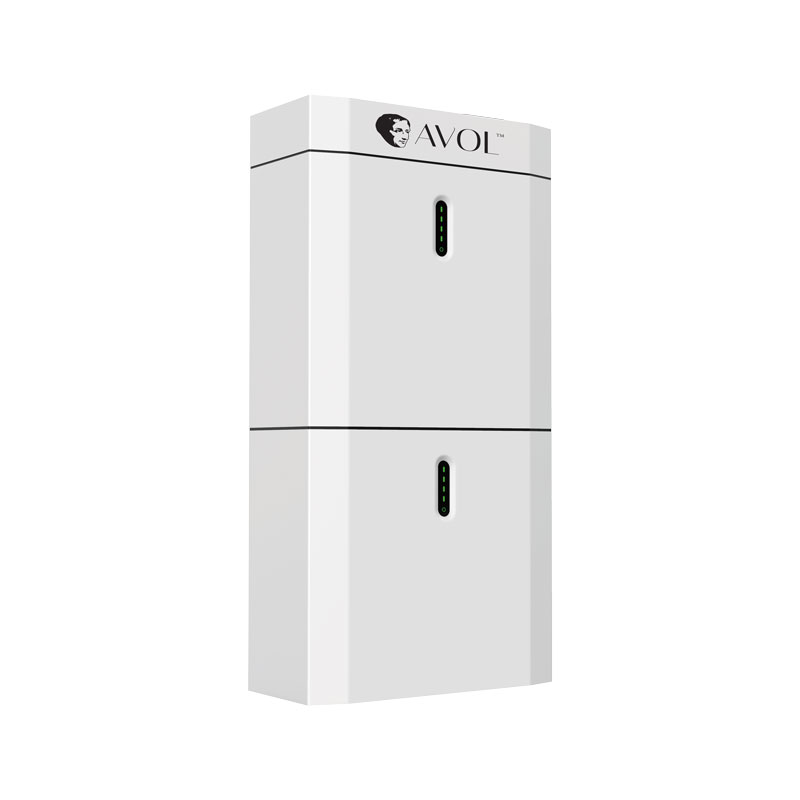

• Up to 4 modules in a single PV system
• Up to 20kWh of energy storage
• 10,000 cycles at 90% depth of discharge
• IP65 weather rated, 5-year warranty

Suggested Products

Suggested product image
10kWh Power and Communication Cable
AVOL-GENIUS-EXP0510
Suggested product image
20kWh Power and Communication Cable
AVOL-GENIUS-EXP0520
Suggested product image
5kW Hybrid Solar Power Inverter
AVOL-GENIUS-IA5

Links and Downloads

J-Series Solar & Battery Storage Datasheet (PDF) 1.93 MB
AVOL Genius Series Battery Storage System (PDF) 3.04 MB
Inverter Compatibility Statement (PDF) 1.20 MB
AVOL Genius Inverter User Manual (PDF) 8.34 MB
AVOL Genius Battery System MSDS (PDF) 0.94 MB
AVOL Genius BA Series Operation Manual (PDF) 1.60 MB
AVOL Genius Inverter Datasheet (PDF) 4.56 MB
AVOL Genius Battery System Datasheet (PDF) 6.50 MB
AVOL Genius Series Warranty (PDF) 5.32 MB
All Documents
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Battery type
Lithium Iron Phosphate (LiFePO4 / LFP)
Weight
54kg
Dimension
540 x 490 x 240mm
IP Protection
IP65
Warranty
5 Years (Product) / 10 Years (Performance)
Country of Manufacturer
China
Electrical
Energy Capacity
5.12kWh
Usable Capacity
4.6kWh
Depth of Discharge (DoD)
90%
Nominal Voltage
51.2V
DC Circuit Breaker
125A
Operating Voltage Range
44.8-56.5V
Internal Resistance
<20mO
Cycle Life
10,000 cycle
Operation
Maximum Charge / Discharge Current
50N80A
Rated DC power
4096W
Max. Charge / Discharge Power
2825W / 4096W
Operating Temperature Range
0 to 50°C charging / -10 to 50°C discharging
Humidity
0~95% (No condensation)
BMS
Modules Connection
Max.4
Capacity
100-400Ah
Power Consumption
<2W
Communication
CAN & RS485
Monitoring Parameters
System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
Warranty (Years)
5

Shipping Weight and Dimensions

Includes product packaging

Width
640 mm
Height
730 mm
Depth
360 mm
Weight
61.00 kg
