Watchguard Force Wireless Magnetic Reed Switch

Brand logo
SKU ALL-RSW2
Brand logo

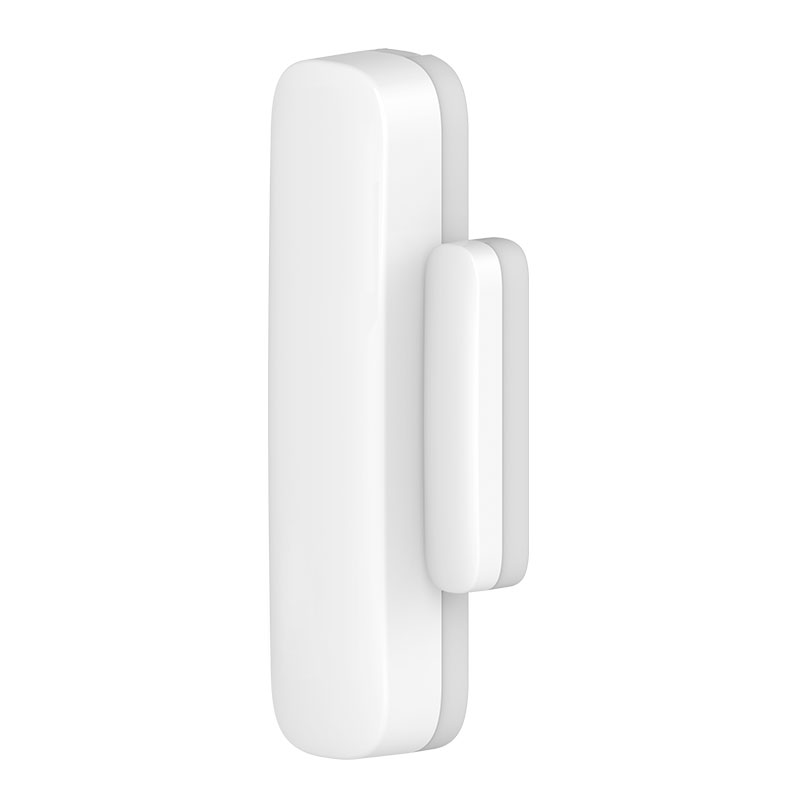

Watchguard Force Wireless Magnetic Reed Switch

SKU ALL-RSW2

The ALL-RSW2 Wireless Magnetic Reed Switch is an alarm built for indoor environments. It can detect the opening / closing of windows and doors.

Product Features:
• Immediate alarm if the magnet and detector are more than 2cm apart
• The magnet must be mounted 1cm or less from the detector
• Tamper switch for vandal protection
• 1.5VDC power supply, requires 1 x AA LR6 battery
• Monitor and receive alerts to your phone with the Smart Life app

Links and Downloads

Specifications

General
Detection Range
N/A
Wireless Transmit Distance
<80m (open area)
Wireless RF Frequency
433MHz
Environment
Power Supply
1.5VDC (1 x AA LR6 battery)
Standby Current
<25μA
Alarm Current
<70mA
Operating Environment
-10°C~55°C / RH <80%
Dimensions
24.5 x 96.5 x 19.5mm (detector) / 14 x 48 x 11mm (magnet)
Other
Magnet Gap
2cm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
60 mm
Height
110 mm
Depth
25 mm
Weight
0.10 kg
