Watchguard Force Wireless PIR Sensor + Reed Switch

Brand logo
SKU ALL-PIR1
Brand logo

Watchguard Force Wireless PIR Sensor + Reed Switch

SKU ALL-PIR1

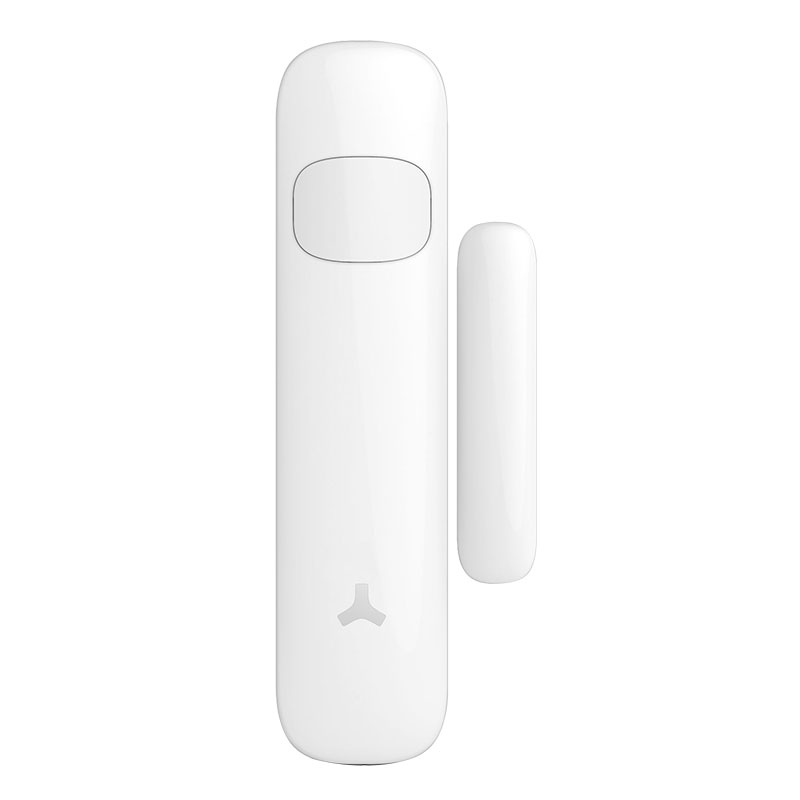

The ALL-PIR1 Wireless PIR Sensor + Reed Switch is an alarm built for indoor environments with a wide angle detection range up to 8m. The ALL-PIR1 combines a PIR motion detector and reed switch, it can detect the opening / closing of windows, doors and human movement.

Product Features:
• Combines PIR sensor and door/window reed switch
• Up to 8m detection range with 90° field of detection
• Features LED light indicator for alarm/battery status
• Tamper switch for vandal protection
• 3VDC power supply, requires 2 x AAAA LR61 batteries
• Up to 12 months of battery life depending on usage
• Monitor and receive alerts to your phone with the Smart Life app

Links and Downloads

Watchguard Force ALL-PIR1 User Manual (PDF) 0.50 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
Detection Range
8m range / 90° angle
Wireless Transmit Distance
<80m (open area)
Wireless RF Frequency
433MHz
Environment
Power Supply
3VDC (2 x AAAA LR61 batteries)
Standby Current
<50μA
Alarm Current
<39mA
Operating Environment
-20°C~55°C / RH <80%
Dimensions
21 x 90 x 18mm (detector) / 10 x 45 x 11mm (magnet)
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
25 mm
Height
110 mm
Depth
60 mm
Weight
0.05 kg
