Watchguard Force Wireless Solar Powered IR Multi-Beam Sensor

Brand logo
SKU ALL-BEAM1
Brand logo

Watchguard Force Wireless Solar Powered IR Multi-Beam Sensor

SKU ALL-BEAM1

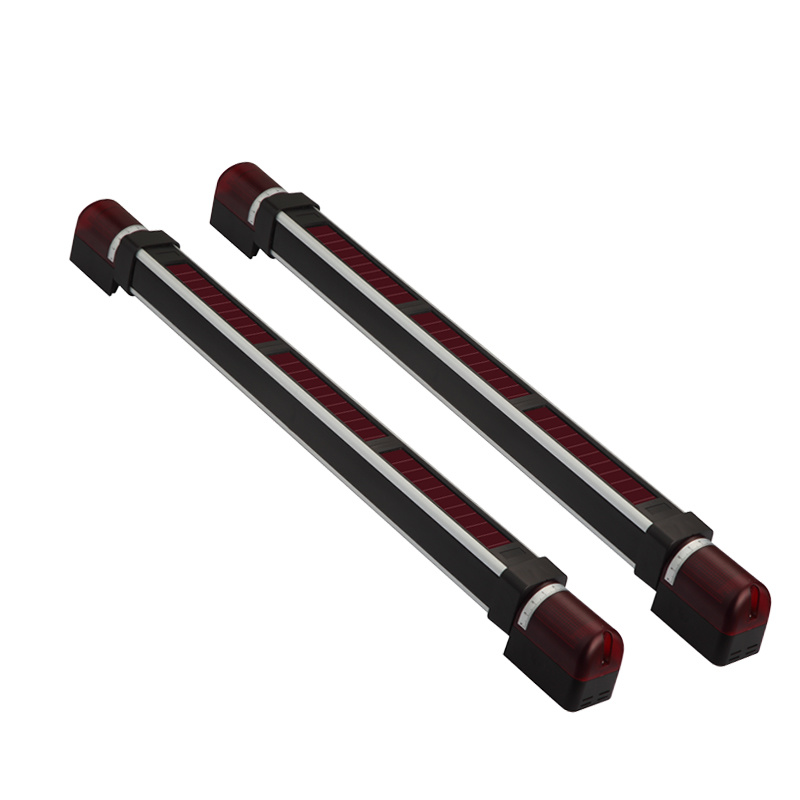

The ALL-BEAM1 Wireless Solar Powered IR Multi-Beam Sensor detects intrusion by creating a curtain of 4 x invisible infrared beams, this sensor is also powered via built-in solar panels. It is ideal for use on fences, balconies, garage doors and more.

Product features:
• Maximum outdoor detection range up to 20m
• Wireless transmission distance to Force alarm panel up to 100m
• Solar powered via built-in solar panels
• LiFepO4 battery
• Compact design, dimensions: 662 x 46 x 60mm
• Monitor and receive alerts to your phone with the Smart Life app

Links and Downloads

Watchguard Force ALL-BEAM1 User Manual (PDF) 0.45 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

General
No. Infrared Beams
4 beams
Infrared Light Wave Length
940mm ± 20mm
Max. Alarm Times
50 (per 24hrs)
Wireless RF Frequency
433.92MHz (±75KHz)
Wireless Transmit Distance
<100m (open area)
Solar Electric Panel Output
4-beam grating >1.5mA at 1800lx
Battery Type
LiFepO4 batter
Battery Capacity
Transmitter: 500mAh / Receiver: 1000mAh
Static Current
Transmitter: <0.5mA / Receiver: <0.3mA
Environment
Operating Voltage
3.3V
Operating Environment
-25°C~65°C
Dimensions
662 x 46 x 60mm
Warranty (Years)
1

Shipping Weight and Dimensions

Includes product packaging

Width
130 mm
Height
720 mm
Depth
75 mm
Weight
1.60 kg
