360° Ceiling Mounted PIR Detector

Brand logo
SKU ALH-PIR360
Brand logo

360° Ceiling Mounted PIR Detector

SKU ALH-PIR360

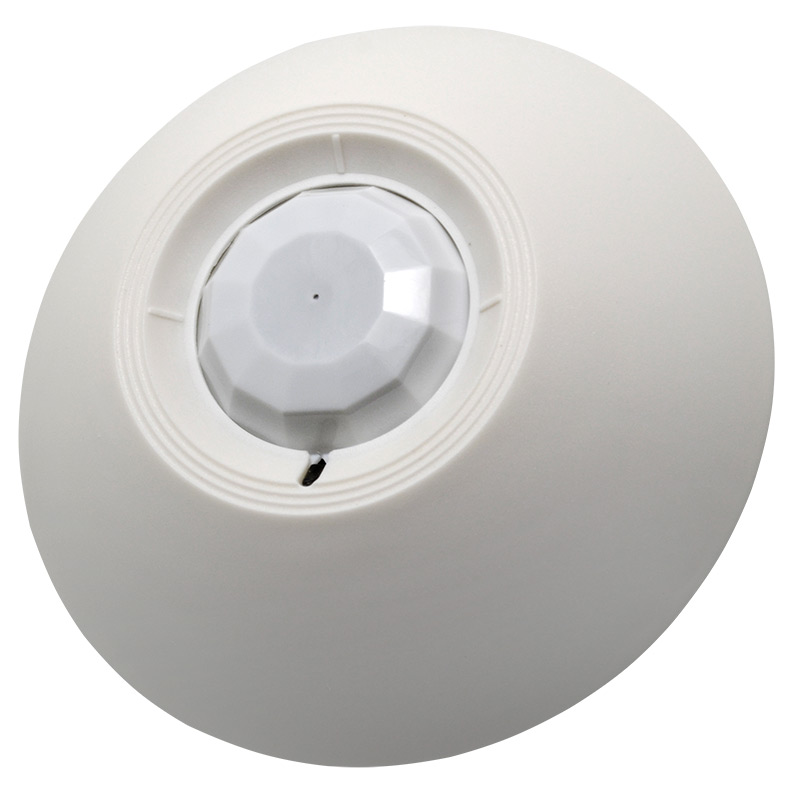

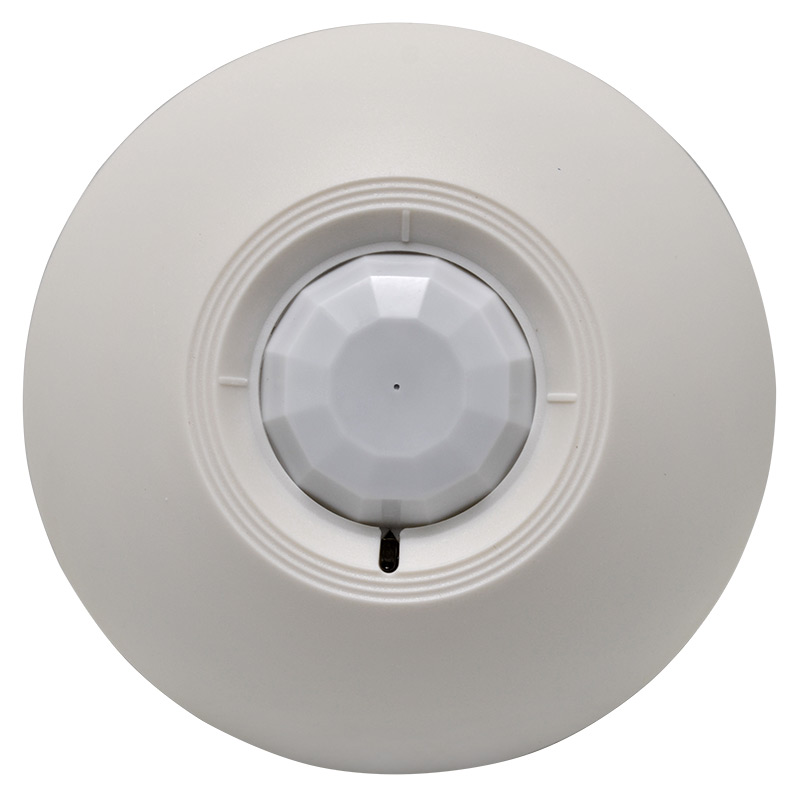

This ceiling mounted passive infrared motion detector has a detection range up to 8m (4.5m high) and 360° field of detection. False alarms are prevented with the dual element infrared sensor and auto temperature compensation.

Product features:
• Detection range up to 8m
• Adjustable pulse count
• Alarm output: N.C
• Installation height: 2.2 to 4.5m
• Operating temperature: -10°C ~ +50°C
• Max voltage: 15VDC

*There is no tamper switch on this PIR sensor

Suggested Products

Suggested product image
360° PIR Sensor
PIR-T68R
Suggested product image
Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864

Links and Downloads

ALH-PIR360 Manual (PDF) 0.27 MB
CE/ RCM Certificate
RoHS Certificate

Specifications

Type
Motion Sensor
Warranty (Years)
2

Shipping Weight and Dimensions

Includes product packaging

Width
120 mm
Height
230 mm
Depth
150 mm
Weight
0.14 kg
