4x Beam Hardwired IR Motion Detector

SKU ALE-PIRB

4x Beam Hardwired IR Motion Detector

SKU ALE-PIRB

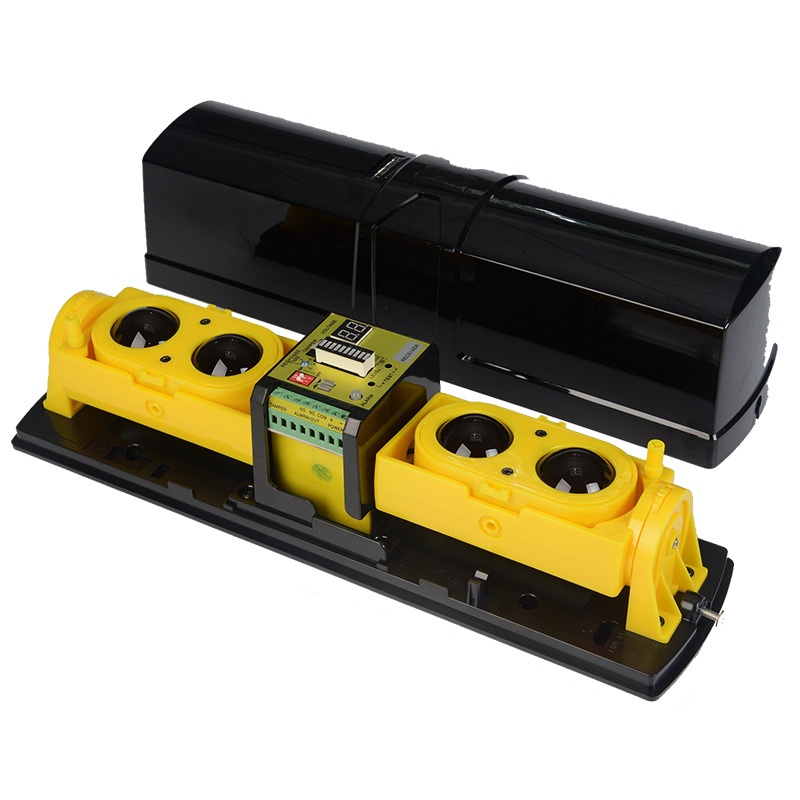

This 100m photoelectric detector uses 4 pulsed infrared beams that are designed to activate an alarm only when 4 beams are simultaneously blocked.
The robust IP55 housing of the four photoelectric detectors is designed to provide reliable perimeter security both indoors and out. The transmitters emit invisible infrared beams to the receiver with changing frequencies to protect beams from disturbance.

Product features:
• Outdoor detection range up to 100m
• Anti-electromagnetic interference capability, suitable for substations, wireless base stations.
• Adjustable induction speed and alarm trigger time 35-700msec
• Optical adjustment angle (H)180° ±90° (V) 20° ±10°
• Ingress protection: IP55
• Dimensions: 370 x 101 x 96mm

Suggested Products

360° Ceiling Mounted PIR Detector
ALE-PIR360

Solar Powered Outdoor Wireless PIR
ALE-PIRWS

PIR with Glass and Shock Detection
ALH-PIRGS

Watchguard Professional 8 Zone Alarm Panel & LCD Keypad - Expandable to 64 Monitored Zones
WGAP864

Links and Downloads

ALE-PIRB Brochure (PDF) 1.11 MB

ALE-PIRB Manual (PDF) 1.13 MB

CE/ RCM Certificate

RoHS Certificate

Specifications

Alarm Output

Relay output NC/NO optional:AC/DC 30V 0.2A max

Alarm Period

Beam

Case Material

Certificate

CE certificated

Contact Capacity

AC/DC 30V 0.2A max

Detection

Infrared beam, interruption alarm

Dimensions

370 x 101 x 96mm

Interruption Time

35-700ms (optional)

Operating temperature

-25°C~+55°C

Power

12-24VDC

Tamper Switch

NC, opens when cover is removed

Type

Motion Sensor

Waterproof Grade

IP55

Working Current

105mA max

Warranty (Years)

Shipping Weight and Dimensions

Includes product packaging

Width

85 mm

Height

360 mm

Depth

90 mm

Weight

2.30 kg
